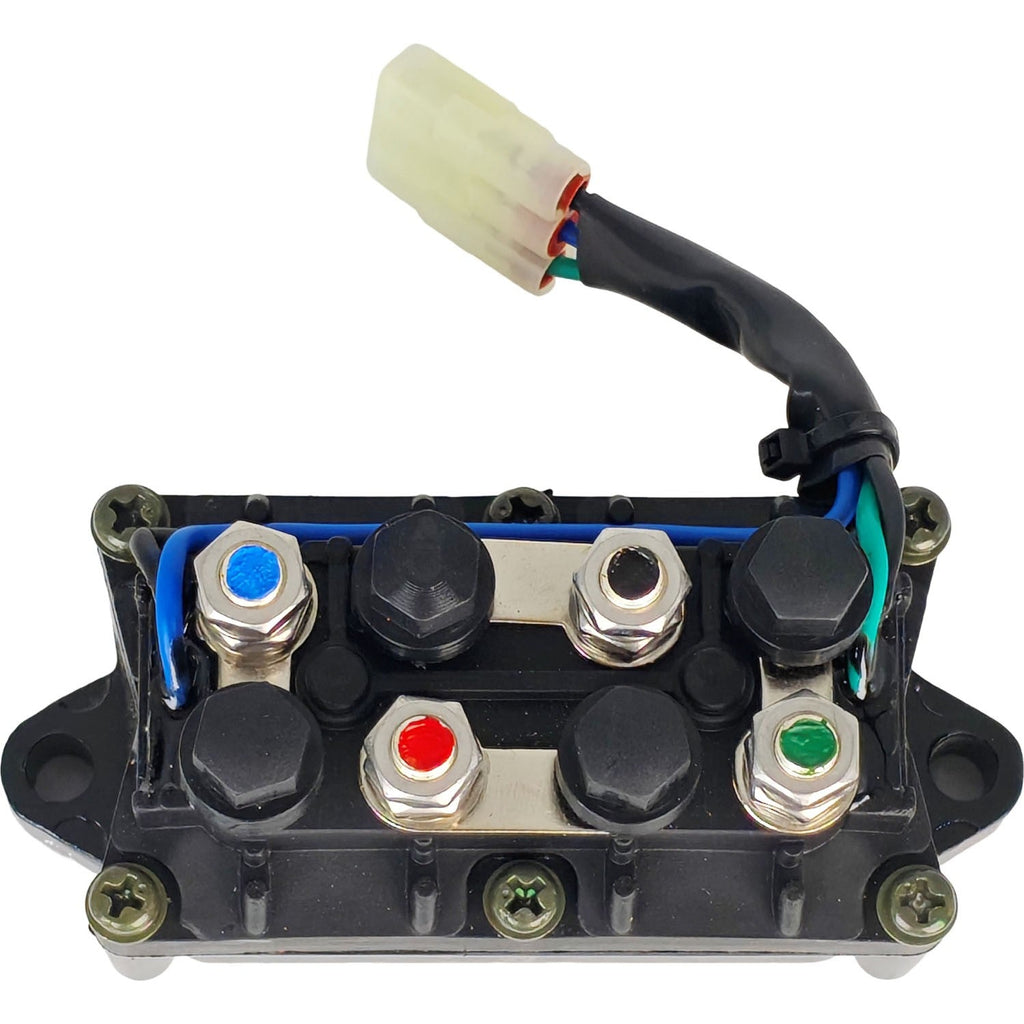

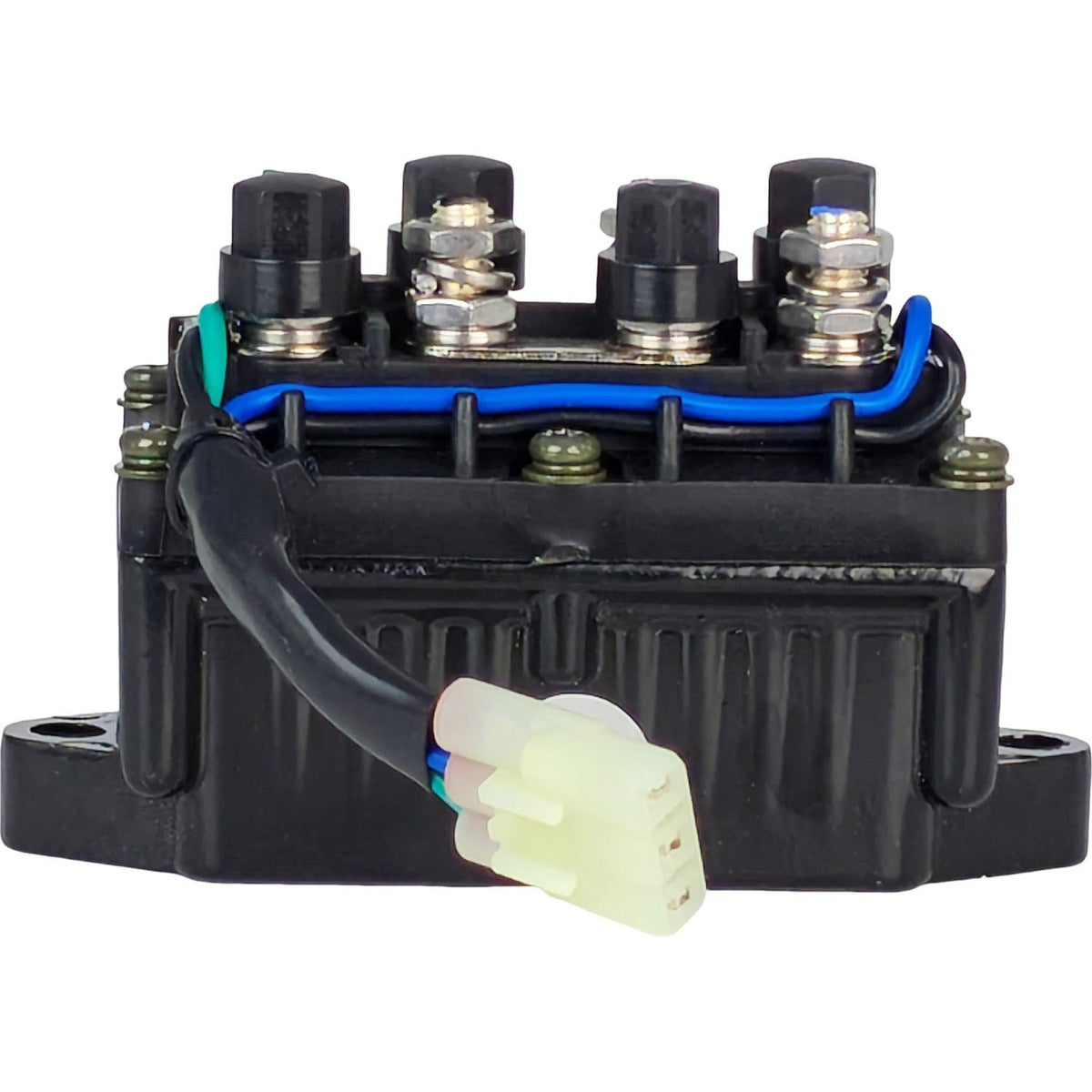

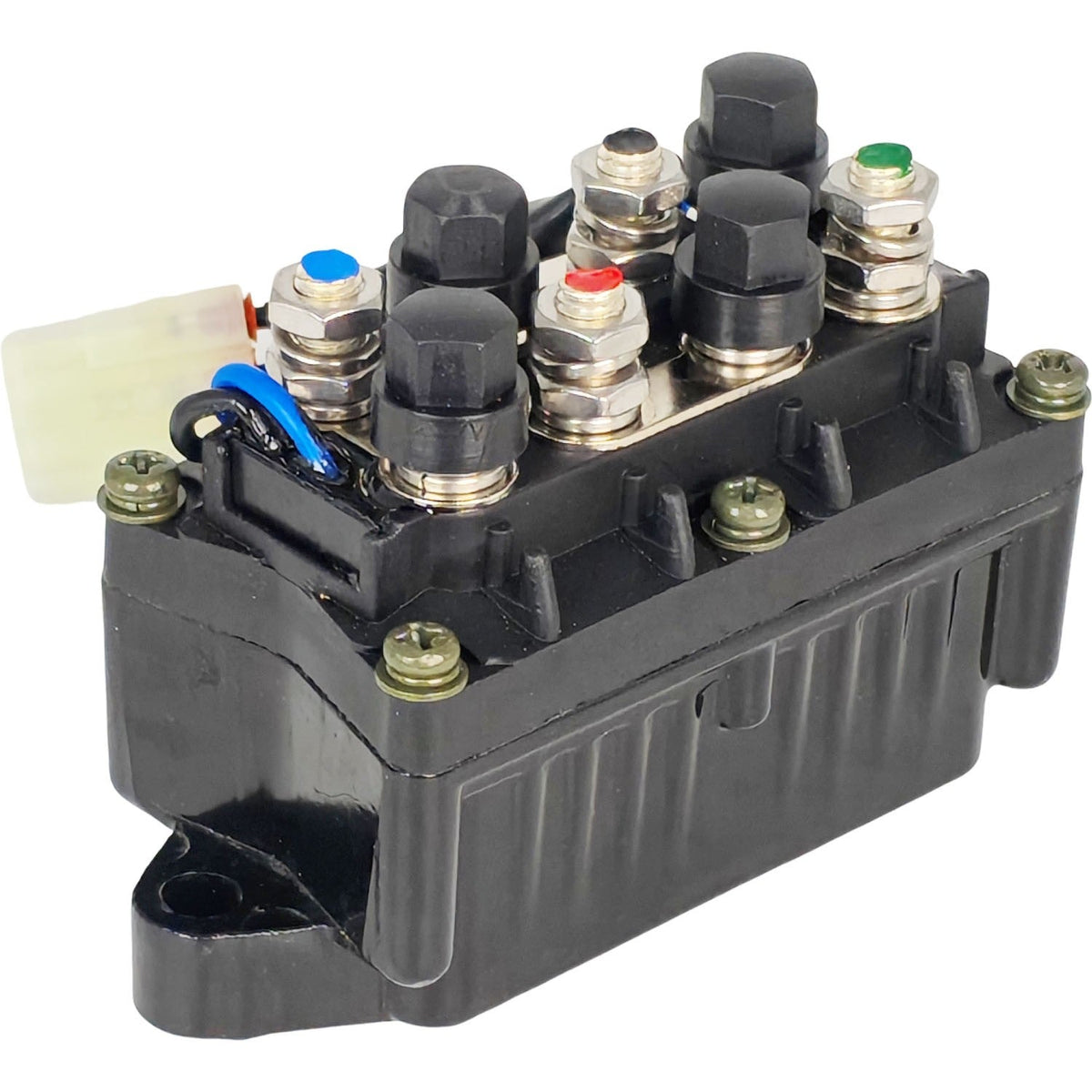

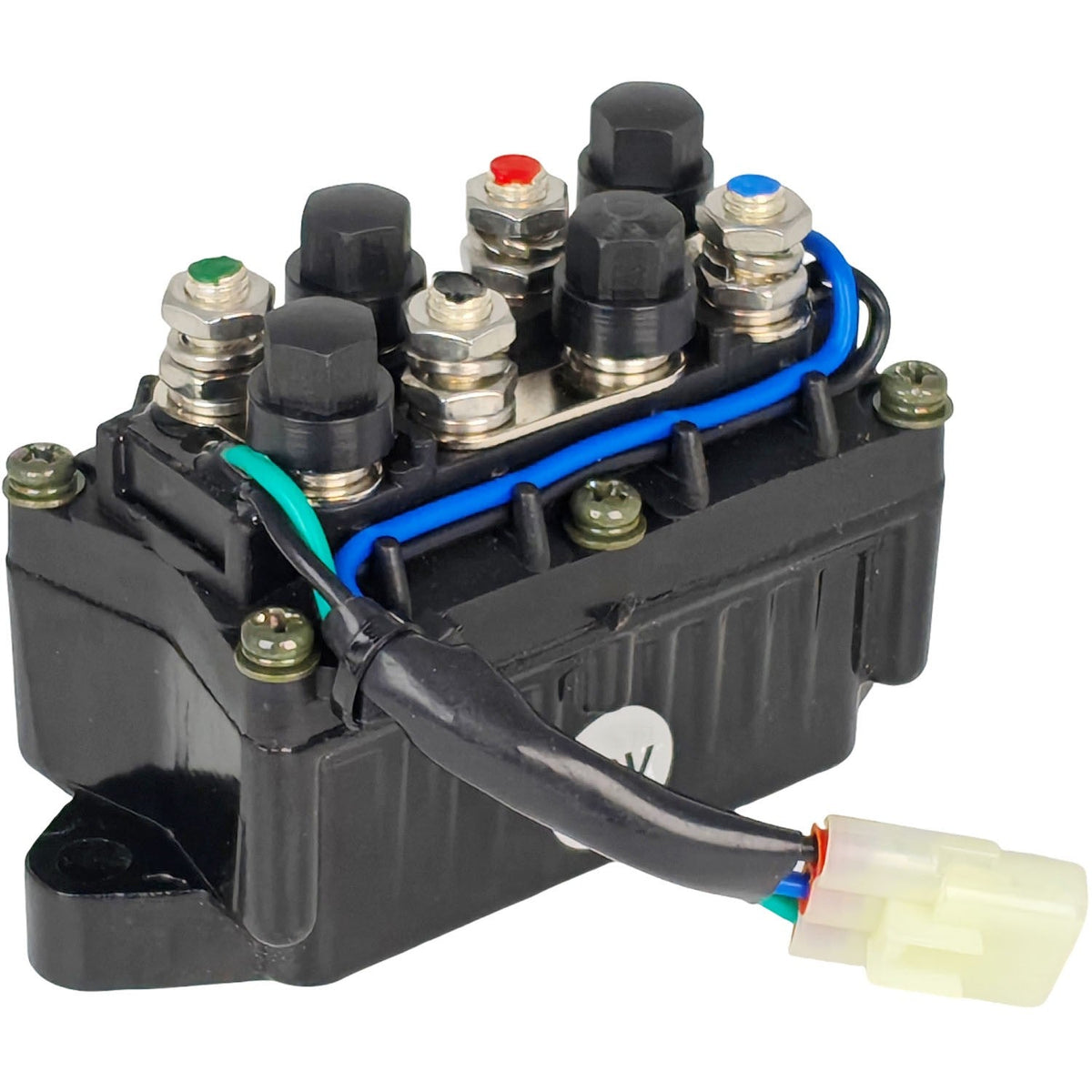

12V Winch Solenoid Relay Switch 0436-700 Fit Arctic Cat Prowler 2011-2015 HDX
$72.69
In Stock
$72.69
Sale price
$72.69
Regular price
Voltage
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
12V Winch Solenoid Relay Switch for Arctic Cat Prowler 2011-2015 HDX
This 12V winch solenoid relay switch, referencing OEM cross-reference 0436-700, is a heavy-duty contactor designed to control the winch on Arctic Cat Prowler HDX models from 2011 to 2015. It acts as a high-current relay, safely switching the power needed to operate the winch motor under load. This replacement solenoid relay switch is made for Arctic Cat Prowler HDX owners seeking a reliable fix for winch operation issues.
Overview
This 12V winch solenoid relay switch is an electrical relay that manages the high current flow between the battery and winch motor, allowing the winch to be operated in both directions. It is a direct replacement for the original part on Arctic Cat Prowler HDX vehicles, restoring the critical link between the dash switch and the winch. A functioning solenoid relay switch is essential for the Prowler HDX's winch to deliver its full pulling power and for the winch brake to hold the load when the motor is stopped.
Built For Performance
- Designed for 12V DC electrical systems, standard for ATV/UTV winch applications.
- High-amp contactor rating ensures it can handle the surge of power required to start a winch motor under load.
- Rugged housing protects the internal relay from vibration, moisture, and debris encountered off-road.
- Replaces OEM part number 0436-700 to meet original specifications for Prowler HDX.
- Constructed with heavy-duty copper contacts to minimize electrical resistance and heat build-up.
- Provides consistent engagement for reliable winch activation every time.
Fits These Machines
- for Arctic Cat Prowler HDX 2011
- for Arctic Cat Prowler HDX 2012
- for Arctic Cat Prowler HDX 2013
- for Arctic Cat Prowler HDX 2014
- for Arctic Cat Prowler HDX 2015
On-The-Job Use
- Replacing a failed winch solenoid on a Prowler HDX used for farm or ranch work.
- Repairing an intermittent winch function on a Prowler HDX used for trail recovery.
- Performing an electrical system overhaul on a Prowler HDX winch setup.
- Troubleshooting a Prowler HDX winch that only operates in one direction.
Specs At A Glance
| Voltage | 12V |
| Part Number(s) | 0436-700 |
| Compatible With | Arctic Cat Prowler HDX 2011-2015 |
Good To Know
Q: What are the symptoms of a bad winch solenoid relay switch? A: A winch that does not operate at all, a winch that only works in one direction, or a winch that functions when cold but fails after warming up are all indicators of a failing solenoid. A clicking sound when pressing the dash switch often indicates the solenoid is receiving a signal but is unable to pass power.
Q: Can I install this winch solenoid relay switch myself? A: Yes, with basic hand tools and knowledge of electrical wiring, you can install it. Disconnect the battery first, then match the existing wiring connections to the terminals on the new solenoid, ensuring all connections are clean and tight.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
