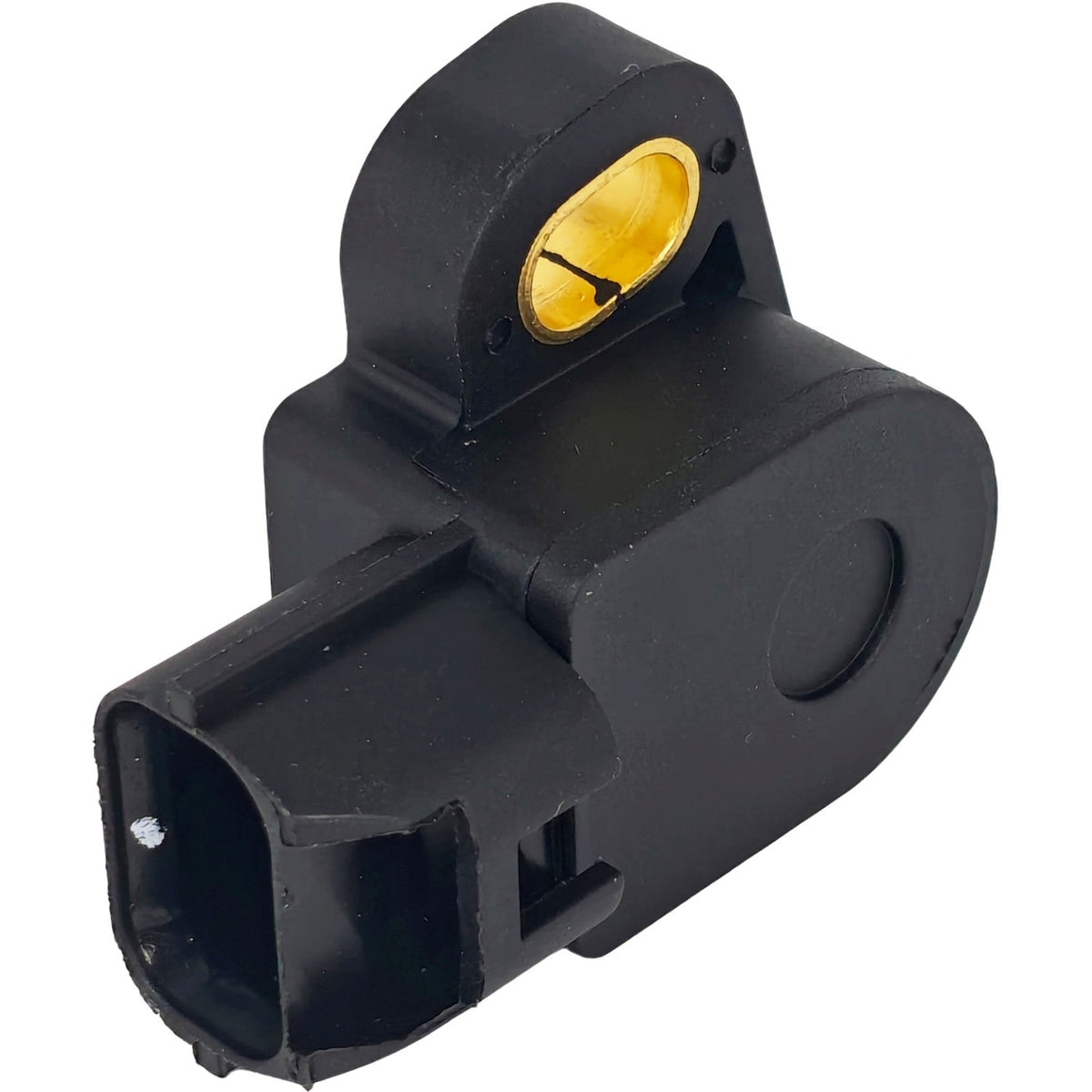

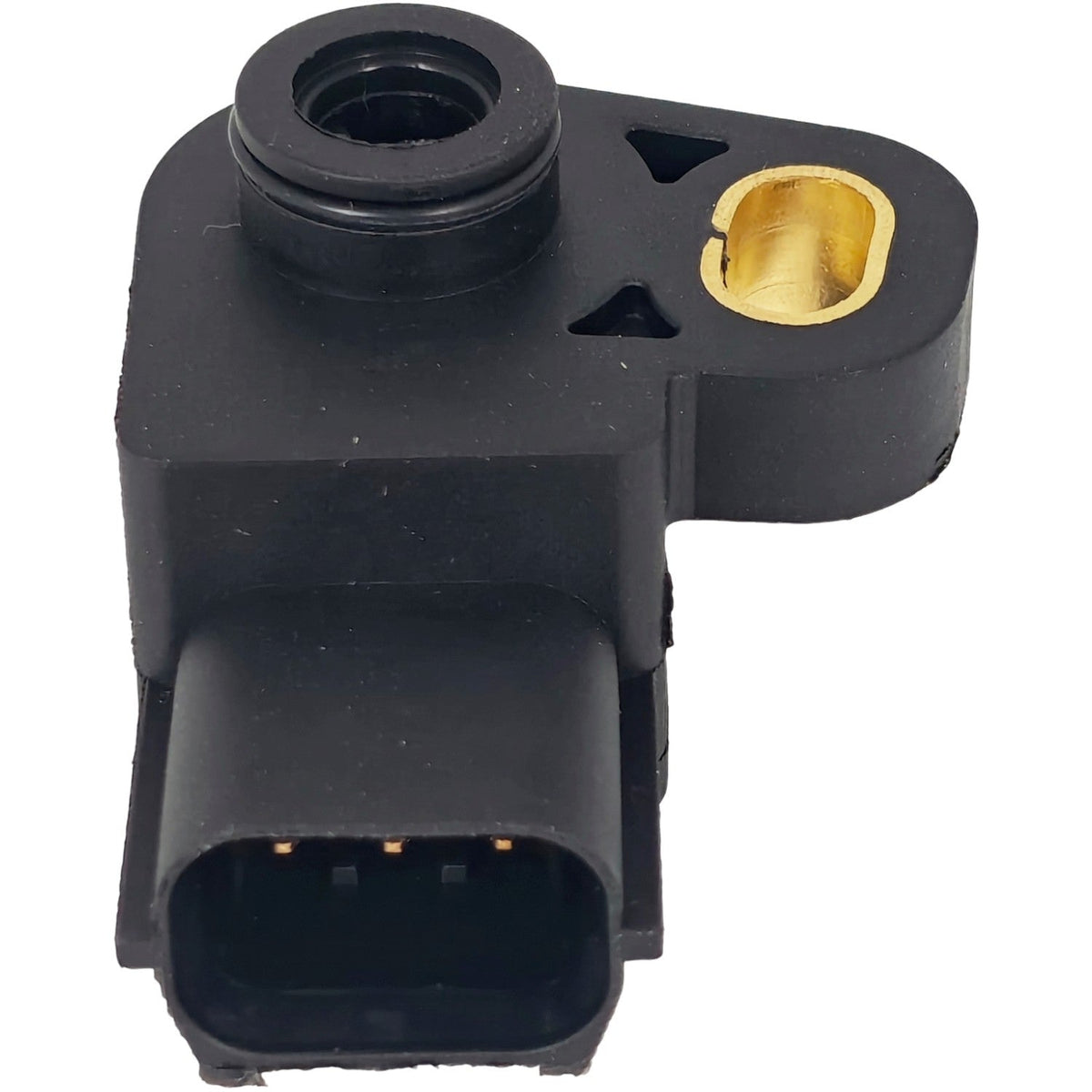

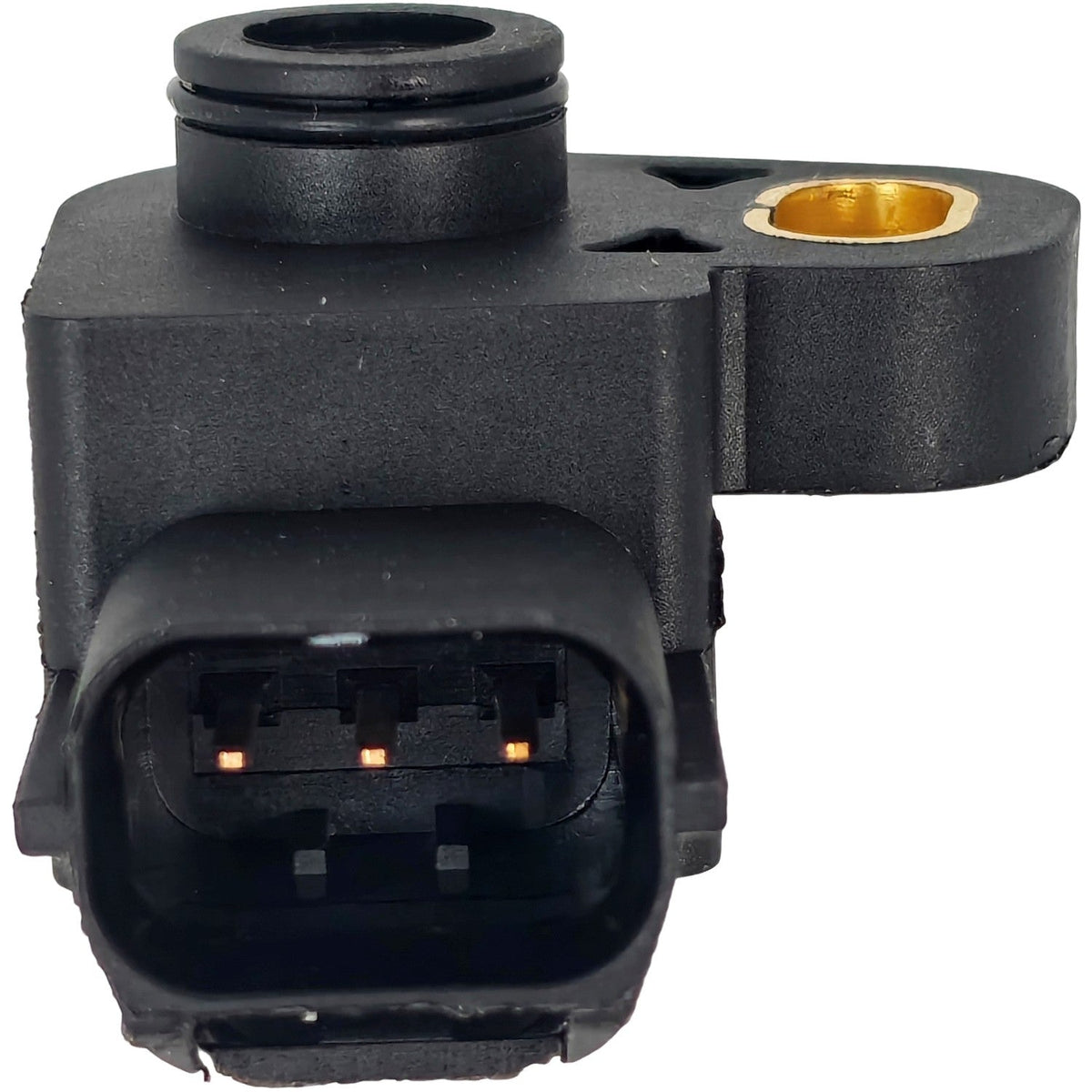

13580-47H00 Sub Throttle Position Sensor TPS for Suzuki GSX-R1000 1358047H00
$45.19
In Stock
$45.19
Sale price
$45.19
Regular price
Part Number(s)
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
Sub Throttle Position Sensor for Suzuki
This Sub Throttle Position Sensor (TPS) with part number 13580-47H00 (cross-reference 1358047H00) monitors the sub-throttle valve position on the intake tract, feeding critical data to the ECU to deliver precise throttle response and smooth power delivery for Suzuki sportbikes.
Overview
This Sub Throttle Position Sensor TPS for Suzuki tracks the angular position of the sub-throttle butterfly, allowing the engine management system to modulate air intake and fuel delivery for optimal combustion. It replaces a worn or failed sensor on select Suzuki GSX-R models, restoring proper ride-by-wire behavior and preventing mid-range stumbles. This genuine-style sensor is built to match OEM specifications for reliable, long-term service.
Built For Performance
- OEM-style construction with sealed housing to resist moisture and vibration
- Plugs directly into the factory harness without modification
- Matches OEM resistance and output curves for accurate signal transmission
- Drop-in replacement for part numbers 13580-47H00 and 1358047H00
- Ensures consistent idle stability and smooth off-idle throttle transitions
Fits These Machines
- for Suzuki GSX-R1000
On-The-Job Use
- Replaces a failing sensor causing erratic idle or throttle hesitation
- Restores accurate ECU input after sensor failure from heat or age
- Used during engine rebuilds or routine intake sensor maintenance
Specs At A Glance
| Part Number(s) | 13580-47H00 / 1358047H00 |
| Product Type | Sub Throttle Position Sensor (TPS) |
| Fitment | Suzuki GSX-R1000 |
| Signal Type | Analog voltage output |
Good To Know
Q: Will this sensor work with my existing throttle body? A: Yes, this sensor mounts directly onto the sub-throttle shaft of the throttle body and uses the same mounting holes and connector as the original, so it installs without any adapters.
Q: What symptoms indicate a faulty sub throttle position sensor? A: Common symptoms include poor acceleration, hesitation during throttle opening, and a check engine light related to throttle valve position. Replacing this sensor often resolves those issues.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
