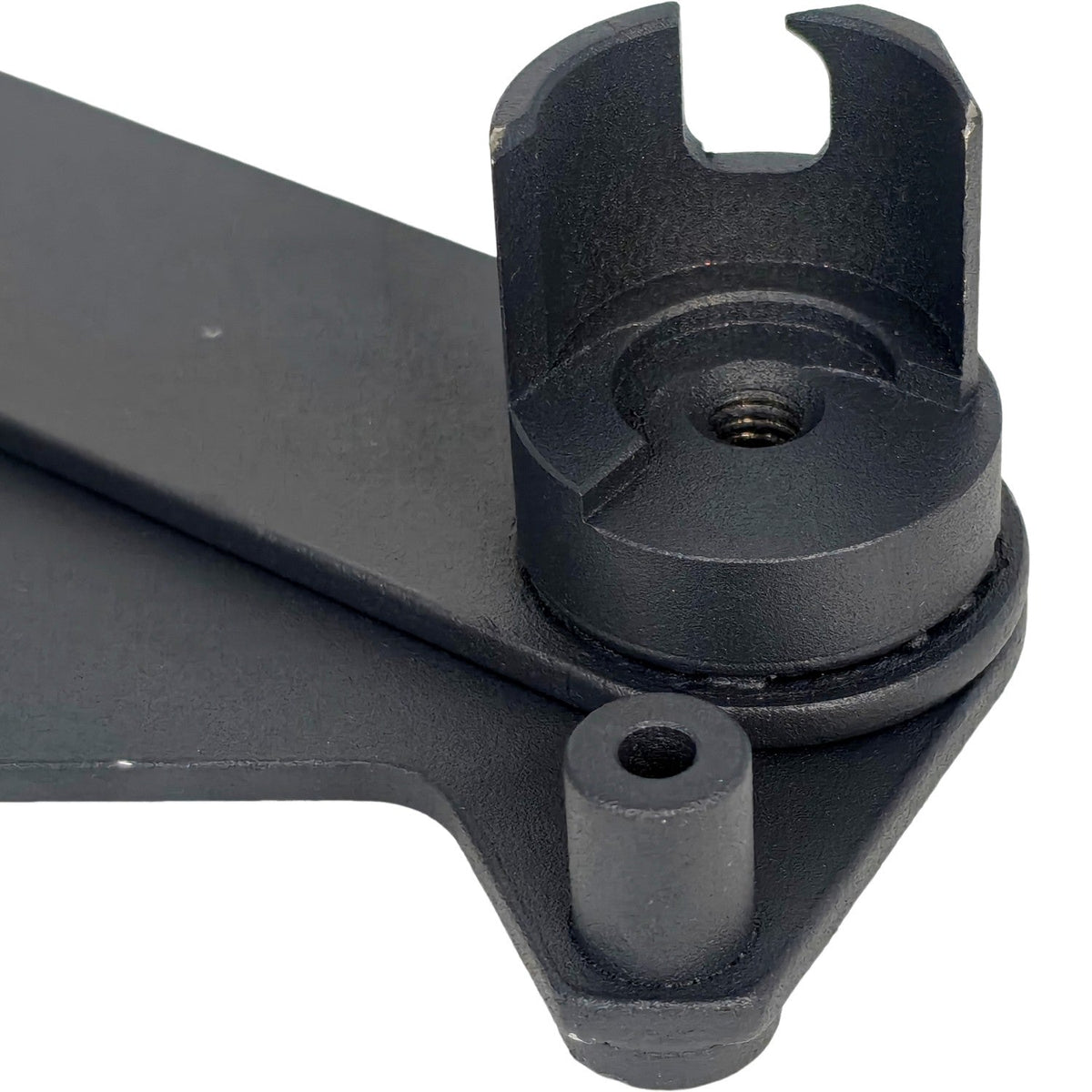

16-0188 Shoe Tool Cam Chain Removal Kit for Harley-Davidson FXD 1999-2005
$92.49
In Stock
$92.49
Sale price
$92.49
Regular price
Part Number(s)
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
Cam Chain Removal Kit for Harley-Davidson
This 16-0188 Shoe Tool Cam Chain Removal Kit for Harley-Davidson is a specialized service tool designed to safely remove and install cam chain shoes on twin cam engines. It provides the precise leverage and contact needed to depress the chain tensioner shoe for camshaft service. This kit is essential for anyone performing top-end or cam work on compatible Harley-Davidson motorcycles.
Overview
This 16-0188 Shoe Tool Cam Chain Removal Kit for Harley-Davidson is a dedicated tool for compressing the cam chain tensioner shoe, allowing for removal of the camshaft or timing components. It is a professional-grade tool designed for the specific geometry of Twin Cam 88 engines. This kit simplifies a critical step in engine teardown, reducing the risk of damaging internal components.
Built For Performance
- Precisely machined shoe tool provides a stable contact surface for the tensioner shoe.
- Includes a T-handle screwdriver for controlled compression of the chain tensioner.
- Sturdy construction withstands the force required for repeated shop use.
- Specifically profiled for the cam chain tensioner shoe on applicable models.
- Allows for a one-person operation, eliminating the need for makeshift tools.
Fits These Machines
- for Harley-Davidson FXD 1999-2005
- for Harley-Davidson FLST 2000-2006
- for Harley-Davidson FXST 2000-2006
On-The-Job Use
- Use when performing camshaft replacement or inspection.
- Necessary when replacing the cam chain tensioner shoes.
- Ideal for top-end engine rebuilds and major service intervals.
- Helps during valve spring removal and installation procedures.
- Required for adjusting or replacing the timing chain components.
Specs At A Glance
| Part Number(s) | 16-0188 |
| Tool Type | Cam Chain Removal Kit |
| Application | Removal and Installation of Cam Chain Shoe |
Good To Know
Q: What is the primary function of this tool? A: The primary function is to compress the cam chain tensioner shoe, providing clearance to remove the camshaft or other internal components. This action is critical for safely disassembling the valve train.
Q: Why is a dedicated tool necessary for this job? A: A dedicated tool is necessary because the tensioner shoe is under spring pressure, and a specific tool is required to release that pressure properly. This prevents binding or damaging the chain, shoe, or camshaft during service.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
