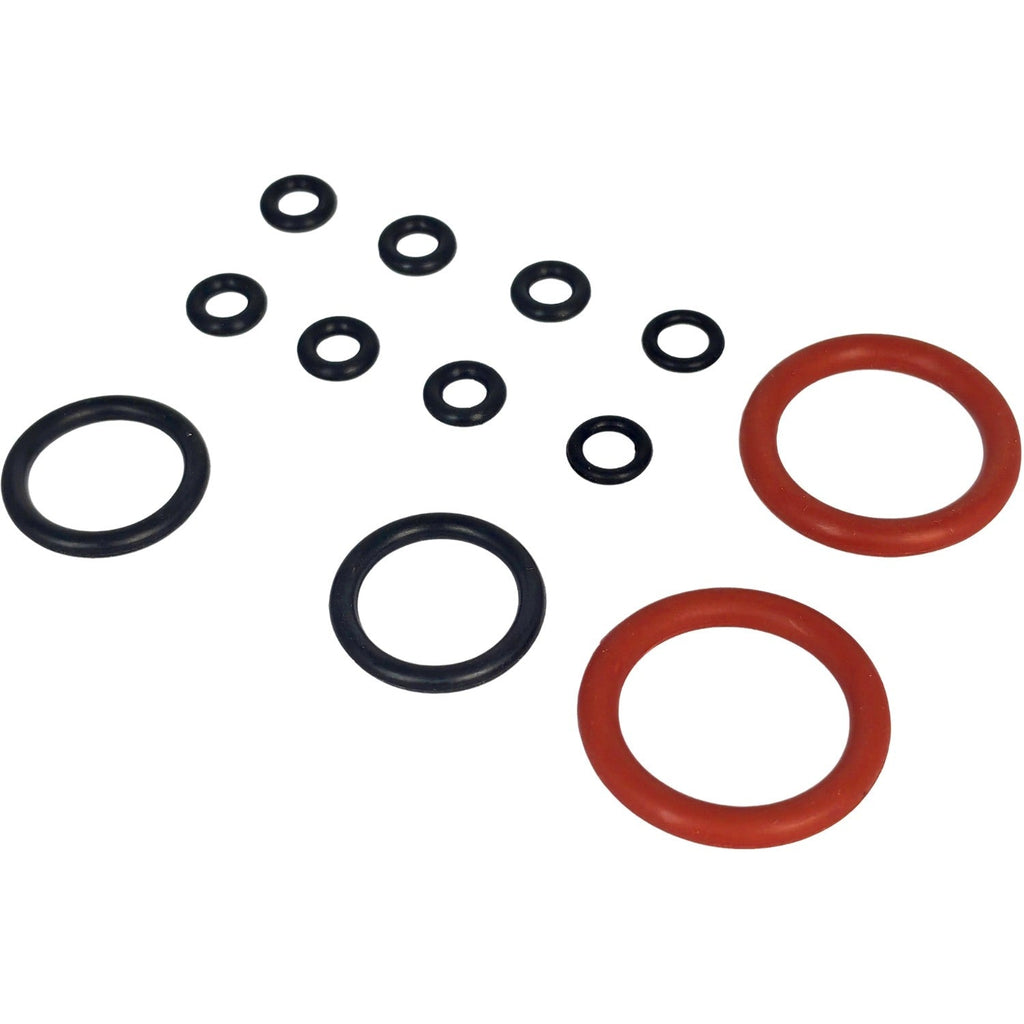

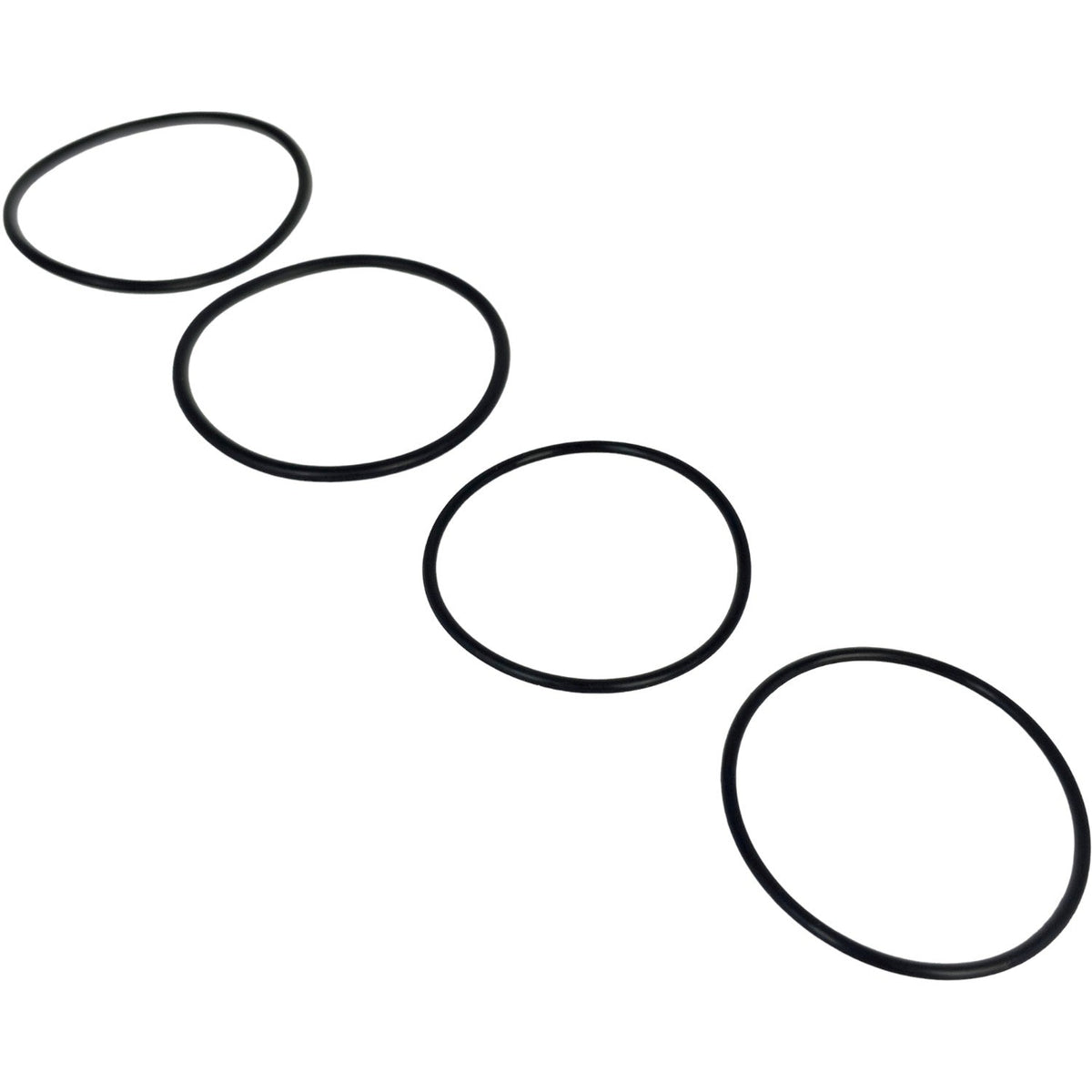

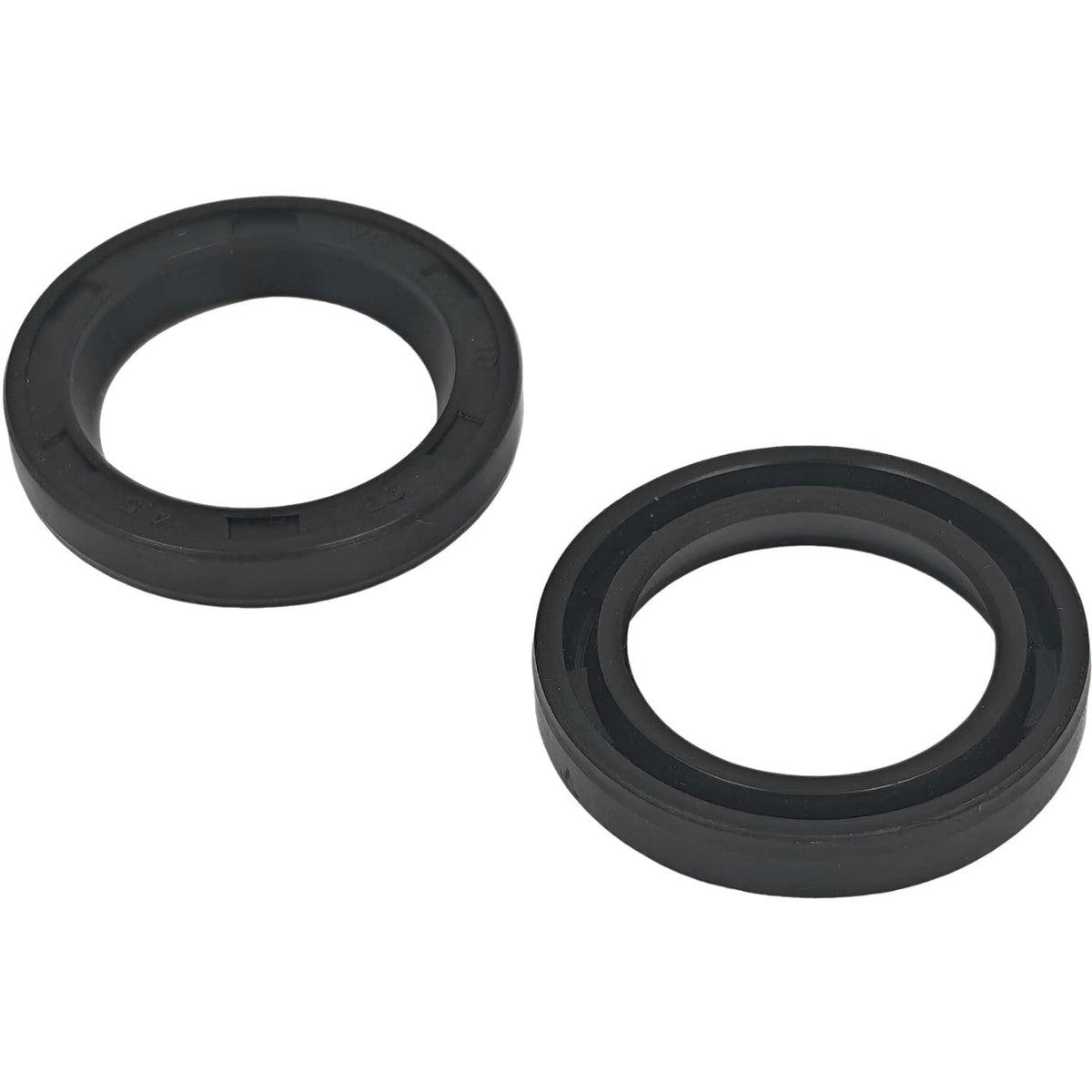

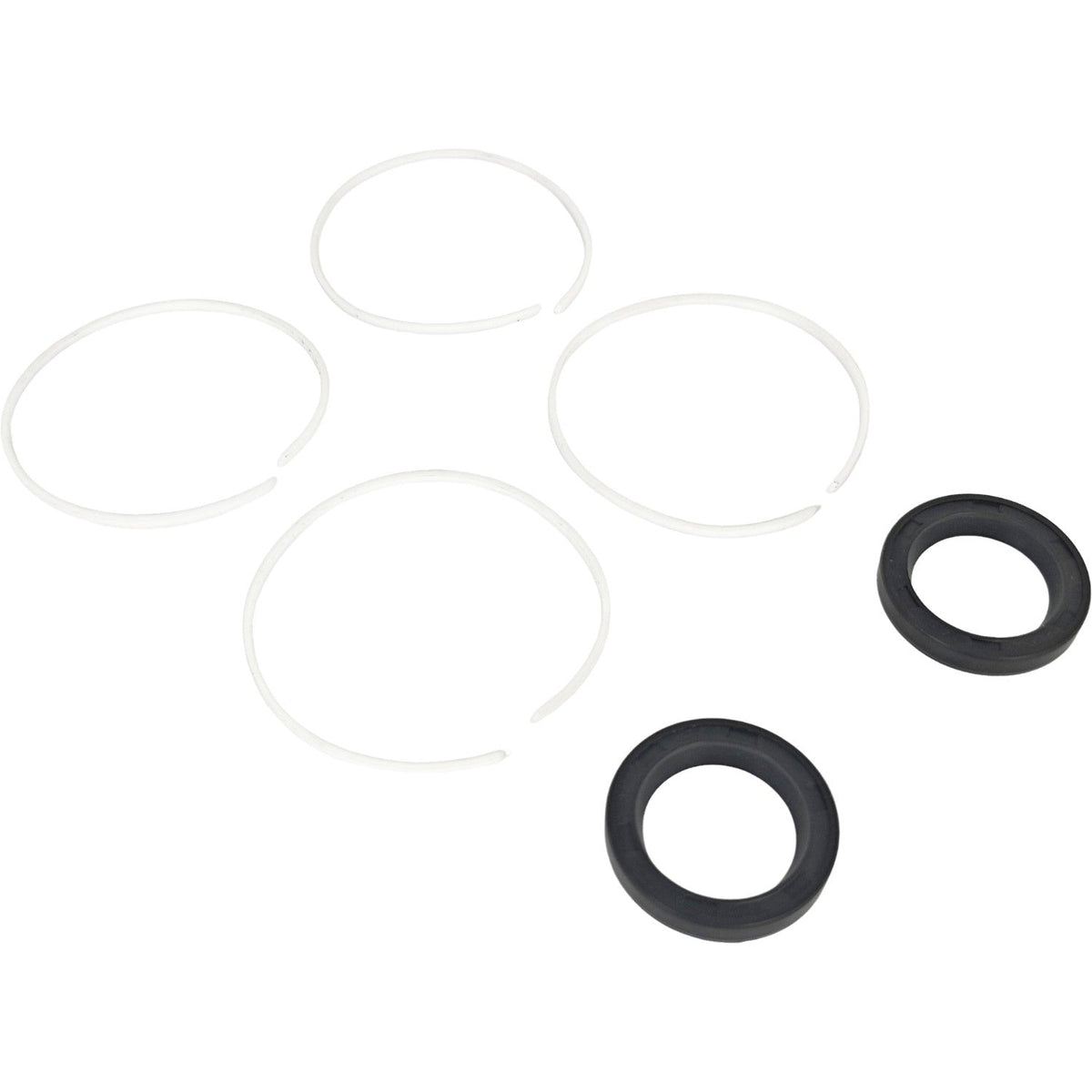

3857470 3857471 Trim Cylinder Ram Rebuild Kit Fit Volvo Penta SX DPS-M Cylinder
$77.09
In Stock
$77.09
Sale price
$77.09
Regular price
Part Number(s)
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
Trim Cylinder Ram Rebuild Kit for Volvo Penta
This trim cylinder ram rebuild kit fits Volvo Penta SX and DPS-M drives, providing a complete seal replacement to restore leak-free trim performance, with OEM cross-reference numbers 3857470 and 3857471.
Overview
This trim cylinder ram rebuild kit is designed for Volvo Penta SX and DPS-M sterndrive trim systems. It contains all the seals and gaskets needed to rebuild the trim cylinder and stop hydraulic fluid leaks. The kit offers a practical way to maintain your Volvo Penta drive without replacing the entire cylinder unit.
Built For Performance
- Complete set of high-grade seals and O-rings
- Engineered to meet OEM tolerances for a precise fit
- Resists degradation from marine hydraulic fluids
- Helps maintain steady trim cylinder pressure
- Directly replaces worn components to restore cylinder function
Fits These Machines
- for Volvo Penta SX
- for Volvo Penta DPS-M
On-The-Job Use
- Commonly used during annual maintenance of the sterndrive trim system
- Addresses symptoms like cylinders dropping or failing to hold position
- Ideal for repairing leaks around the trim ram gland and piston
Specs At A Glance
| Part Number(s) | 3857470, 3857471 |
| Kit Type | Trim Cylinder Ram Rebuild Kit |
| Compatible Drive Models | Volvo Penta SX, DPS-M |
Good To Know
Q: How difficult is it to install this kit? A: The rebuild process requires basic mechanical skills and standard hand tools, and it is typically completed in under an hour per cylinder.
Q: Can these seals be used for both stern drive and bow thruster cylinders? A: No, these seals are specifically intended for the trim cylinders on Volvo Penta SX and DPS-M sterndrives, so they should not be used for other hydraulic applications.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
