3857470 Trim Cylinder Ram Rebuild Kit Fit Volvo Penta Repair Seal Set 3857471
$77.09
In Stock
$77.09
Sale price
$77.09
Regular price
Part Number(s)
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
Trim Cylinder Ram Rebuild Kit for Volvo Penta

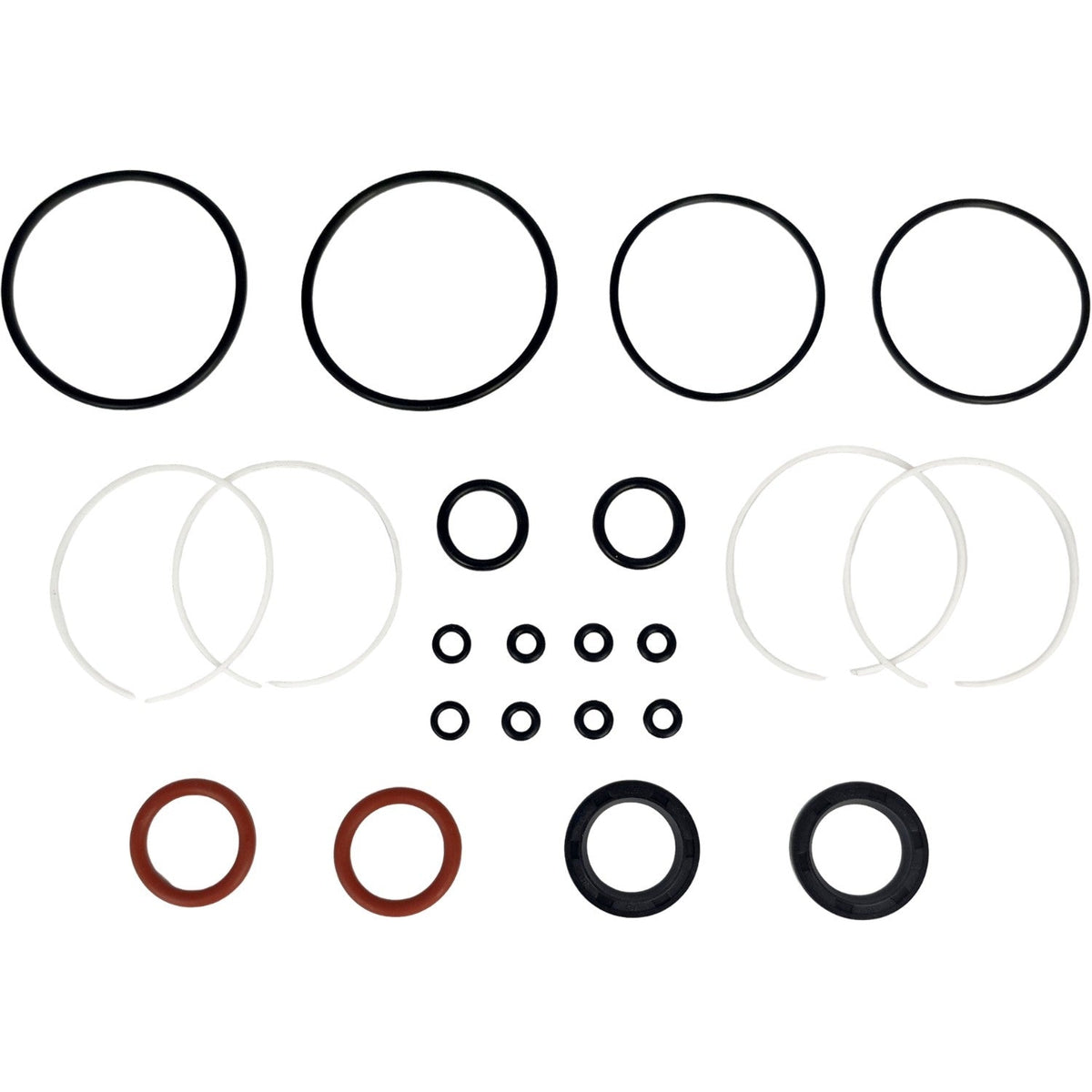

This 3857470 trim cylinder ram rebuild kit for Volvo Penta includes the seals and O-rings needed to restore the hydraulic trim cylinder assembly, referencing OEM cross-reference 3857471. It is a complete seal set designed to stop leaks and maintain proper trim operation on compatible sterndrive systems. This kit is for boat owners and mechanics who need a dependable repair solution for worn trim cylinder seals.
Overview
This trim cylinder ram rebuild kit for Volvo Penta contains the essential sealing components for a trim cylinder overhaul. It is designed to replace worn seals and prevent hydraulic fluid leaks, ensuring reliable trim performance. The kit directly addresses the 3857470 and 3857471 part numbers, making it a targeted repair seal set for your Volvo Penta trim system.
Built For Performance

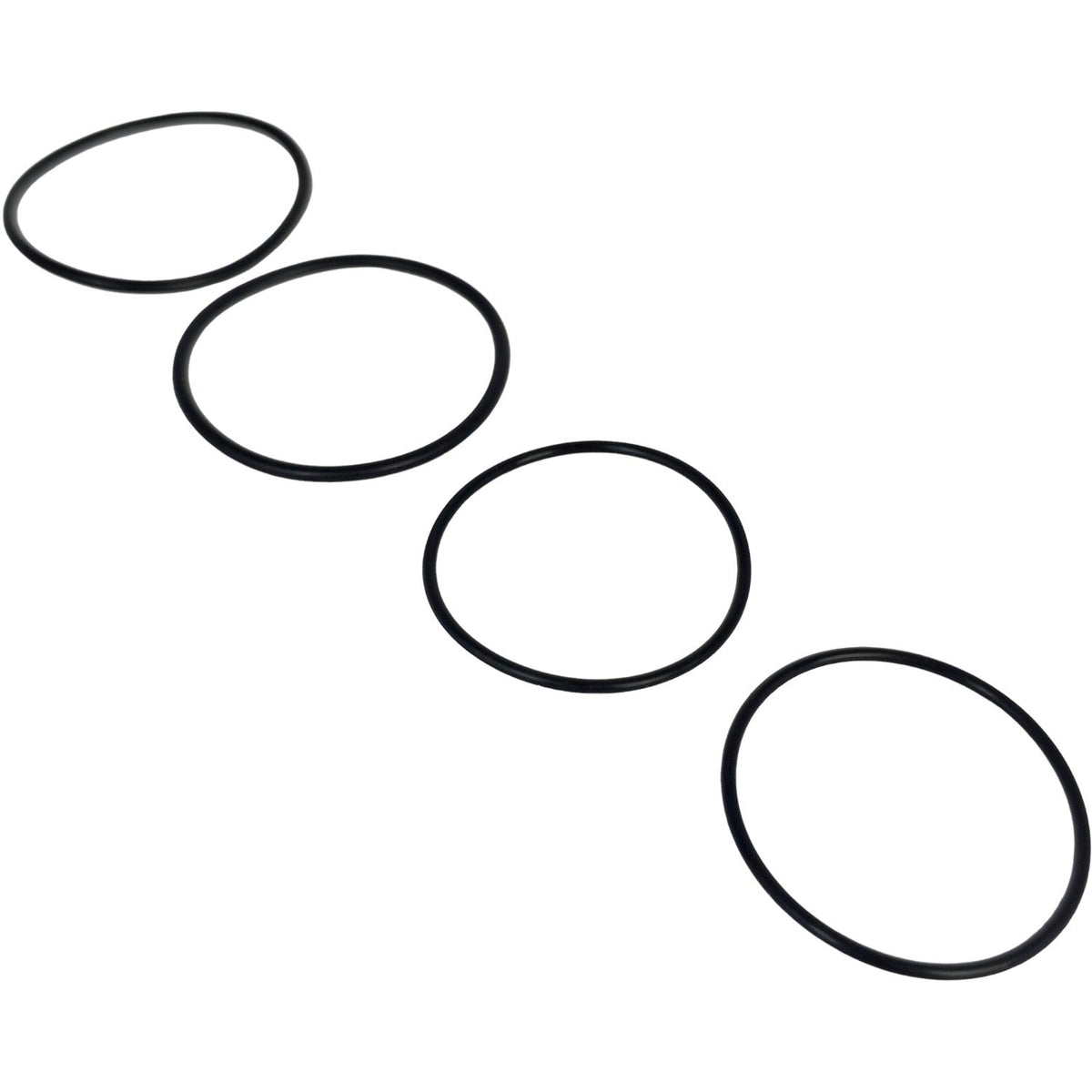

- Comprehensive seal set includes all necessary O-rings and seals for a trim cylinder rebuild
- Replacement parts are engineered to match the specifications of the original 3857470 component
- Designed to withstand the high pressures of marine hydraulic trim systems
- Restores cylinder integrity to prevent fluid bypass and maintain trim hold
- Includes the specific cap O-ring for a proper sealing surface
Fits These Machines
- for Volvo Penta SX
- for Volvo Penta DPS
- for Volvo Penta M
On-The-Job Use
- Replace seals during a routine trim cylinder service interval
- Repair a leaking trim ram to restore hydraulic pressure
- Rebuild a cylinder when performing a full lower unit or outdrive overhaul
- Install new seals when reassembling a disassembled trim cylinder
Specs At A Glance
| Part Number(s) | 3857470, 3857471 |
| Type | Rebuild Kit |
| Application | Trim Cylinder Ram |
| Compatible Brand | for Volvo Penta |
Good To Know
Q: What is included in this trim cylinder ram rebuild kit for Volvo Penta? A: The kit includes the specific seals, O-rings, and a cap O-ring required to rebuild the seal set of the trim cylinder. All components are necessary for a complete repair of the ram's sealing surfaces.
Q: How do I know if this kit fits my Volvo Penta drive? A: This kit is designed for Volvo Penta SX and DPS-M sterndrive models that use the 3857470 trim cylinder. Always verify the part numbers on your existing cylinder to ensure the correct kit before ordering.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
