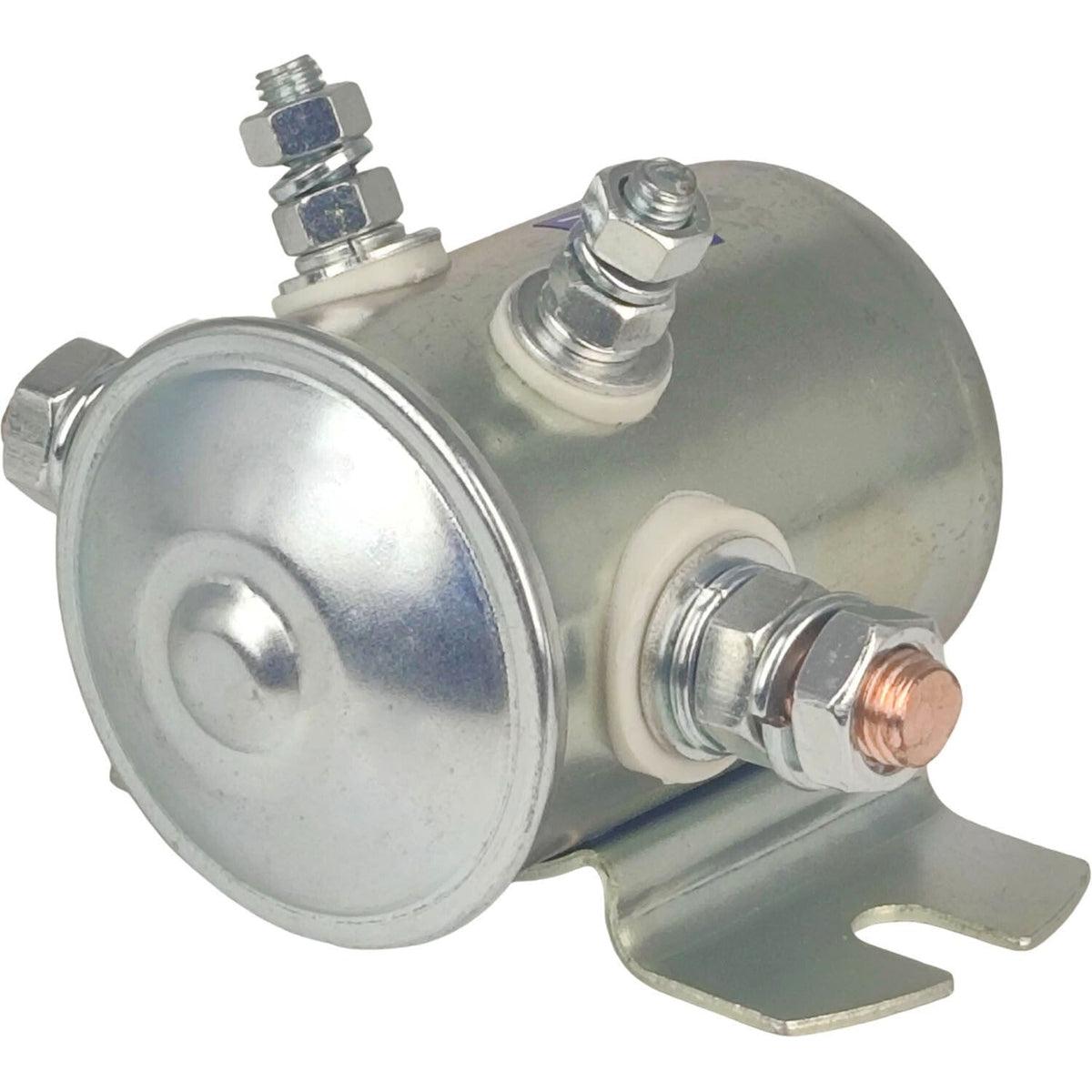

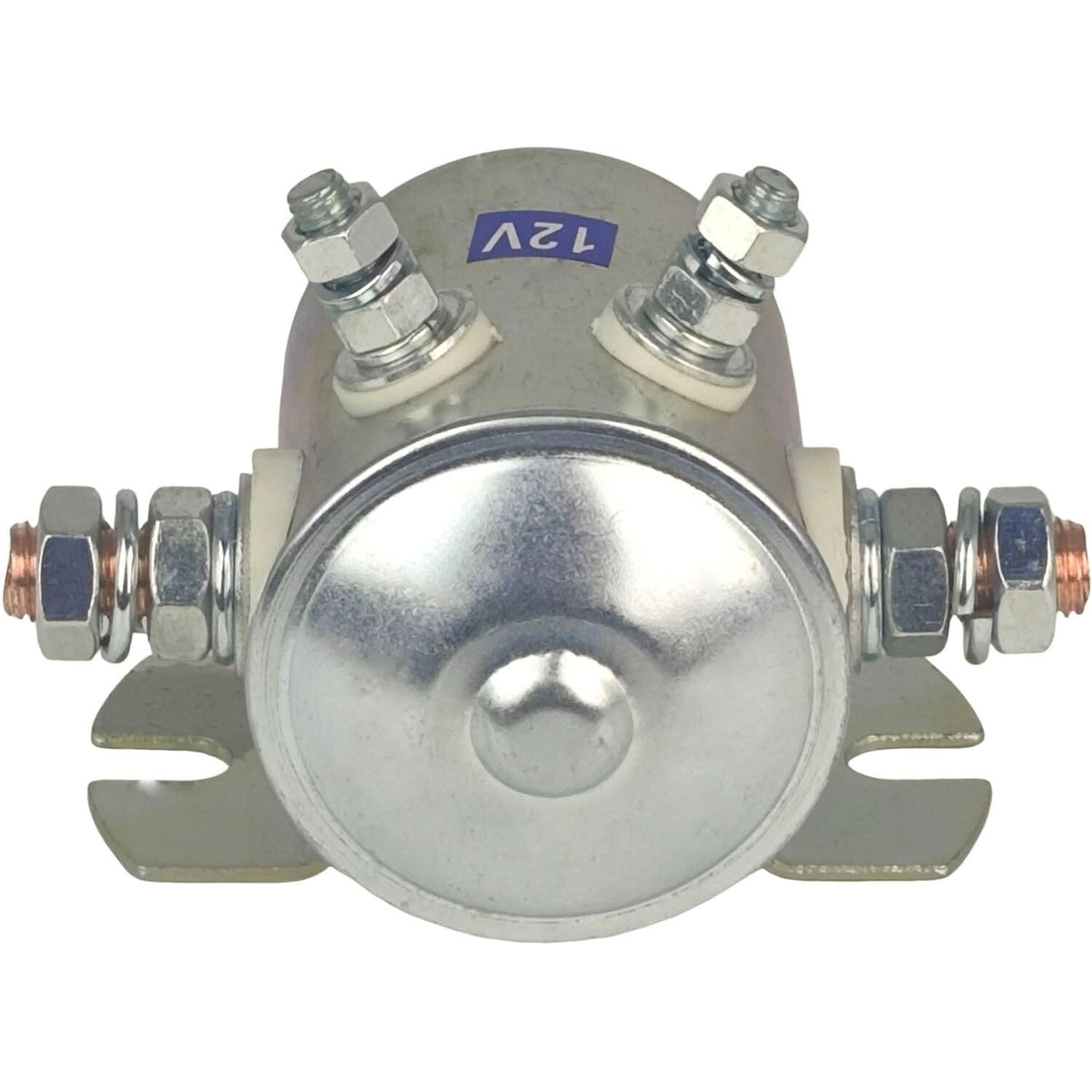

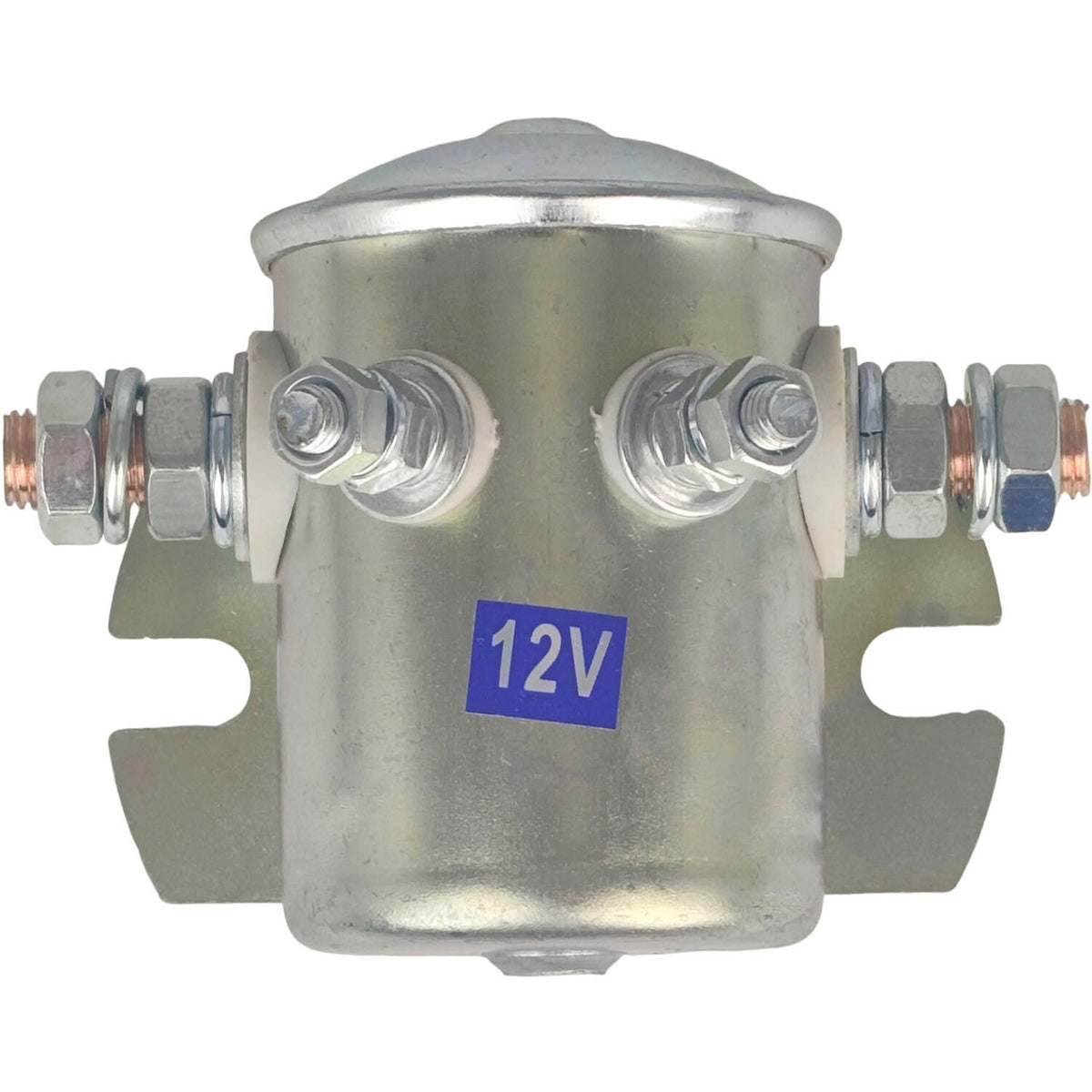

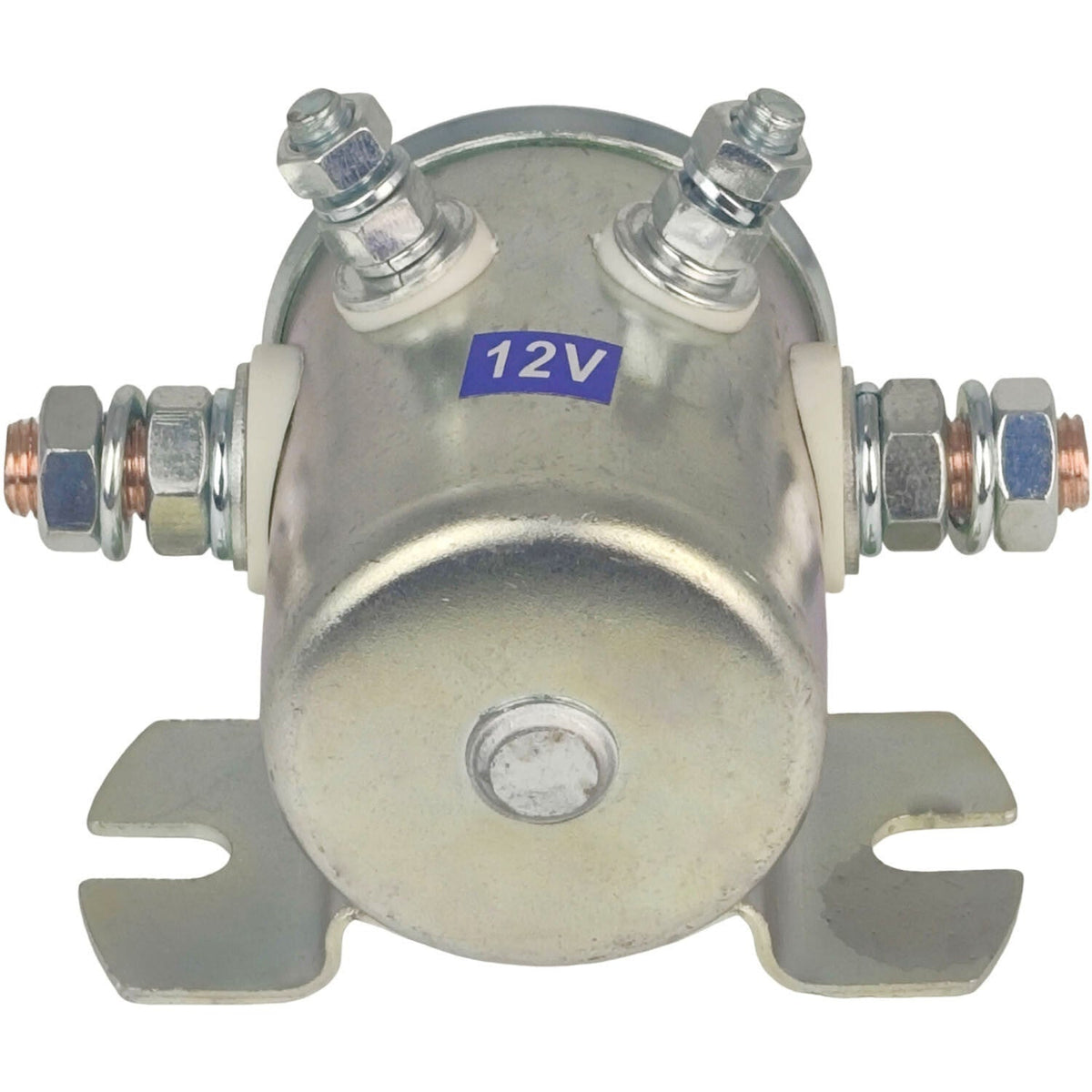

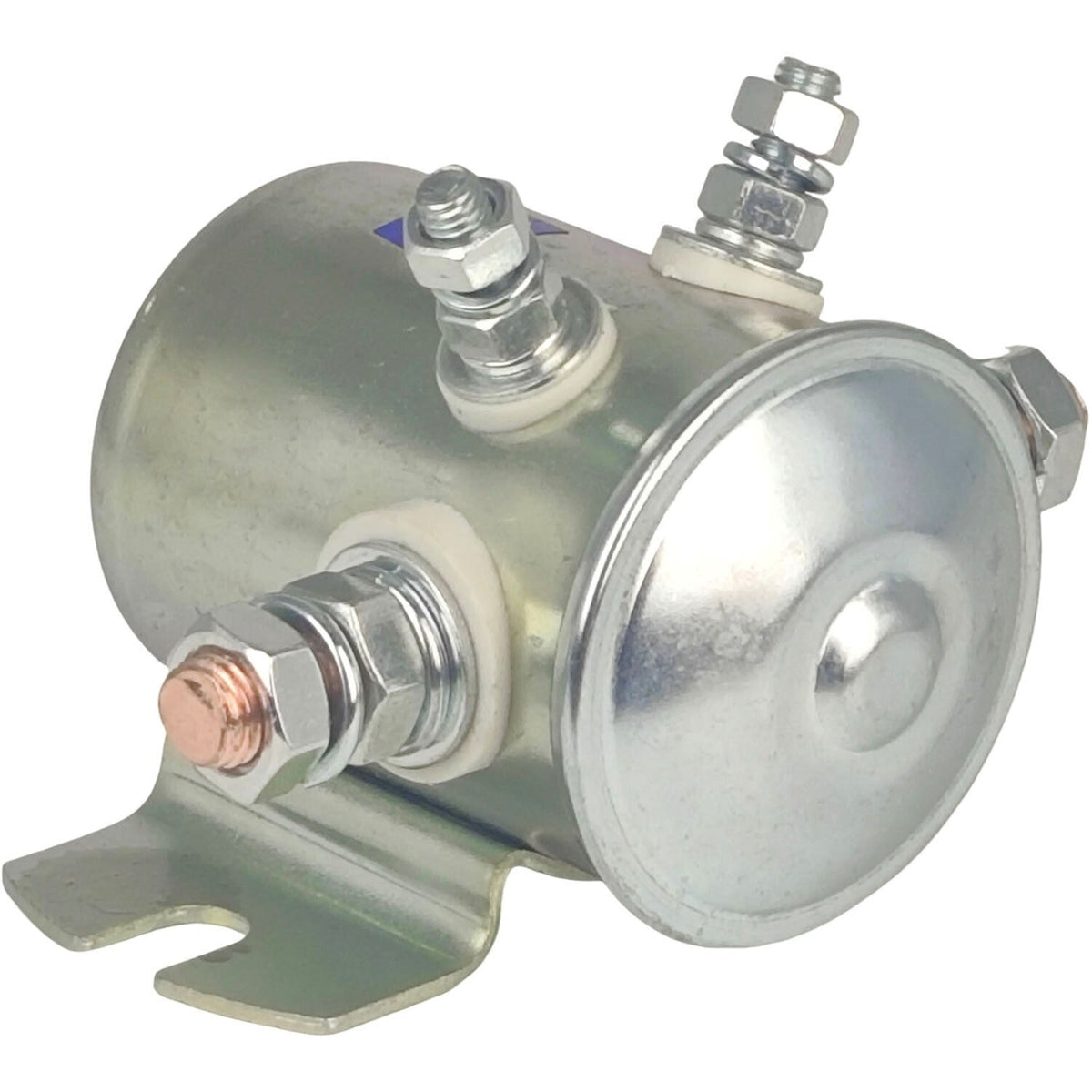

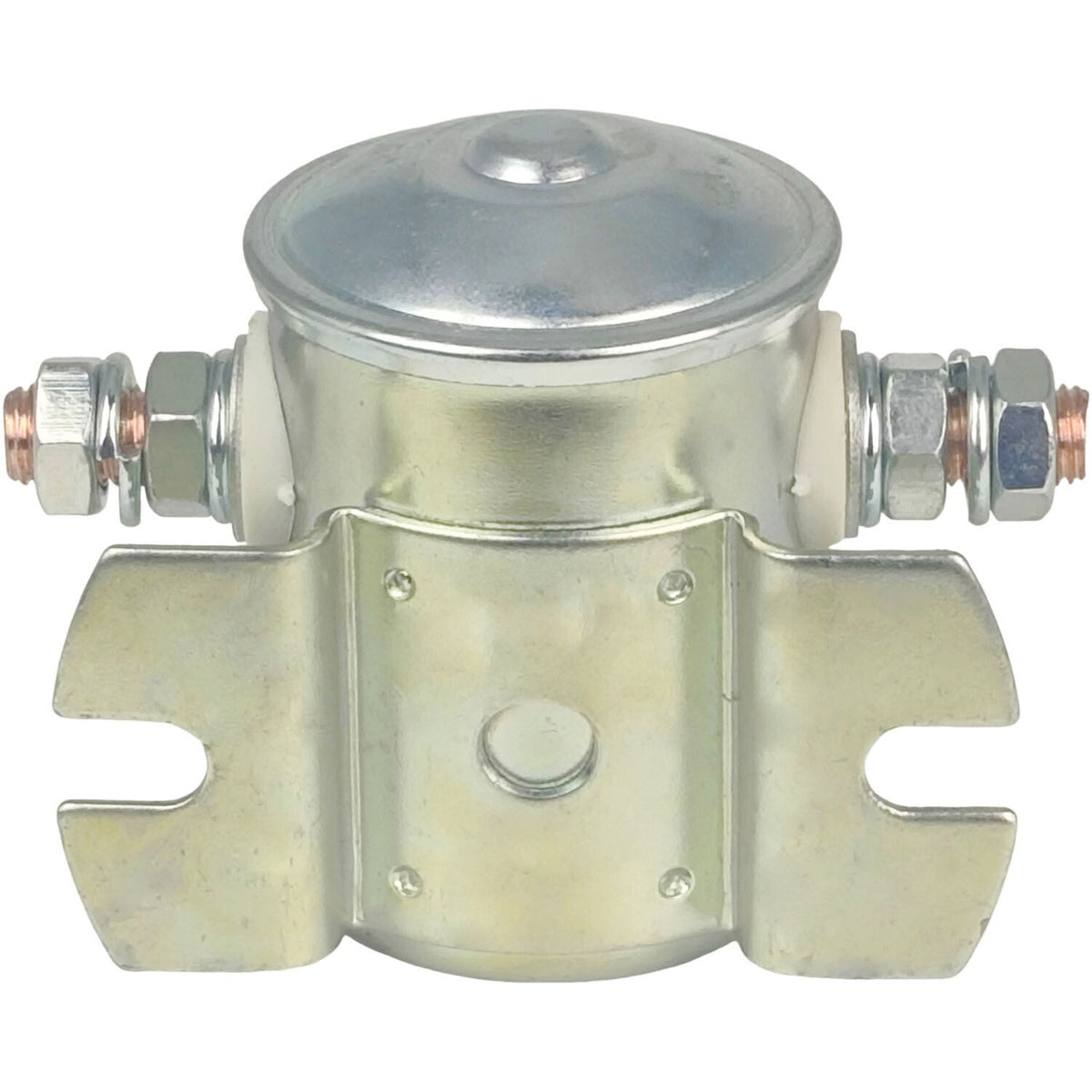

4 Terminal 5117340 Solenoid Relay 502265300 15-88 15-132 24059 1513215108 WS-85
$55.09
In Stock
$55.09
Sale price
$55.09
Regular price
Terminals
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
4 Terminal 5117340 Solenoid Relay for Various Applications
This 4 terminal solenoid relay is a direct replacement component designed to manage high-current electrical circuits in a range of equipment, referencing OEM cross-numbers 5117340, 502265300, 15-88, 15-132, 24059, 1513215108, and WS-85.
Overview
This 4 terminal solenoid relay is an electromechanical switch that controls a high-power circuit with a low-power signal, ideal for starting motors and engaging heavy-duty electrical loads. It is built for demanding environments where reliable switching is critical, making it suitable for use in agricultural, construction, and industrial machinery. The 4 terminal solenoid relay ensures dependable performance in intermittent-duty applications.
Built For Performance
- Four-terminal design provides straightforward SPST (single-pole, single-throw) switching capability
- Heavy-duty contacts handle high inrush currents without welding or excessive wear
- Sealed coil housing protects against dust, moisture, and vibration
- Continuous-duty rated coil for sustained operation without overheating
- Standard mounting bracket allows for simple installation in existing systems
Fits These Machines
- for equipment using OEM part 5117340
- for equipment using OEM part 502265300
- for equipment using part number 15-88
- for equipment using part number 15-132
- for equipment using part number 24059
- for equipment using part number 1513215108
- for equipment using part number WS-85
On-The-Job Use
- Commonly used in starter circuits for small engines and utility vehicles
- Applies to power lift actuators and hydraulic pump engagement on tractors
- Serves in battery disconnect and power management systems on commercial equipment
Specs At A Glance
| Terminals | 4 |
| Part Number(s) | 5117340, 502265300, 15-88, 15-132, 24059, 1513215108, WS-85 |
Good To Know
Q: What is the typical coil voltage for this relay? A: This type of 4 terminal solenoid relay commonly operates on 12V DC, but always verify the coil voltage against your original component's specification before installation.
Q: Can this relay be used in continuous operation? A: While designed for intermittent duties like starting, it features a continuous-duty coil rating, meaning it can handle extended engagement periods without premature failure.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
