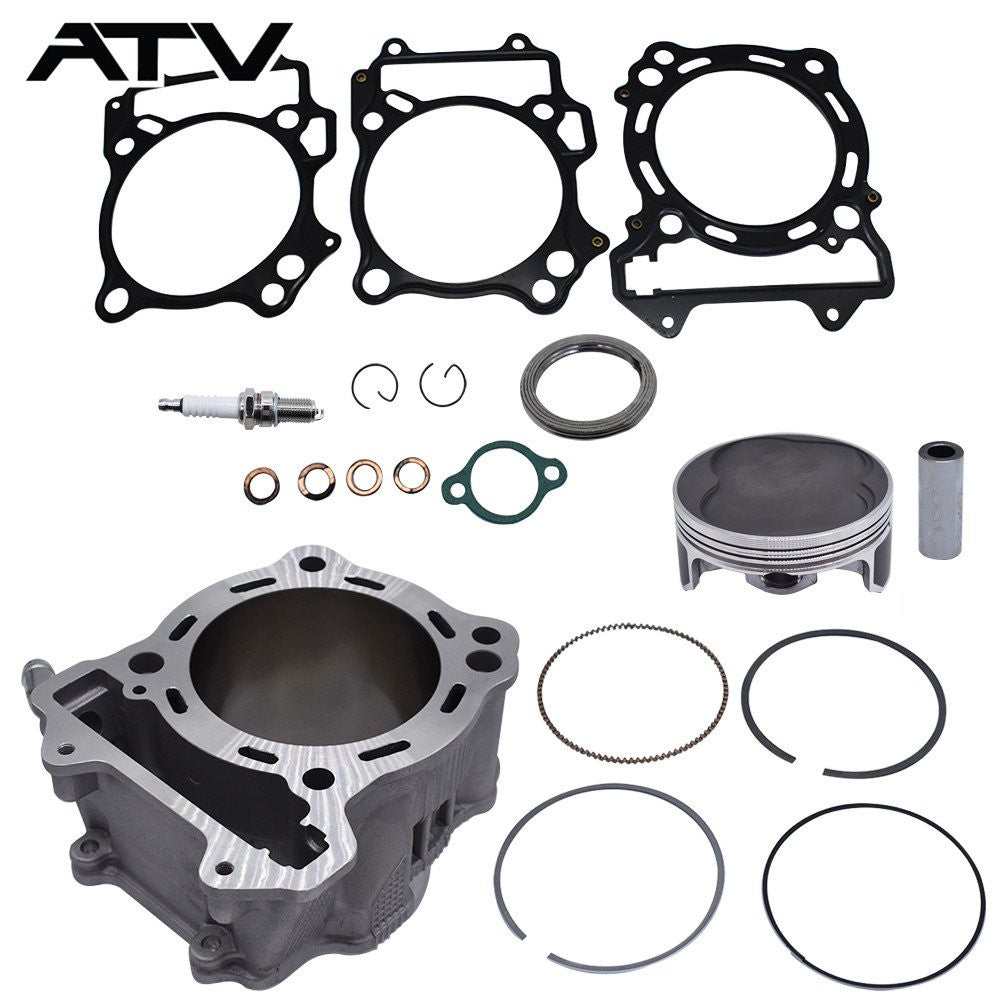

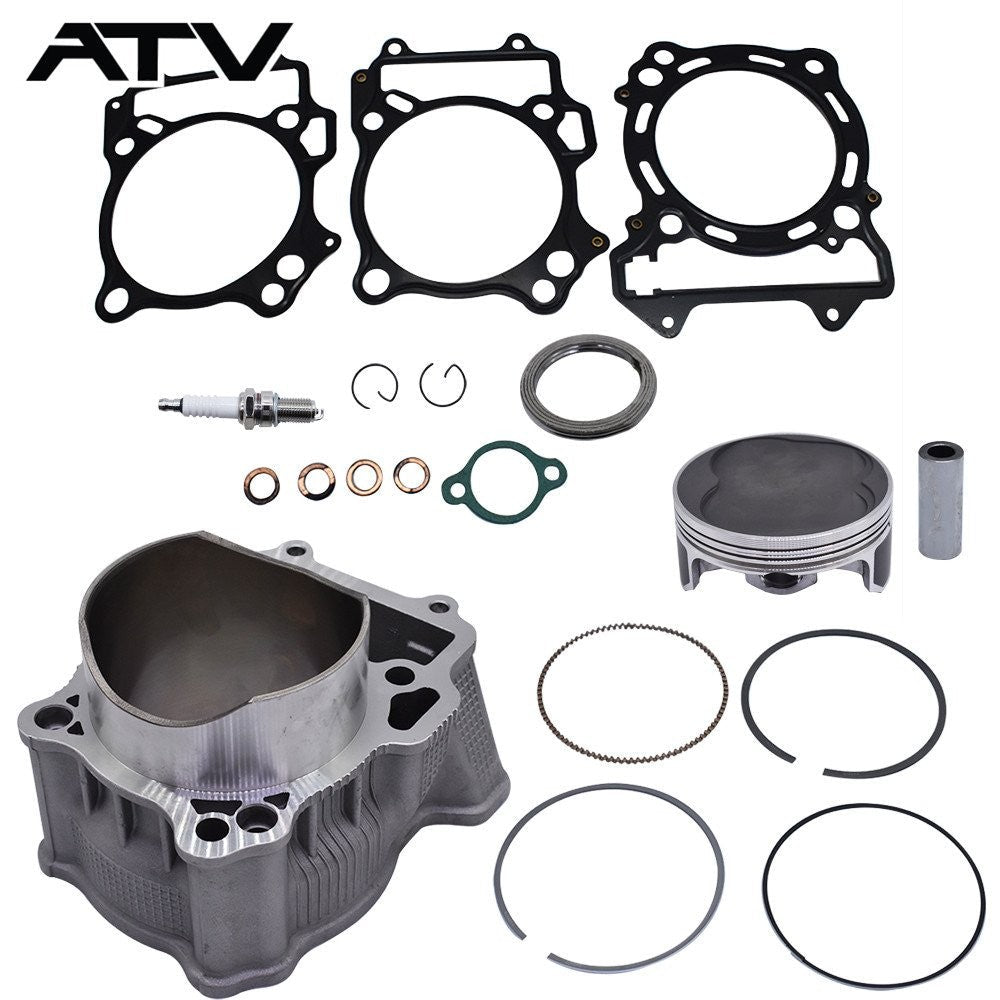

Big Bore Cylinder Piston for Suzuki LTZ 400/434cc Top End Kit 2003-2009 2012-14
$183.79
In Stock
$183.79
Sale price
$183.79
Regular price
Compatible Model
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
Big Bore Cylinder Piston Top End Kit for Suzuki
This big bore cylinder piston top end kit is for a Suzuki LTZ 400/434cc engine and supplies the cylinder and piston parts used for a big bore top end rebuild.
Overview
This big bore cylinder piston top end kit is built for the Suzuki LTZ 400 and its 434cc big bore top end application. It is designed around the Suzuki LTZ400 from 2003 to 2009 and 2012 to 2014, giving a 434cc cylinder and piston service package. The kit is for replacing the cylinder and piston during top end engine work.
Built For Performance
- Uses a 434cc big bore cylinder arrangement for Suzuki LTZ 400/434cc top end work.
- Combines the cylinder and piston in one top end kit for part matching.
- Designed for the 400cc Suzuki LTZ base and 434cc bore format shown.
- Matches the 2003 to 2009 and 2012 to 2014 years listed for this big bore top end kit.
- Provides the main cylinder and piston service parts for a big bore rebuild.
Fits These Machines
- for Suzuki LTZ 400 from 2003 to 2009
- for Suzuki LTZ 400 from 2012 to 2014
On-The-Job Use
- Used when rebuilding the top end of a Suzuki LTZ 400 with a 434cc big bore cylinder.
- Used when replacing a worn piston and cylinder package with the 434cc kit.
- Used during cylinder assembly and piston installation in the Suzuki LTZ 400 engine.
Specs At A Glance
| Compatible Model | Suzuki LTZ 400 |
| Displacement | 434cc |
| Year Range | 2003 to 2009 and 2012 to 2014 |
| Kit Type | Big Bore Cylinder Piston Top End Kit |
Good To Know
Q: Does this big bore top end kit work on a Suzuki LTZ 400 engine? A: This kit is intended for the Suzuki LTZ 400/434cc big bore top end application, so confirm the engine case and cylinder fit before assembly.
Q: What parts are included in this top end kit? A: This is a Big Bore Cylinder Piston Top End Kit, so the top end package is built around the cylinder and piston for the 434cc setup.
Slight variation in fit may be made during production runs, and fit can depend on serial number, so confirm compatibility before ordering.
