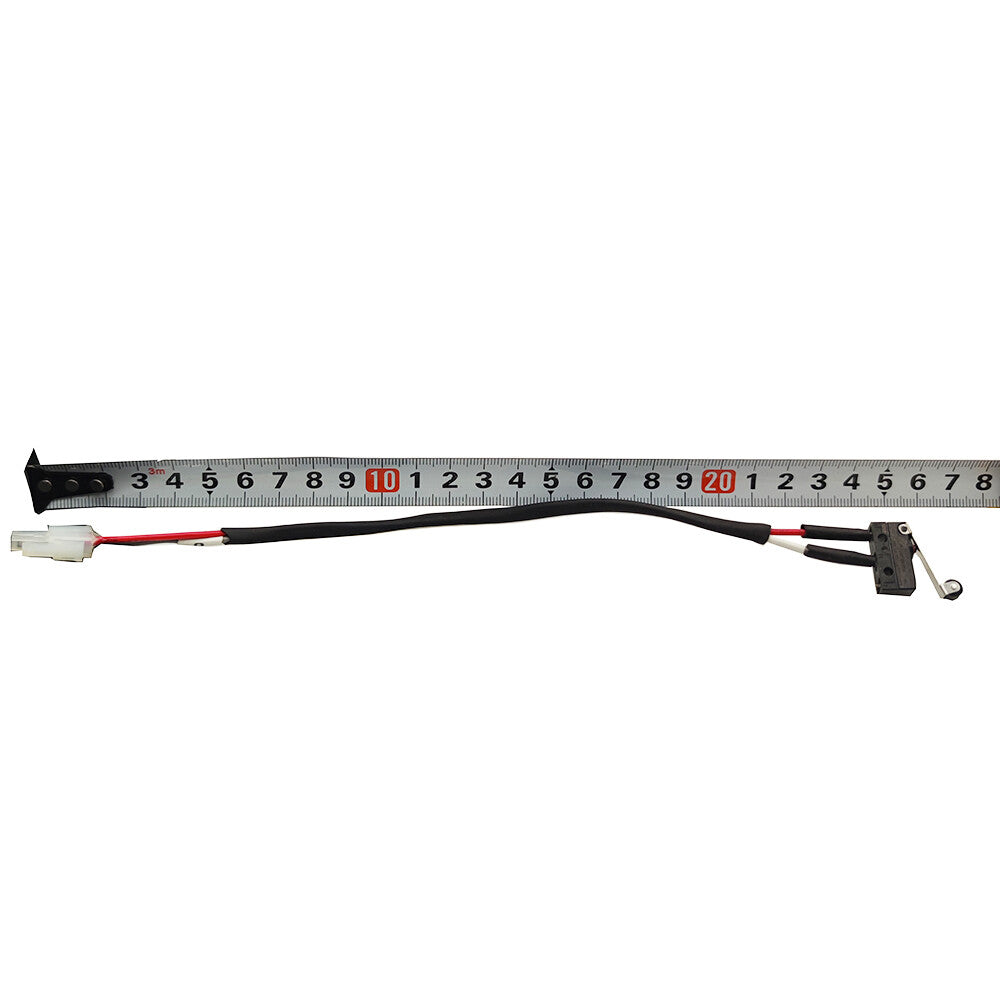

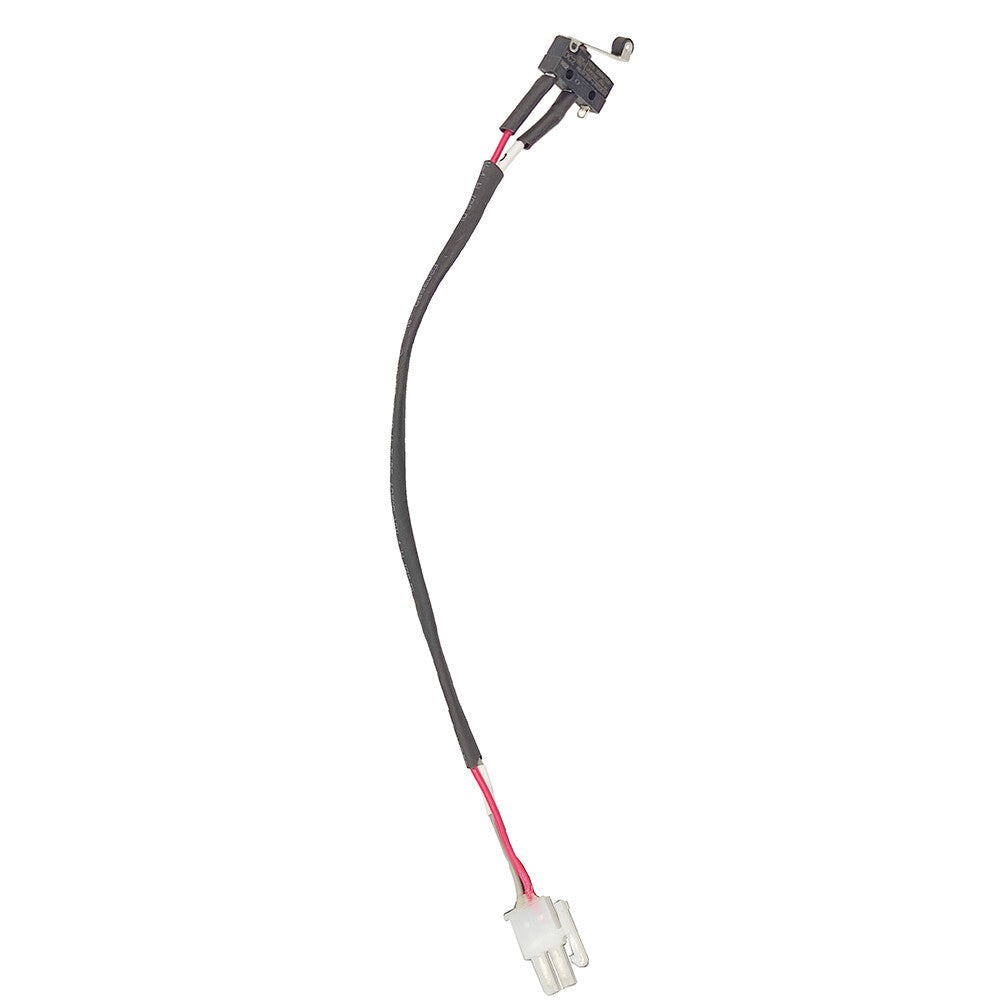

Deadman Switch Assembly 1115-520009-0A 1115-520009-00-B Fit Big Joe E30 EZ30 S22
$65.99
In Stock
$65.99
Sale price
$65.99
Regular price
Part Number(s)
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
Deadman Switch Assembly for Big Joe
This Deadman Switch Assembly is a safety control component that cuts power to the lift truck when released, enhancing operator safety during pallet handling. Built to replace OEM parts 1115-520009-0A and 1115-520009-00-B, it is designed for Big Joe E30, EZ30, and S22 series trucks.
Overview
The Deadman Switch Assembly 1115-520009-0A with cross-reference 1115-520009-00-B is a replacement safety switch for Big Joe electric walkie pallet trucks. It requires the operator to maintain pressure on the switch; releasing it immediately interrupts the electrical circuit, stopping the truck. This assembly is essential for maintaining safe operation on E30, EZ30, and S22 models.
Built For Performance
- Matches OEM part 1115-520009-0A and 1115-520009-00-B for compatibility
- Spring-loaded mechanism provides reliable return and contact separation
- Enclosed contacts resist corrosion and wear from frequent use
- Rated for low-voltage DC circuits found on battery-powered lift trucks
- Compact design fits original mounting points without modification
Fits These Machines
- for Big Joe E30
- for Big Joe EZ30
- for Big Joe S22
On-The-Job Use
- Activated by the operator's hand or foot during normal truck operation
- Prevents truck movement when operator dismounts or loses grip
- Commonly used in warehouse order picking and stock replenishment tasks
- Supports safe maneuverability in narrow aisles and dock areas
Specs At A Glance
| Part Number(s) | 1115-520009-0A; 1115-520009-00-B |
| Type | Deadman switch assembly |
| Compatible Brands | for Big Joe |
Good To Know
Q: Is this a genuine Big Joe part? A: No, this is an aftermarket replacement assembly built to match the original specifications for Big Joe models. It is designed as a substitute for OEM part numbers 1115-520009-0A and 1115-520009-00-B.
Q: What are the signs that my deadman switch needs replacing? A: If the truck moves when the switch is not pressed, or fails to stop when released, the switch may be faulty. Replacing it with this assembly restores the safety interlock function.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
