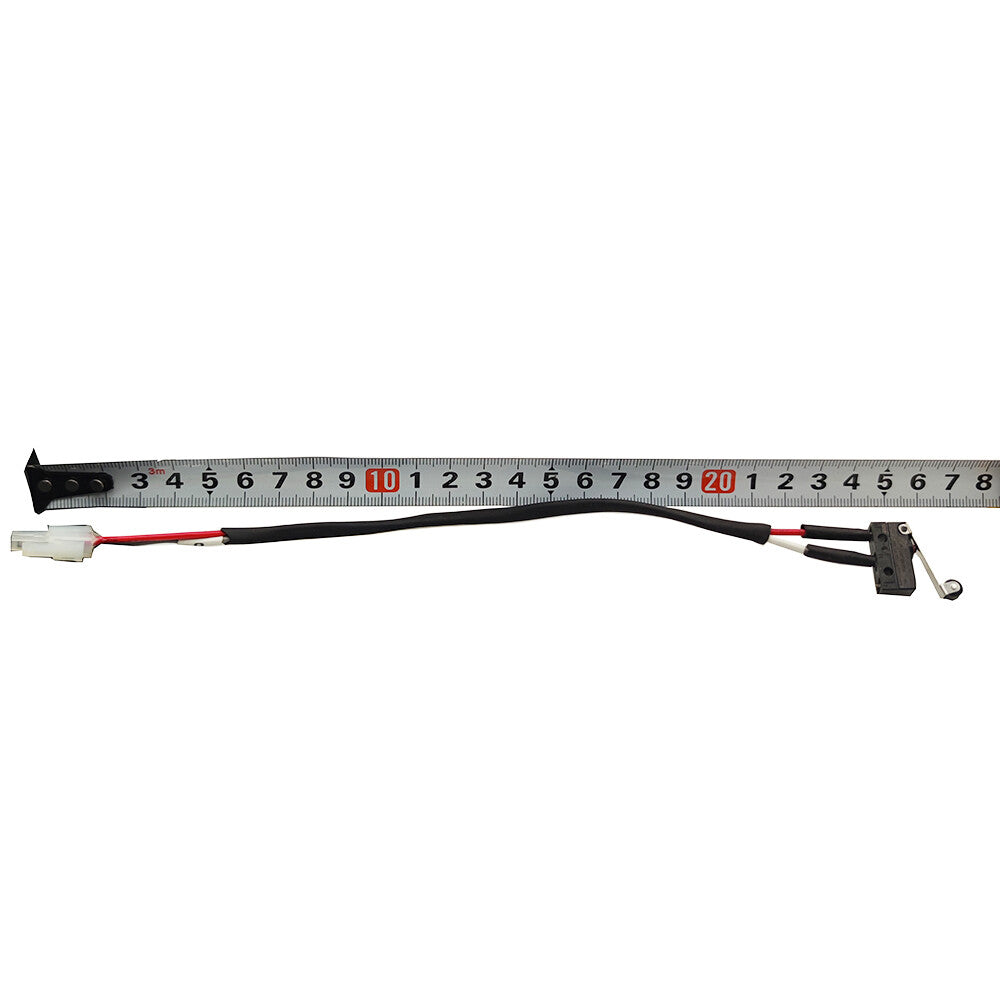

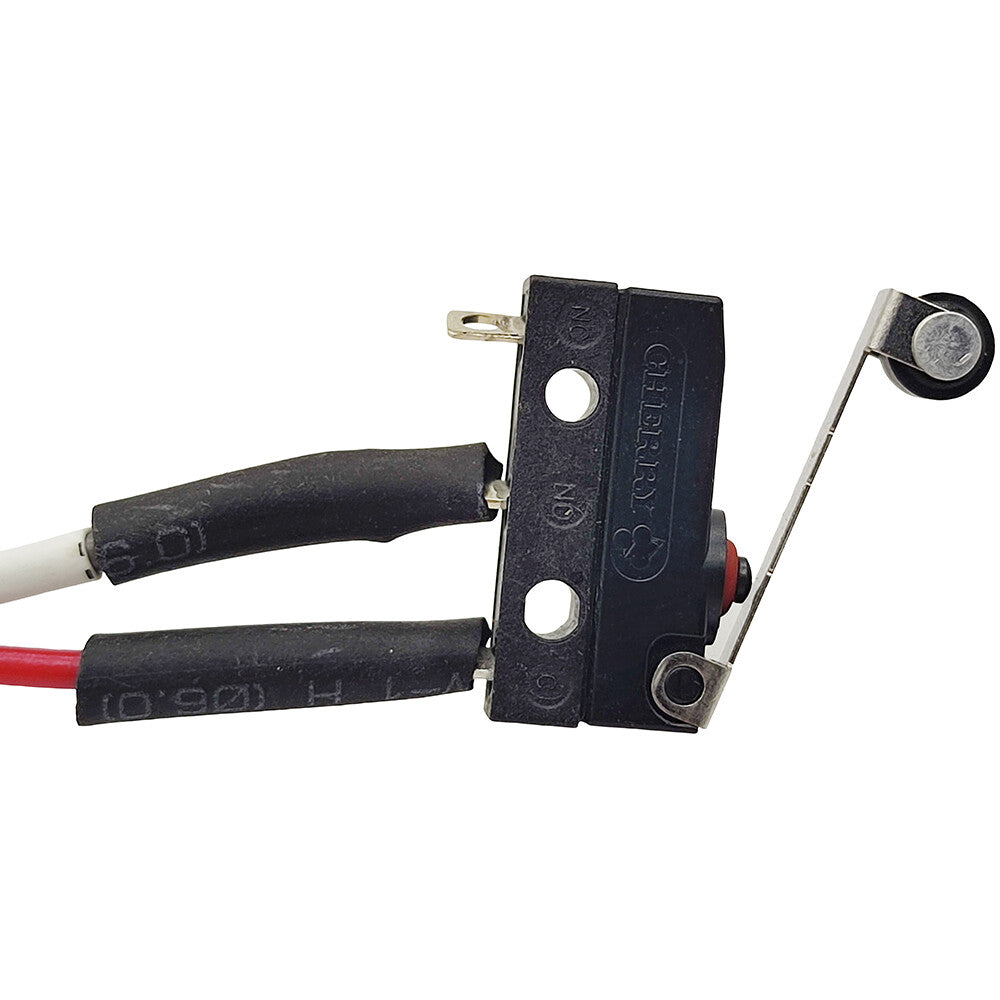

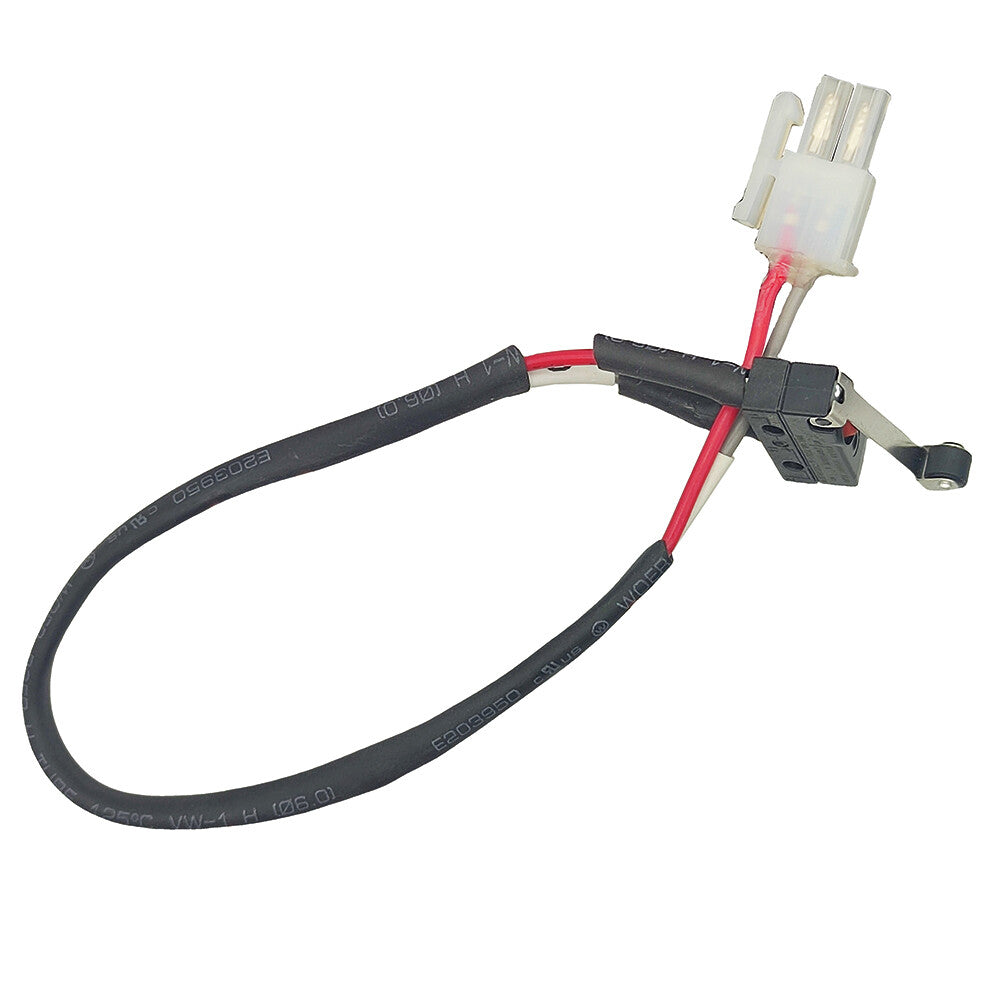

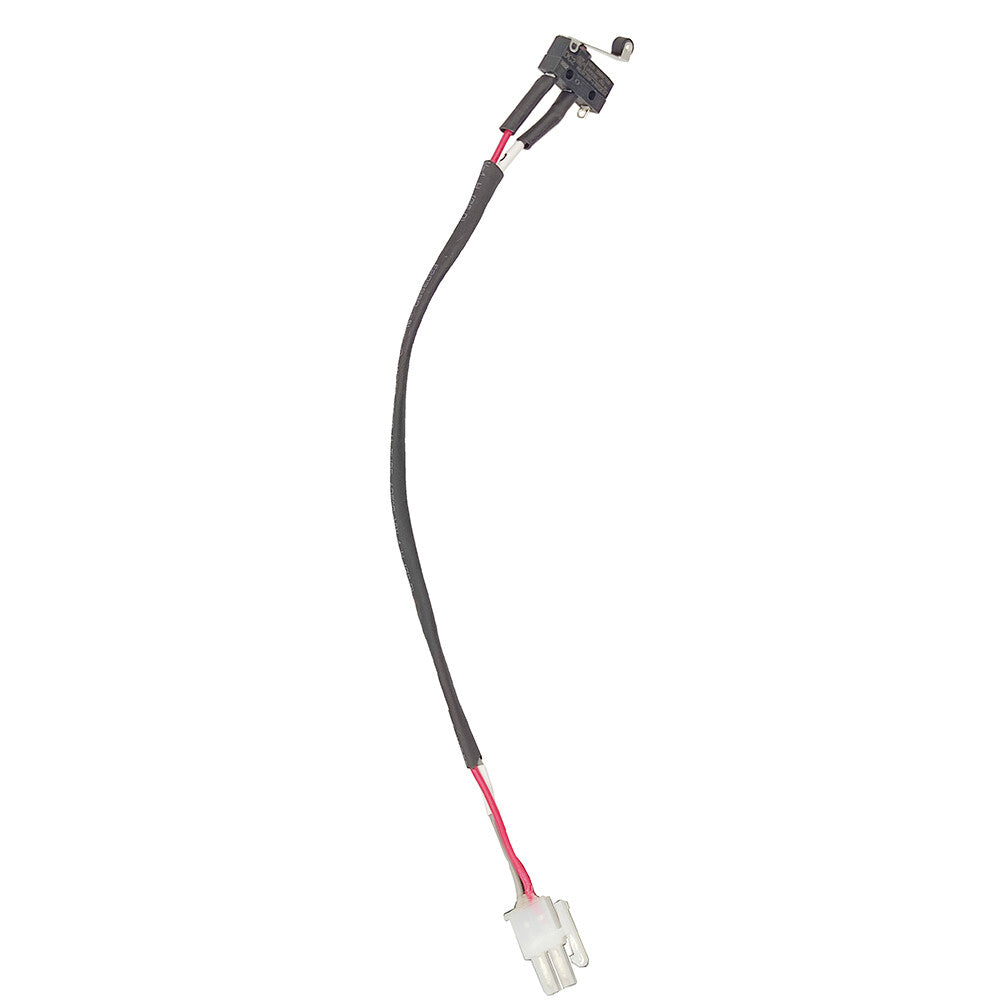

Deadman Switch Assembly 1115-520009-0A for Big Joe E30 EZ30 S22 1115-520009-00-B
$65.99
In Stock
$65.99
Sale price
$65.99
Regular price
Part Number(s)
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
Deadman Switch Assembly for Big Joe
This Deadman Switch Assembly is a replacement safety switch that interrupts power to the lift truck when the operator releases the control, helping prevent unintended movement. Designed for Big Joe walkie pallet trucks, this assembly references OEM cross-reference numbers 1115-520009-0A and 1115-520009-00-B.
Overview
The Deadman Switch Assembly 1115-520009-0A for Big Joe E30, EZ30, and S22 is a critical safety component that requires operator presence to keep the truck powered. When pressure is released from the switch, it cuts electrical power to the drive motor, stopping the truck. This assembly is a direct replacement for worn or failed deadman switches on compatible Big Joe models.
Built For Performance
- Replaces OEM part number 1115-520009-0A or 1115-520009-00-B for precise fit
- Normally open contact design ensures power only flows when the switch is pressed
- Heavy-duty contacts rated for repeated actuation cycles in industrial use
- Robust housing protects against dust, debris, and impact in warehouse environments
- Direct bolt-on installation with standard hand tools
Fits These Machines
- for Big Joe E30
- for Big Joe EZ30
- for Big Joe S22
On-The-Job Use
- Used on walkie pallet jacks to halt travel when the operator steps off
- Provides a safety interlock during loading and unloading operations at loading docks
- Engages automatically when the operator grips the control handle for travel
- Helps meet workplace safety standards for pedestrian-operated forklifts
Specs At A Glance
| Part Number(s) | 1115-520009-0A; 1115-520009-00-B |
| Type | Deadman switch assembly |
| Compatible Brands | for Big Joe |
Good To Know
Q: What does this deadman switch assembly do? A: It acts as a safety interlock that disables the truck's drive system when the operator is not pressing the switch, preventing runaway movement. Replacing a faulty switch restores this essential safety function.
Q: How do I know if this assembly fits my lift? A: This part is listed for Big Joe E30, EZ30, and S22 models, but verifying your serial number against the OEM reference numbers 1115-520009-0A or 1115-520009-00-B is recommended before installation.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
