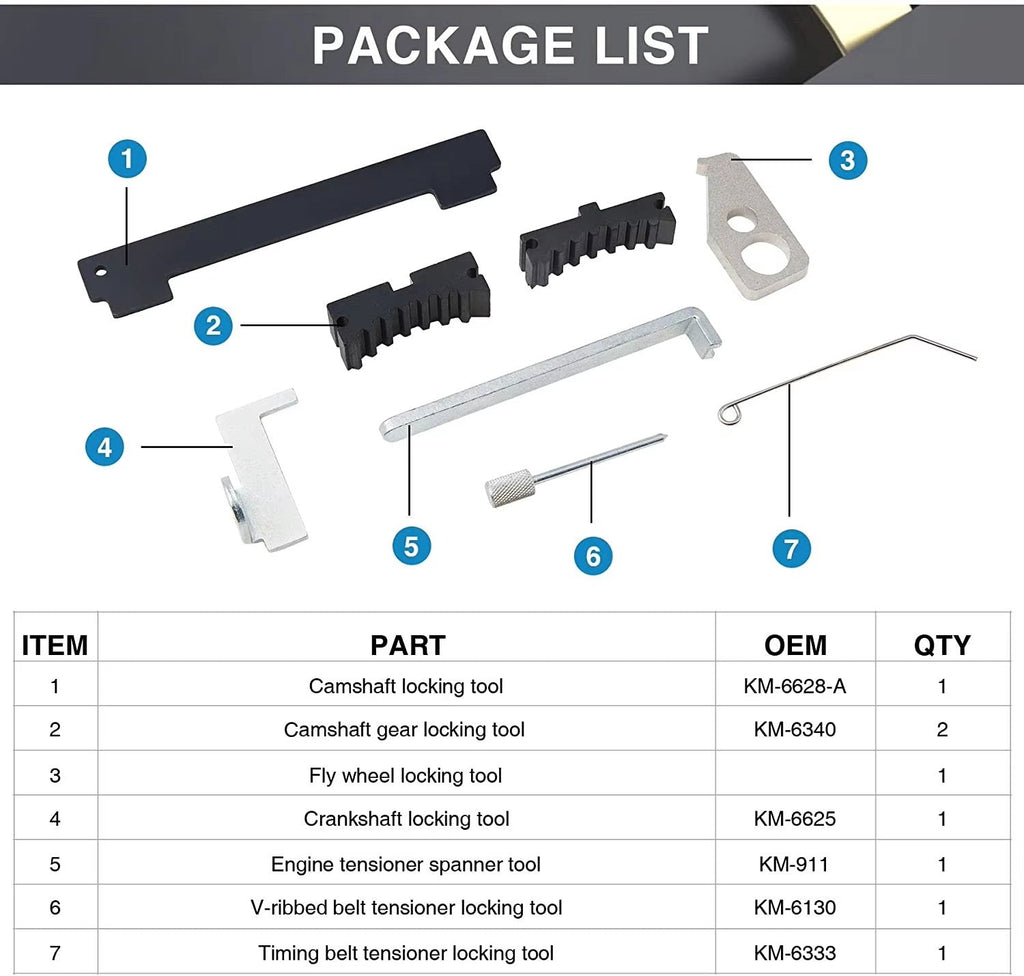

For Chevrolet 16V 1.6 1.8 Camshaft Tensioning Locking Alignment Timing Tool Set
$55.29
In Stock
$55.29
Sale price
$55.29
Regular price
Tool Type
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
Camshaft Tensioning Locking Alignment Timing Tool Set for Chevrolet
This Camshaft Tensioning Locking Alignment Timing Tool Set for Chevrolet 16V 1.6 1.8 engines is a comprehensive tool kit designed to lock the camshafts and tensioner during timing belt or chain service. Use this tool set to ensure accurate camshaft alignment and safe timing maintenance on compatible Chevrolet applications.
Overview
This timing tool set for Chevrolet 16V 1.6 and 1.8 engines provides the necessary fixtures to hold the camshafts and tensioner in place while performing timing belt or chain replacement. It is intended for technicians and DIYers who need precise camshaft locking and alignment during engine service. The set helps prevent valve and piston damage by securing the valvetrain during repairs.
Built For Performance
- Precisely machined locking pins and blocks for secure camshaft fixation
- Rigid steel construction resists flexing under load
- Compatible with DOHC 16V cylinder head layouts
- Includes tensioner adjustment tooling for correct belt or chain tension
- Color-coded or labeled components for quick identification
Fits These Machines
- for Chevrolet 1.6L 16V engines
- for Chevrolet 1.8L 16V engines
On-The-Job Use
- Timing belt replacement on Chevrolet 1.6L and 1.8L engines
- Timing chain service requiring camshaft locking
- Valve timing verification during engine reassembly
- Camshaft seal replacement without losing timing reference
Specs At A Glance
| Tool Type | Camshaft locking and alignment set |
| Engine Compatibility | 1.6L and 1.8L 16V Chevrolet |
| Material | Hardened steel |
Good To Know
Q: Will this set work for a 1.4L version of the same engine family? A: No, this set is specifically designed for 1.6L and 1.8L 16V engines. Using it on other displacements may lead to improper alignment.
Q: Can I use this with the timing belt still installed? A: It is recommended to install the locking tools before removing the old belt, which maintains the camshaft relationship. This helps ensure correct timing upon reassembly.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
