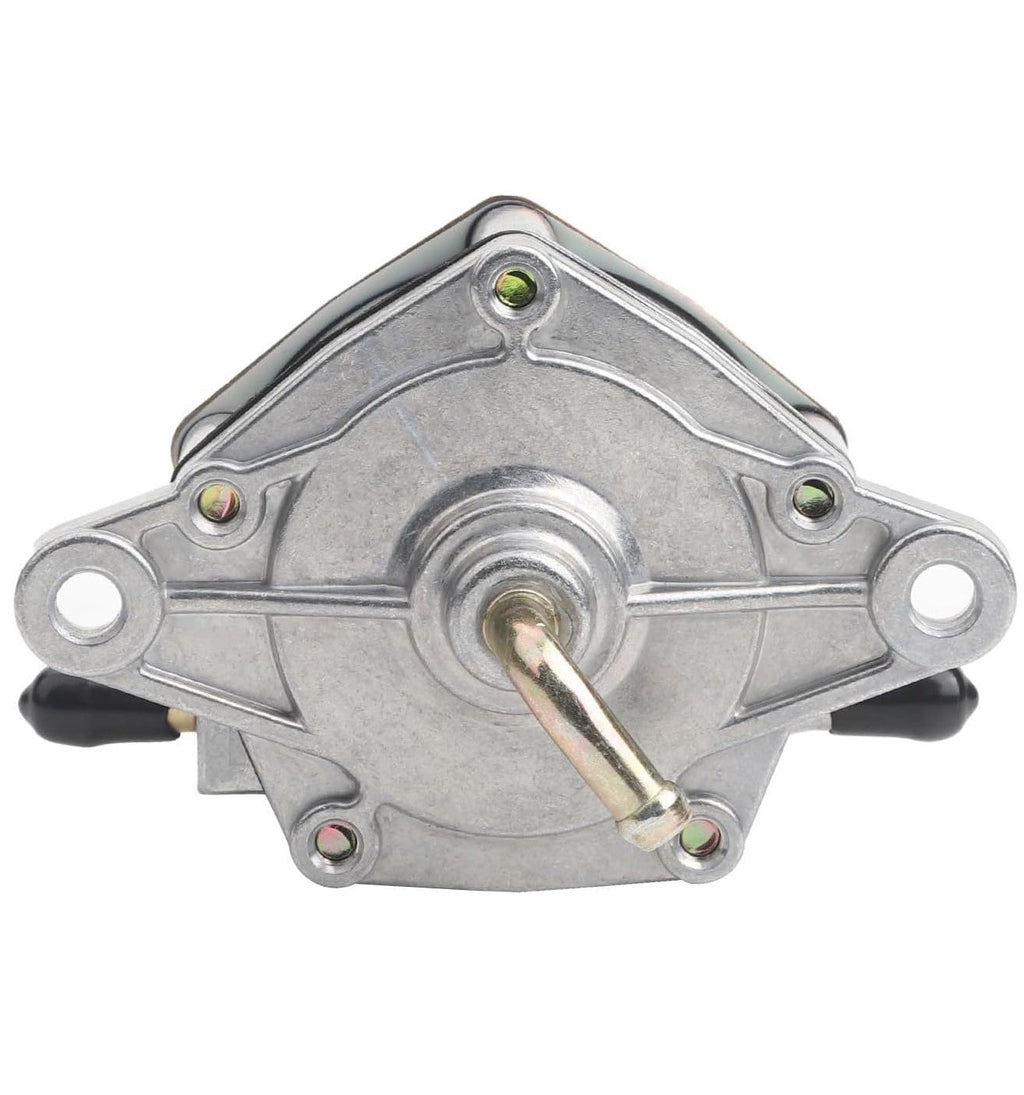

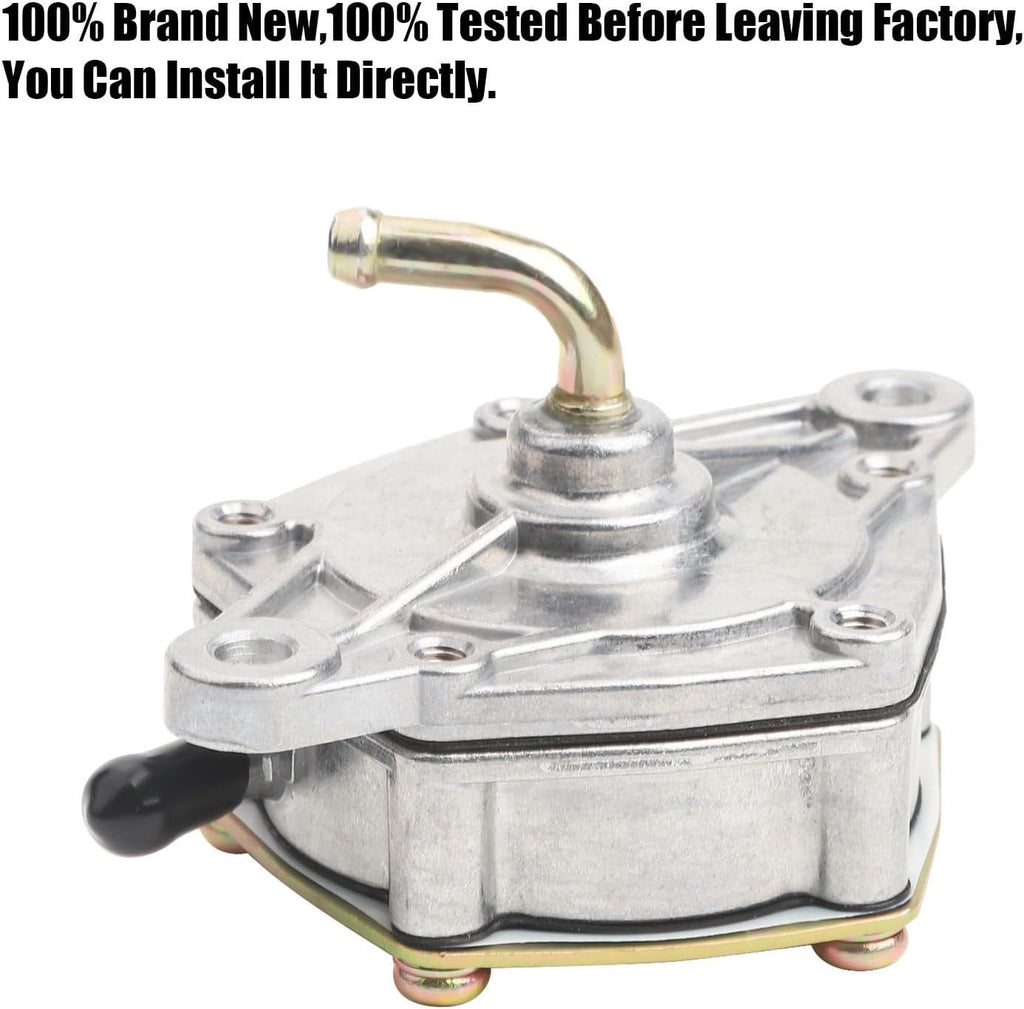

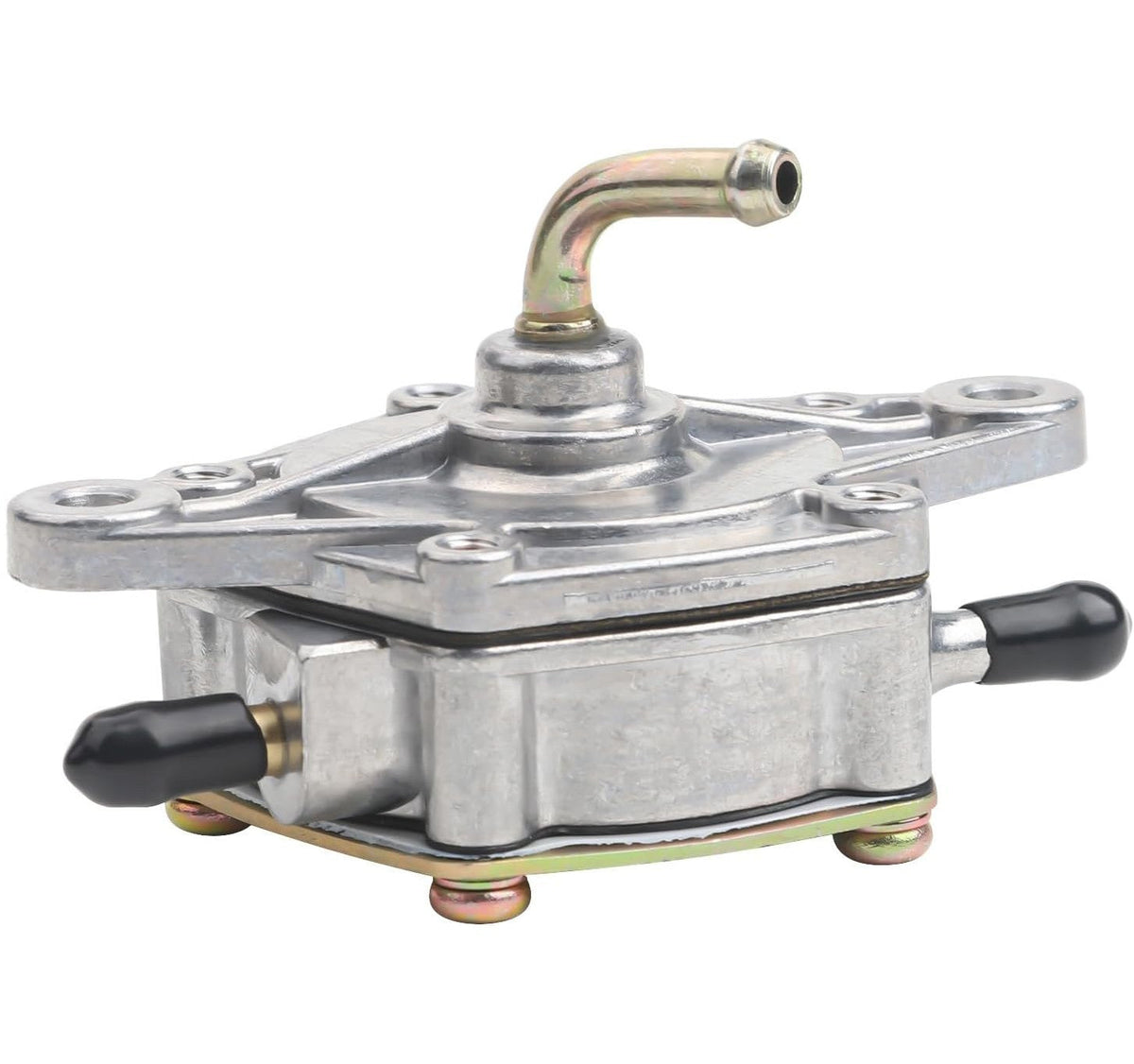

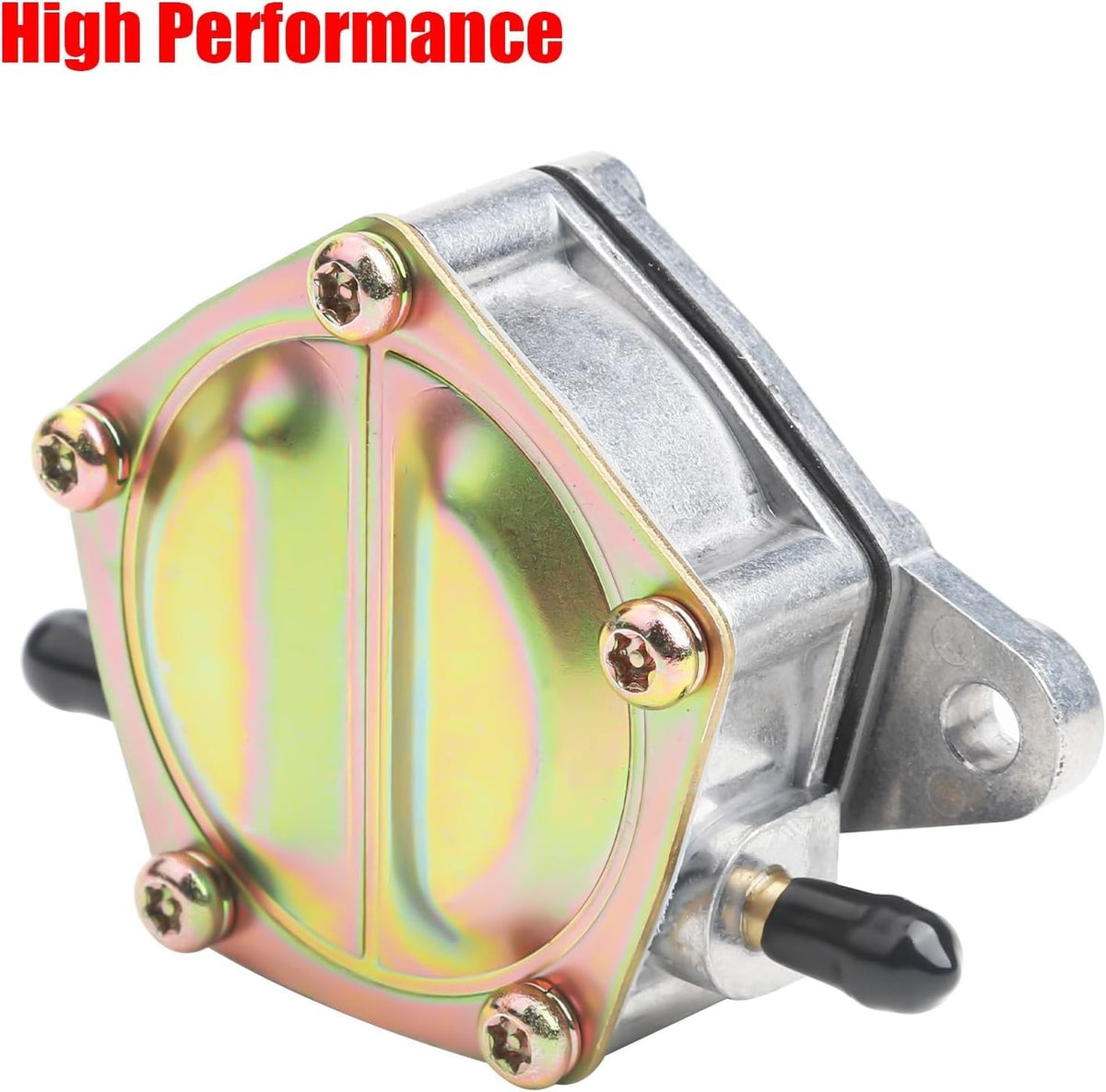

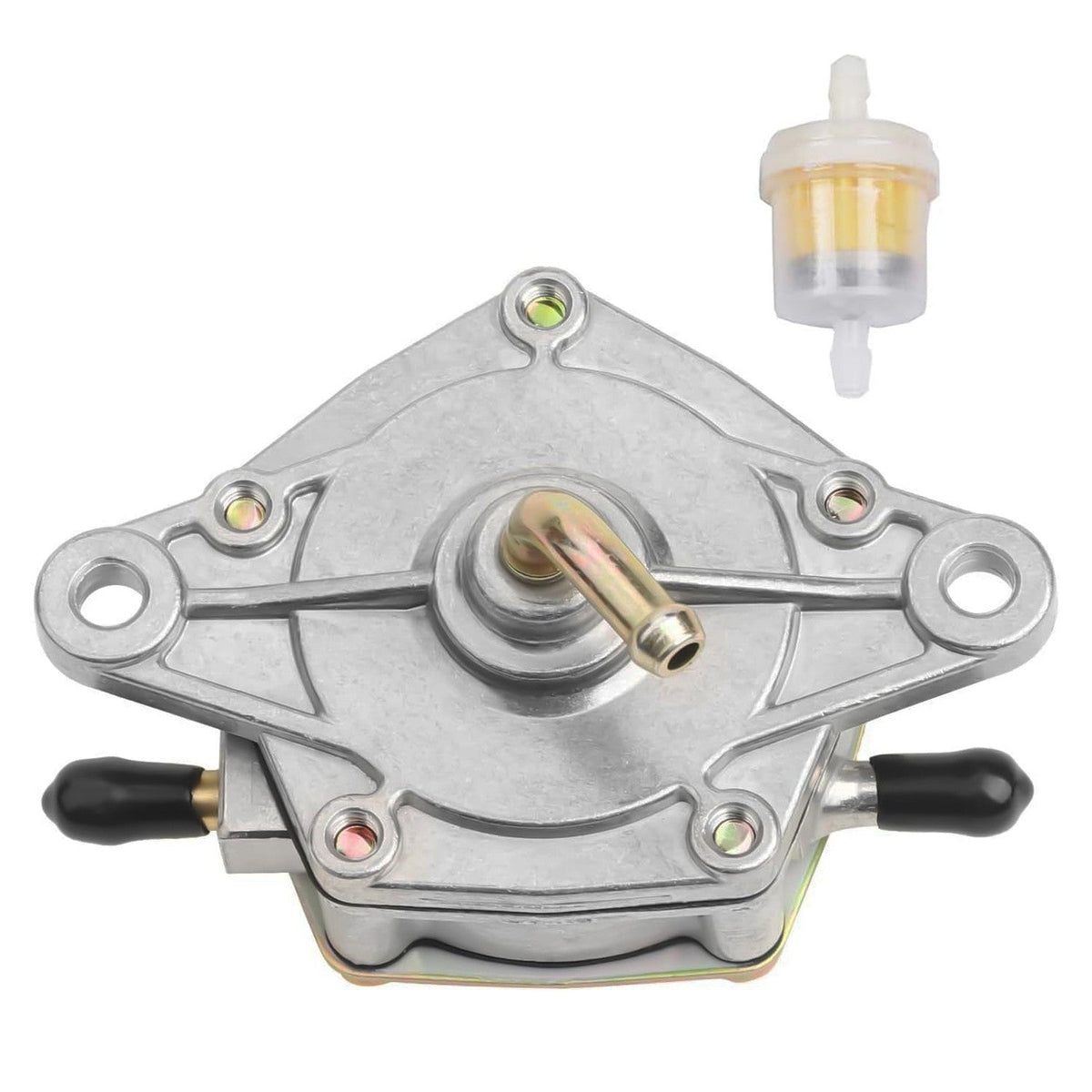

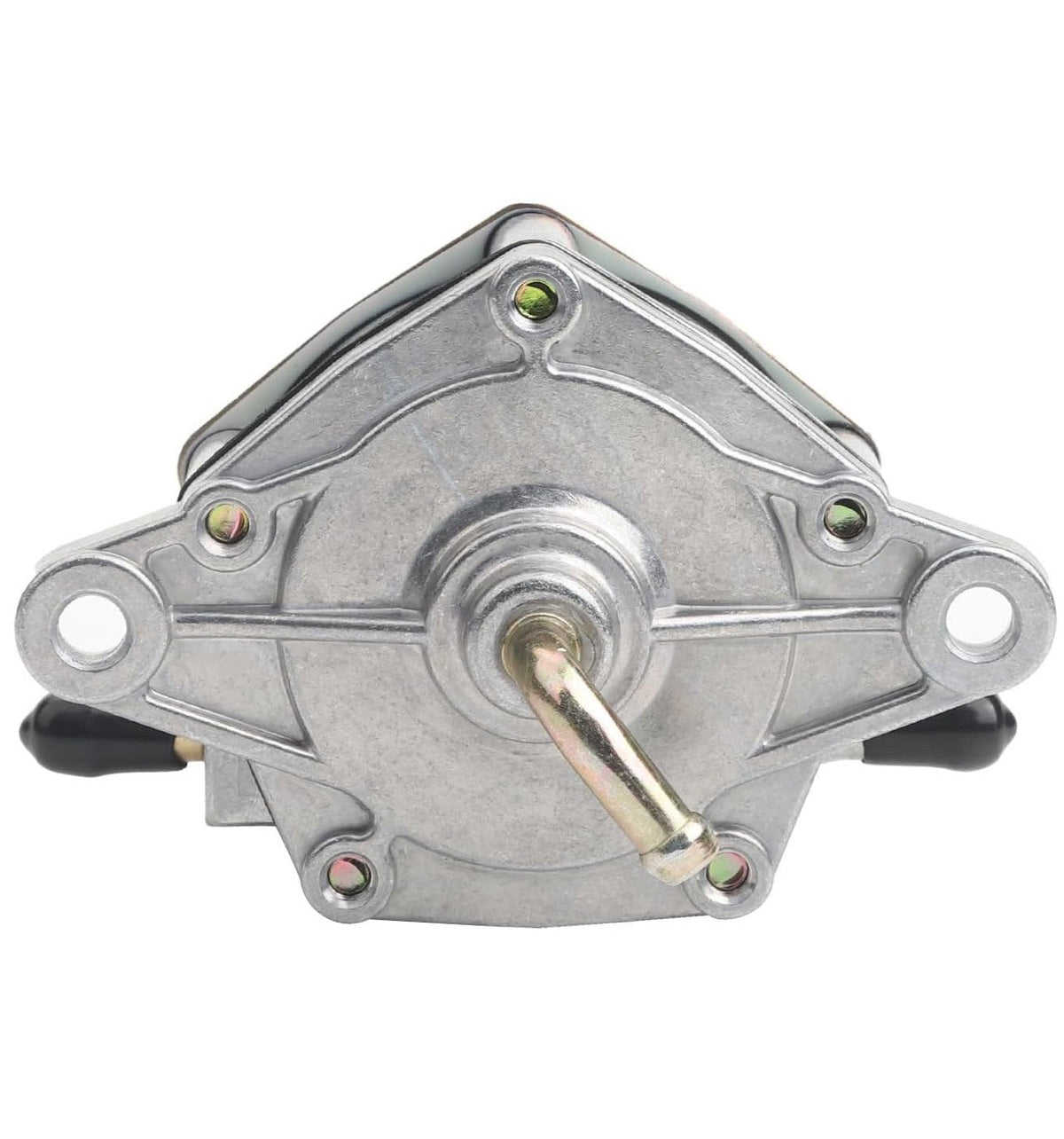

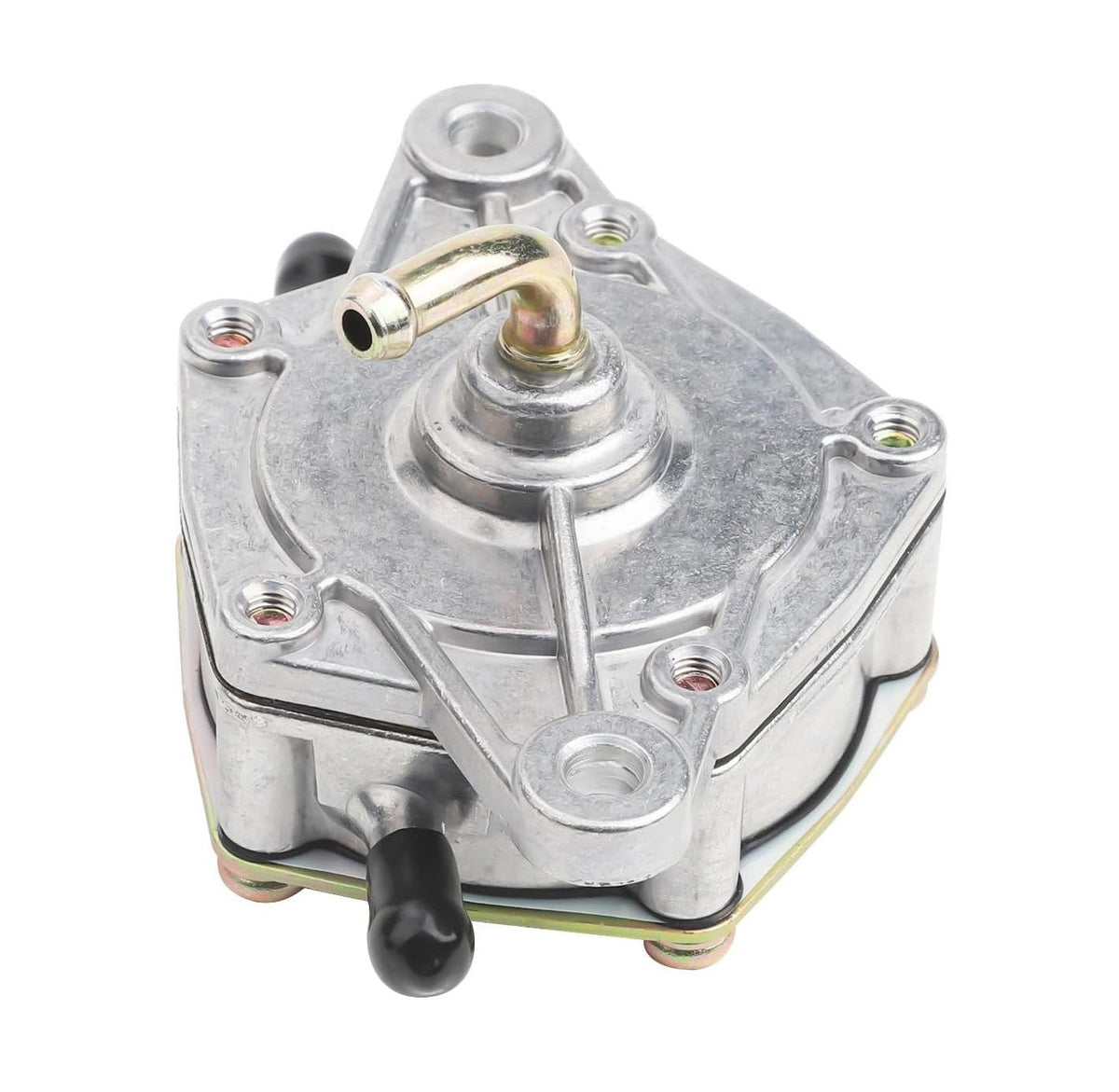

Fuel Pump Assembly for Suzuki LT-4WD LT-F 250 300 King Quadrunner 15100-19B01
$44.59
In Stock
$44.59
Sale price
$44.59
Regular price
Part Number(s)
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
Fuel Pump Assembly for Suzuki LT-4WD LT-F 250 300 King Quadrunner
This fuel pump assembly provides reliable fuel delivery for Suzuki LT-4WD, LT-F 250, and LT-F 300 King Quadrunner models, referencing OEM part 15100-19B01. It serves as a direct replacement for a worn or failing factory pump, ensuring consistent pressure and flow to the carburetor. The assembly is built to handle the demands of off-road utility riding.
Overview
This fuel pump assembly for Suzuki LT-4WD and LT-F 250/300 King Quadrunner is a mechanical diaphragm pump that moves fuel from the tank to the carburetor using engine vacuum pulses. It is designed to match the performance of the original pump, with the corresponding OEM cross-reference 15100-19B01 for easy confirmation. The pump is suitable for ATVs used in trail riding, farm work, and recreational off-road use.
Built For Performance
- Direct replacement design matches original mounting points and hose connections
- Diaphragm construction responds to engine vacuum for consistent fuel flow
- Built-in fuel strainer helps filter debris before it reaches the carburetor
- Sealed housing resists fuel degradation and vibration damage
- OEM cross-reference number 15100-19B01 ensures fitment verification
Fits These Machines
- for Suzuki LT-4WD
- for Suzuki LT-F 250 King Quadrunner
- for Suzuki LT-F 300 King Quadrunner
On-The-Job Use
- Restores fuel delivery on deceleration and low-speed trail riding
- Ensures steady idle and smooth throttle response during loaded hauling
- Replacement for worn pumps causing sputtering or hard starting
- Useful during routine maintenance on high-mileage utility ATVs
Specs At A Glance
| Part Number(s) | 15100-19B01 |
| Type | Mechanical vacuum diaphragm fuel pump |
| Compatible Models | Suzuki LT-4WD, LT-F 250, LT-F 300 King Quadrunner |
Good To Know
Q: Is this fuel pump an exact OEM replacement? A: The assembly is built to match the function and fit of the original part, numbered as OEM 15100-19B01, but it is an aftermarket component for Suzuki models, not a genuine Suzuki product.
Q: What signs indicate the fuel pump needs replacement? A: Hard starting, sputtering at speed, or visible fuel leaks near the pump area are common symptoms of a failing diaphragm pump.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
