Non-Illuminated Momentary Rocker Switch VLD1S00B-AZC00-000 DPDT 20A 12VDC Sealed
$30.79
Sale price
$30.79
Regular price
Skip to product information
SKU:
ZZ3F00504
Same day shipping if ordered by 4PM CST.
Non-Illuminated Momentary Rocker Switch VLD1S00B-AZC00-000 DPDT 20A 12VDC Sealed
$30.79
In Stock
$30.79
Sale price
$30.79
Regular price
Part Number(s)
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
Non-Illuminated Momentary Rocker Switch VLD1S00B-AZC00-000 for DPDT 20A 12VDC Sealed

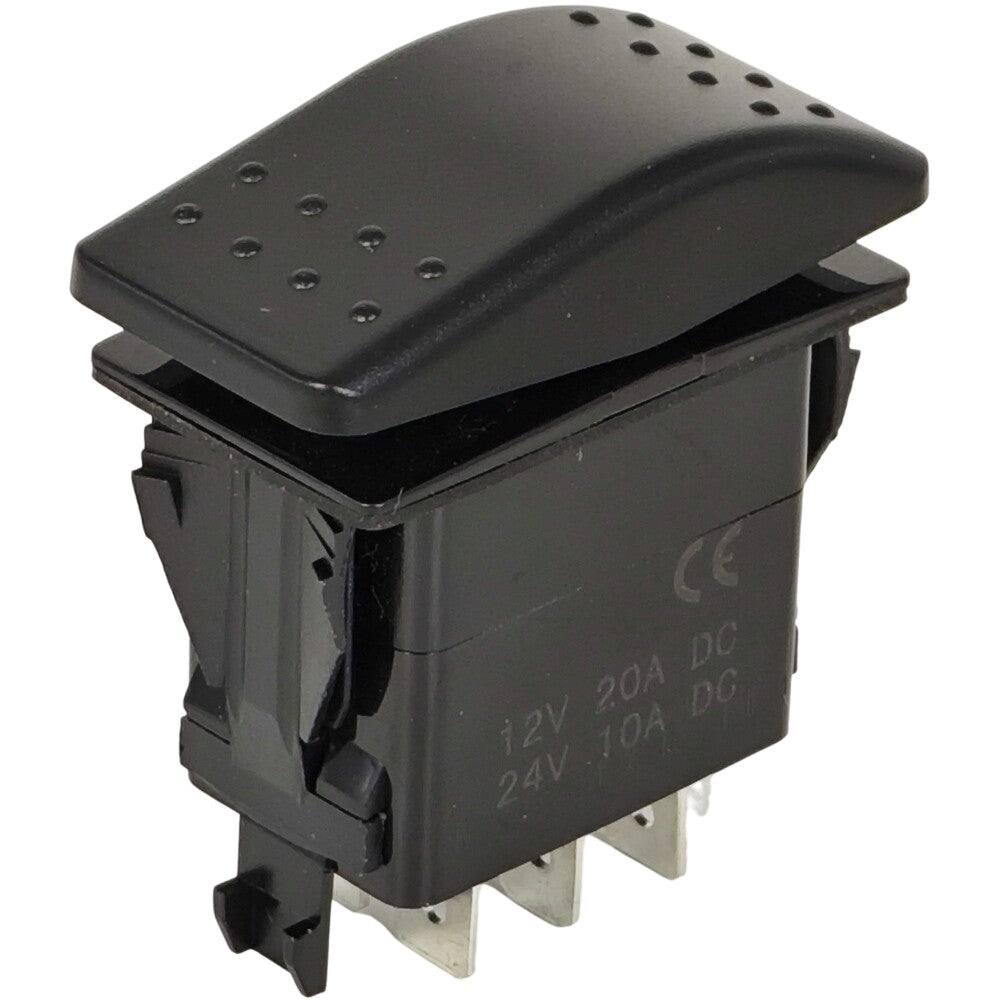

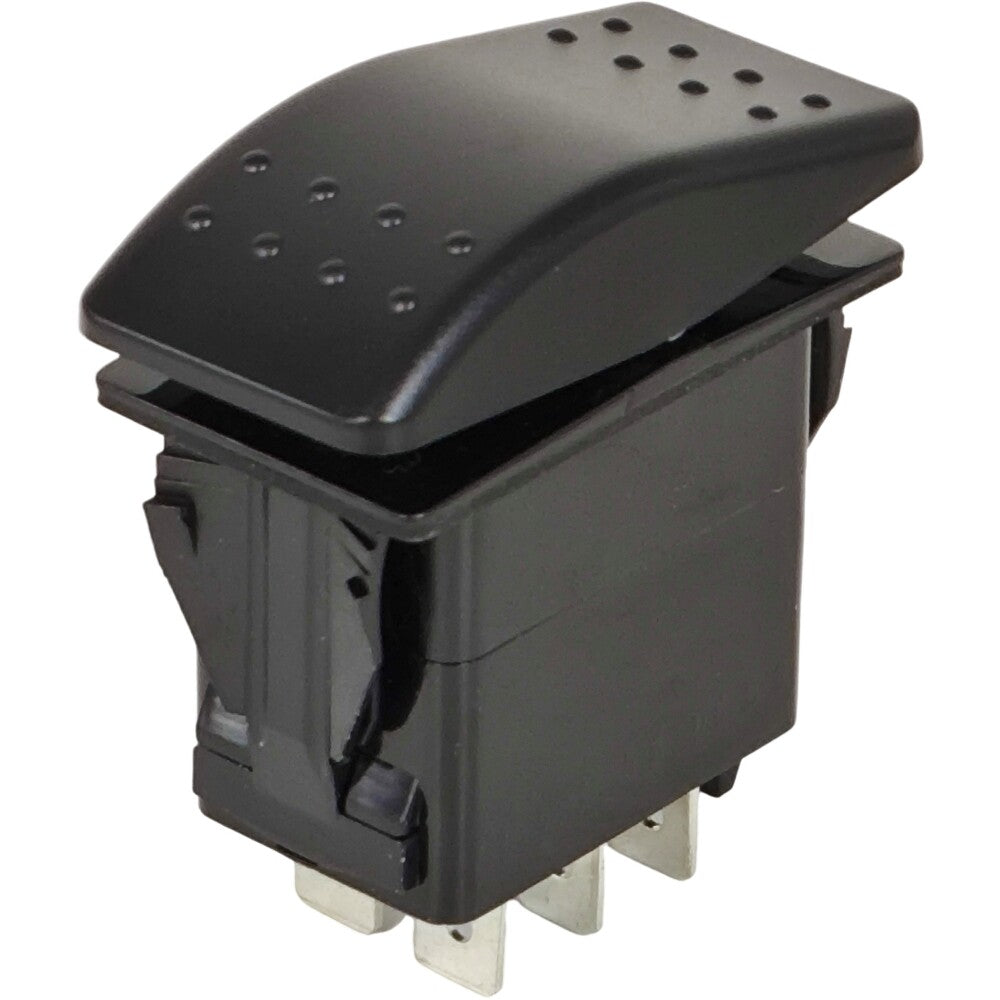

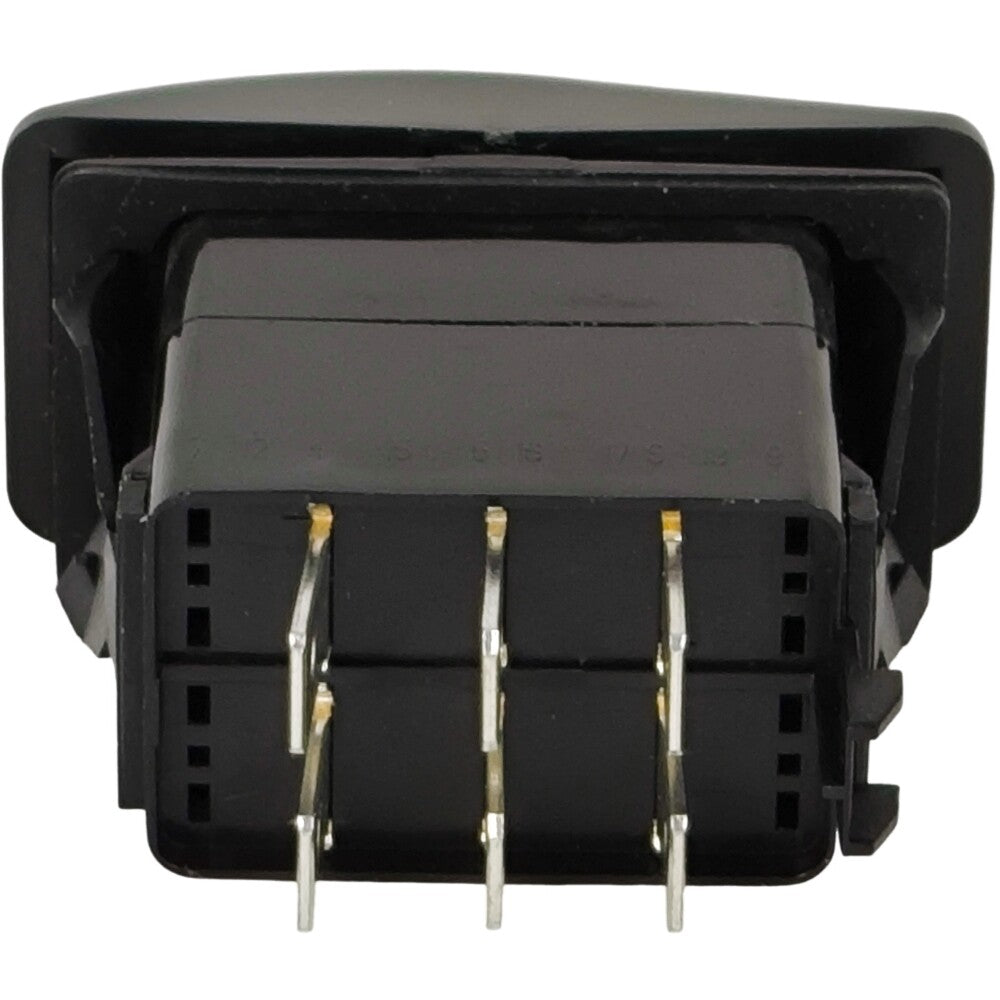

This is a non-illuminated momentary rocker switch, model VLD1S00B-AZC00-000, a DPDT switch rated for 20A at 12VDC, designed for sealed panel mounting. It provides reliable momentary switching action for a variety of electrical circuits. The switch is built to handle demanding applications requiring a robust, sealed rocker actuator.
Overview
This non-illuminated momentary rocker switch is a DPDT (double-pole, double-throw) component rated at 20A and 12VDC, designed to make or break a circuit only while pressed. Its sealed construction protects against moisture and dust, making it suitable for demanding environments. It is the direct replacement part number VLD1S00B-AZC00-000 for control panels, marine equipment, and automotive electrical systems.
Built For Performance
- DPDT contact configuration for switching two independent circuits
- 20A at 12VDC high-current rating for demanding loads
- Sealed body protects against ingress of water and contaminants
- Momentary action returns switch to off position when released
- Non-illuminated actuator for simple, reliable operation
- Standard rocker panel cutout for easy installation
Fits These Machines
- for Carling Technologies VLD1 series switch panels
- for marine control consoles
- for automotive auxiliary lighting systems
- for industrial machinery control panels
On-The-Job Use
- Activate starter or momentary relays in vehicles
- Control hydraulic or pneumatic solenoids in industrial equipment
- Operate trim tabs or windlass on boats
- Trigger momentary signals for electronics
Specs At A Glance
| Part Number(s) | VLD1S00B-AZC00-000 |
| Switch Type | Non-illuminated momentary rocker |
| Circuit Configuration | DPDT |
| Current Rating | 20A |
| Voltage Rating | 12VDC |
Good To Know
Q: What does a momentary rocker switch do? A: A momentary switch only maintains electrical contact while it is being pressed, returning to its default off position as soon as you release it. This is critical for applications like a horn button or a starter circuit that should not stay latched on.
Q: How does the sealed construction affect installation? A: The sealed housing prevents dirt and moisture from entering the switch body, which is essential for maintaining reliable performance in wet or dusty locations. This sealing also helps protect the internal contacts from corrosion.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
