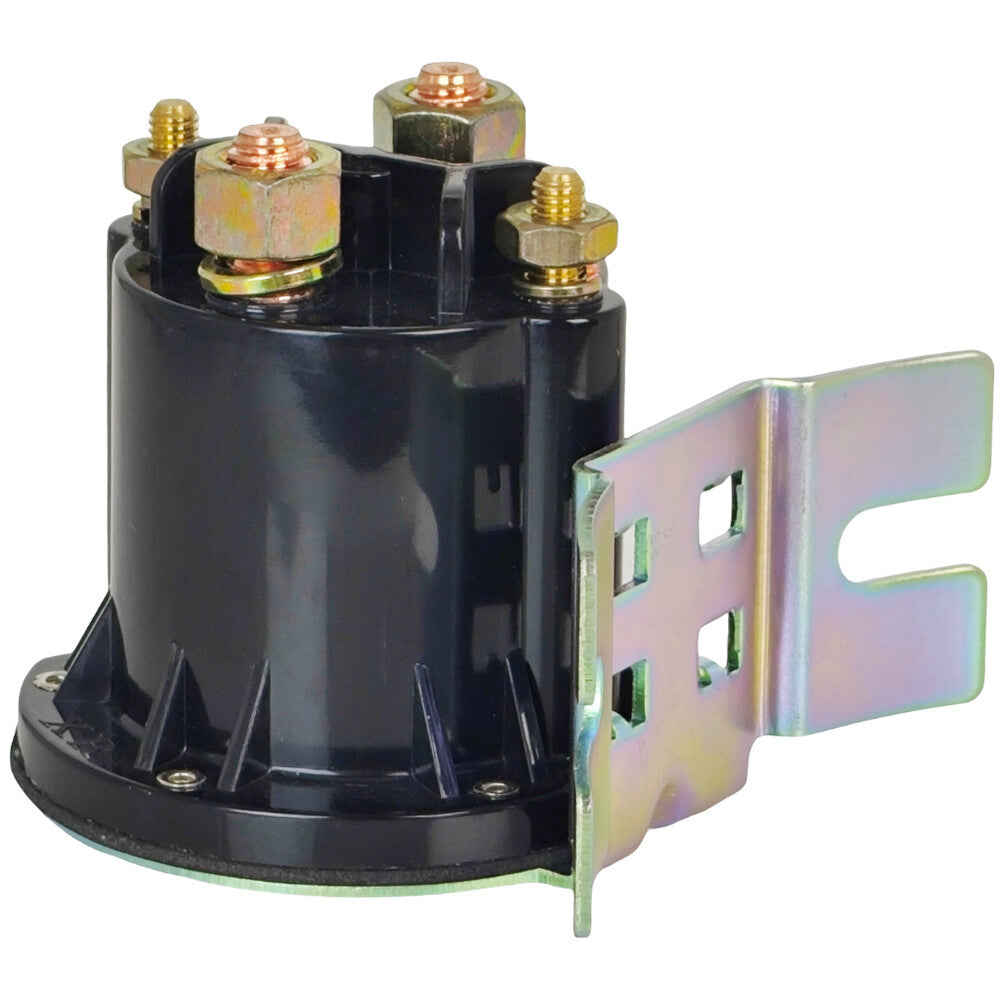

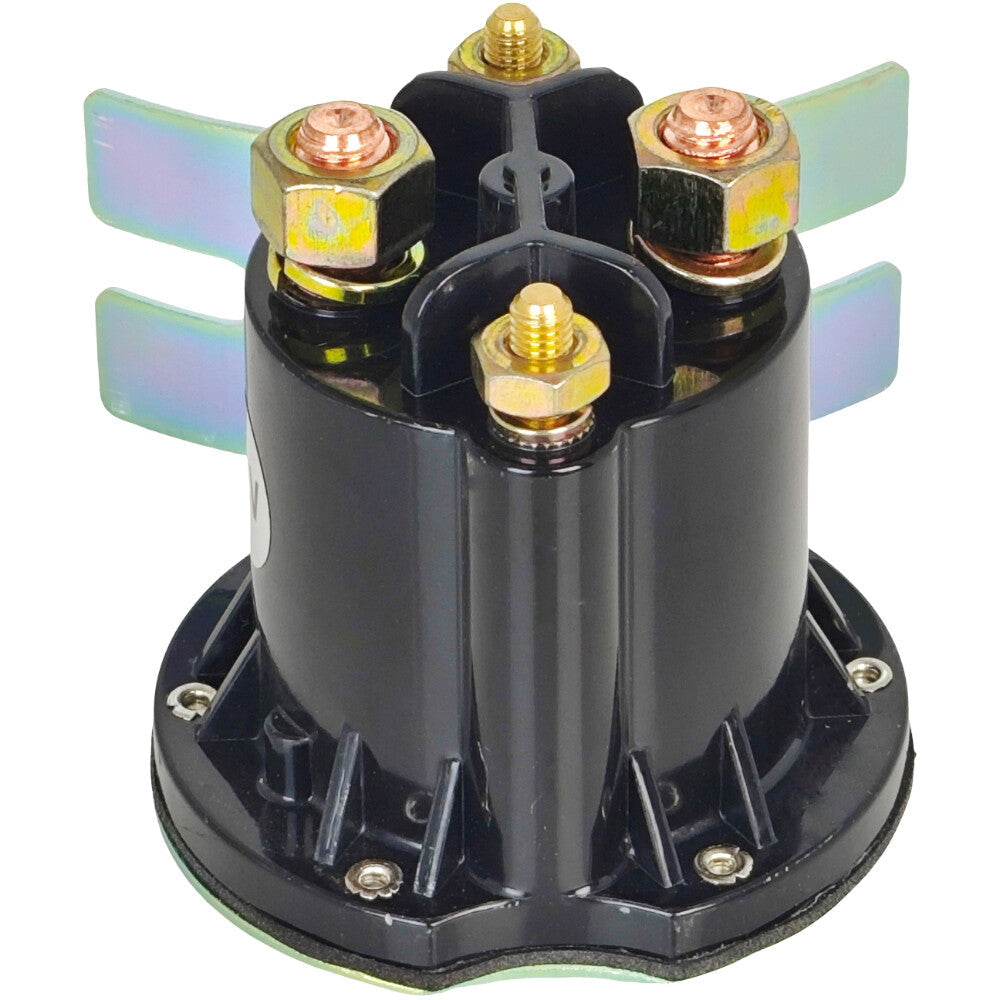

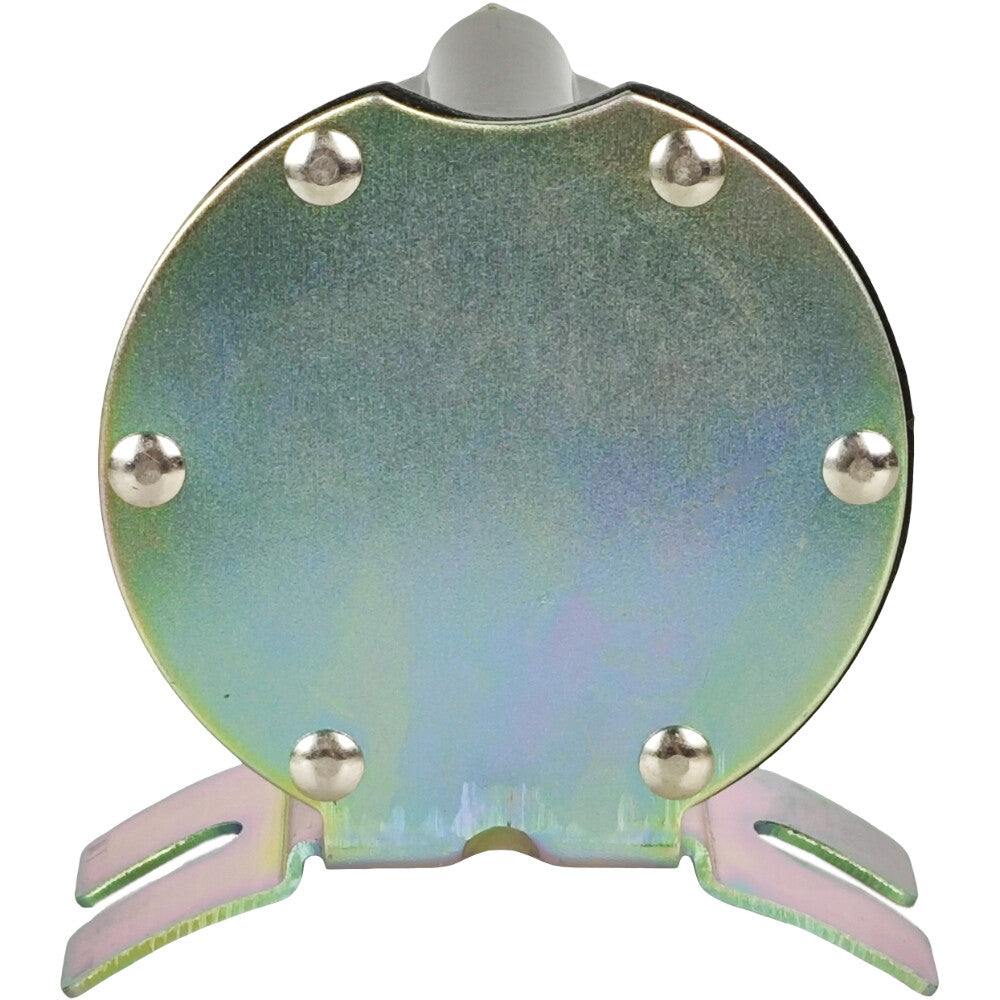

Trombetta Solenoid Relay Switch 684-1211-212-06 M008636-000 684121121206

This Trombetta solenoid relay switch is a heavy-duty electromechanical component that controls high-current circuits in diesel engines, starting motors, and industrial equipment, referencing OEM cross numbers 684-1211-212-06, M008636-000, and 684121121206.

Overview

This solenoid relay switch for Trombetta engages and disengages electrical circuits that manage starter motors, glow plugs, and battery power in heavy-duty machinery. It is built for a range of construction, agricultural, and industrial applications where reliable switching under high amperage is critical. The component uses a sealed coil and robust contacts to handle repeated cycling in demanding environments.

Built For Performance

• Continuous duty cycle rated for sustained operation during long work shifts
• Sealed housing protects internal coil and contacts from dirt, moisture, and vibration
• High-current contact rated for heavy electrical loads common in diesel starting systems
• Brass terminals provide corrosion resistance and secure wiring connections
• Compact footprint simplifies mounting in tight engine compartments

Fits These Machines

• For industrial diesel engines using Trombetta solenoid relay switch cross-reference 684-1211-212-06

On-The-Job Use

• Use in starter motor circuits to engage the starter gear and crank the engine
• Use in battery disconnect systems to safely isolate electrical power during maintenance
• Use in glow plug control circuits for cold-weather starting in diesel tractors and generators
• Use in hydraulic pump and lift systems that require remote switching of high-current loads

Specs At A Glance

Good To Know

Q: How do I test this solenoid relay switch before installing it? A: Apply battery voltage to the coil terminals and listen for an audible click, then use a multimeter to check continuity across the main contacts when energized. If no click or continuity appears, the solenoid is likely faulty.

Q: Does the mounting orientation affect operation? A: This solenoid relay switch can be mounted in any orientation, but keeping the terminals pointing downward helps prevent moisture and debris from entering the housing.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
