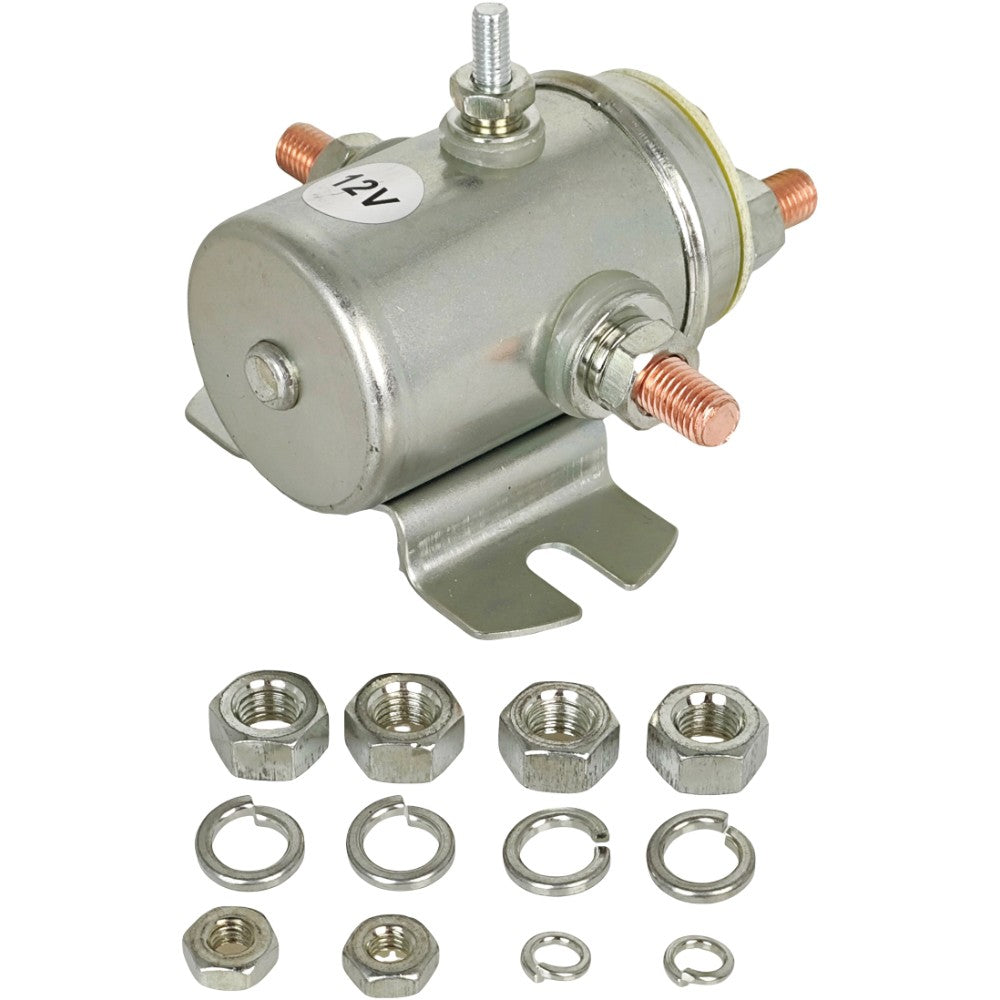

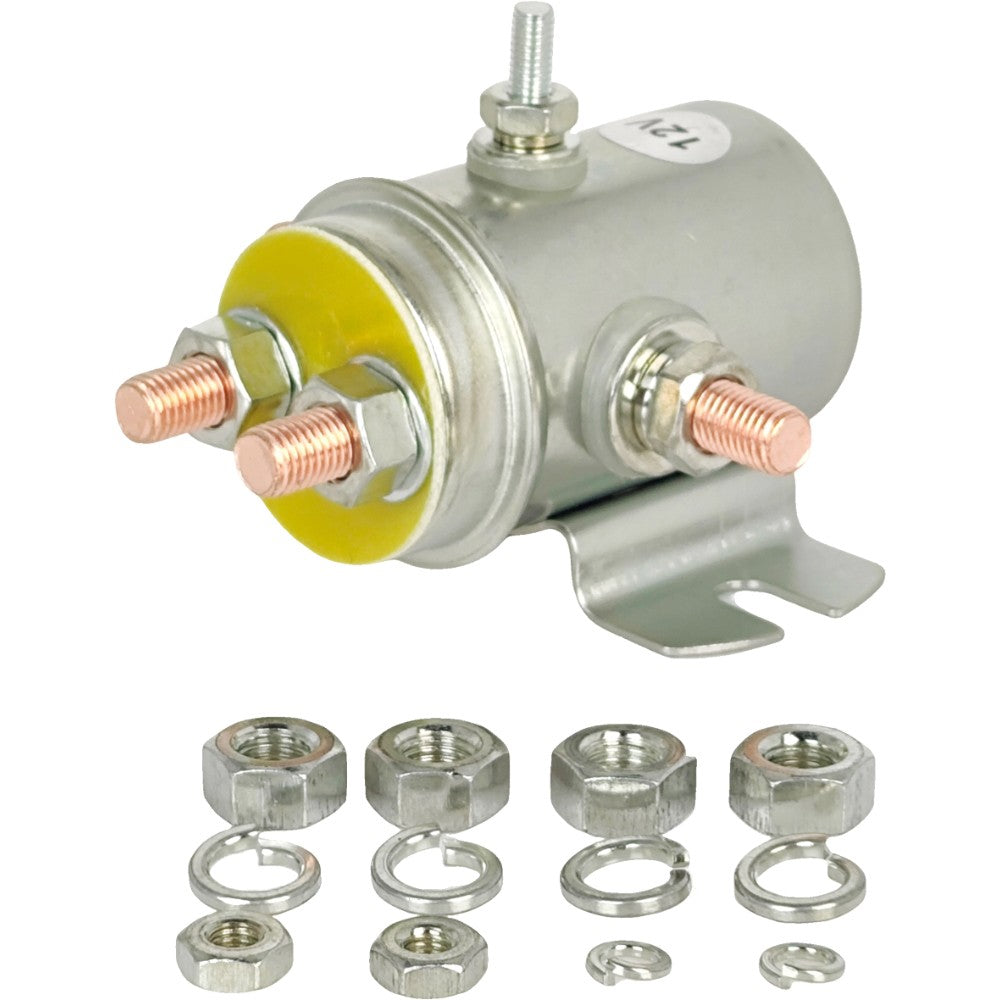

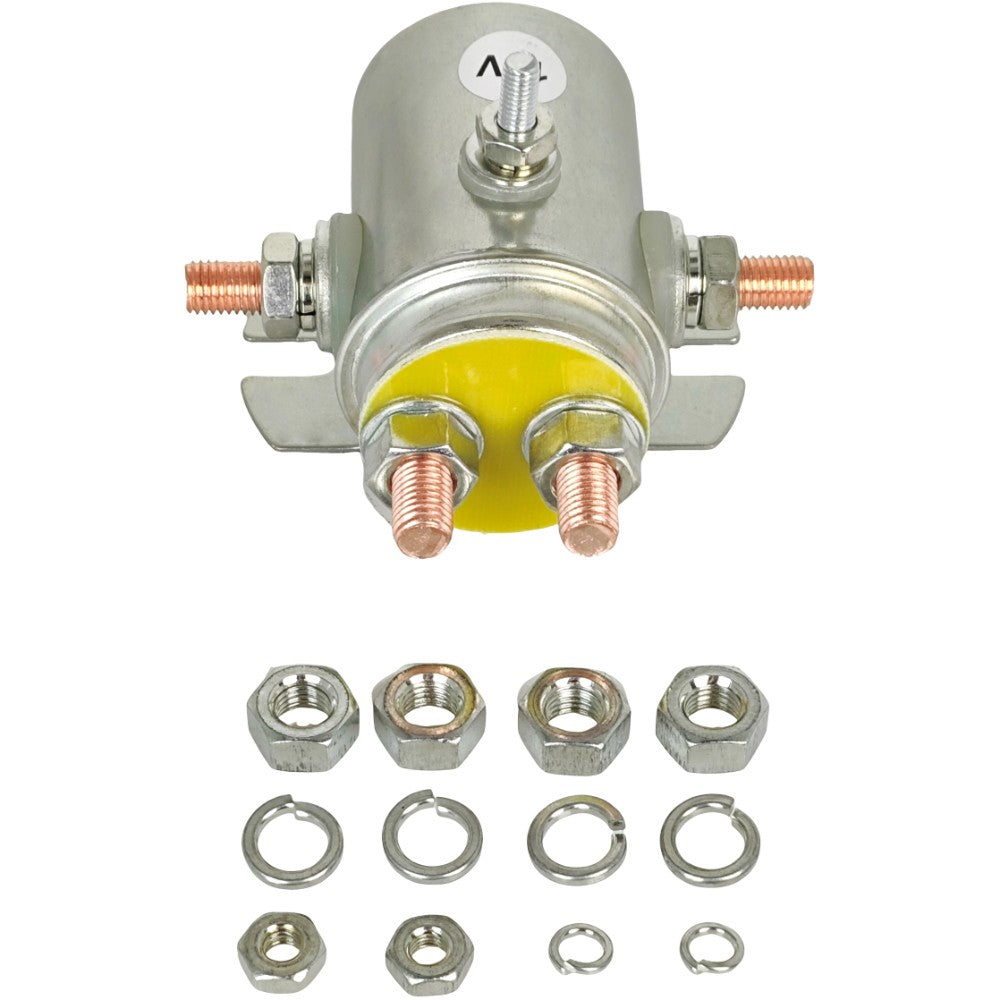

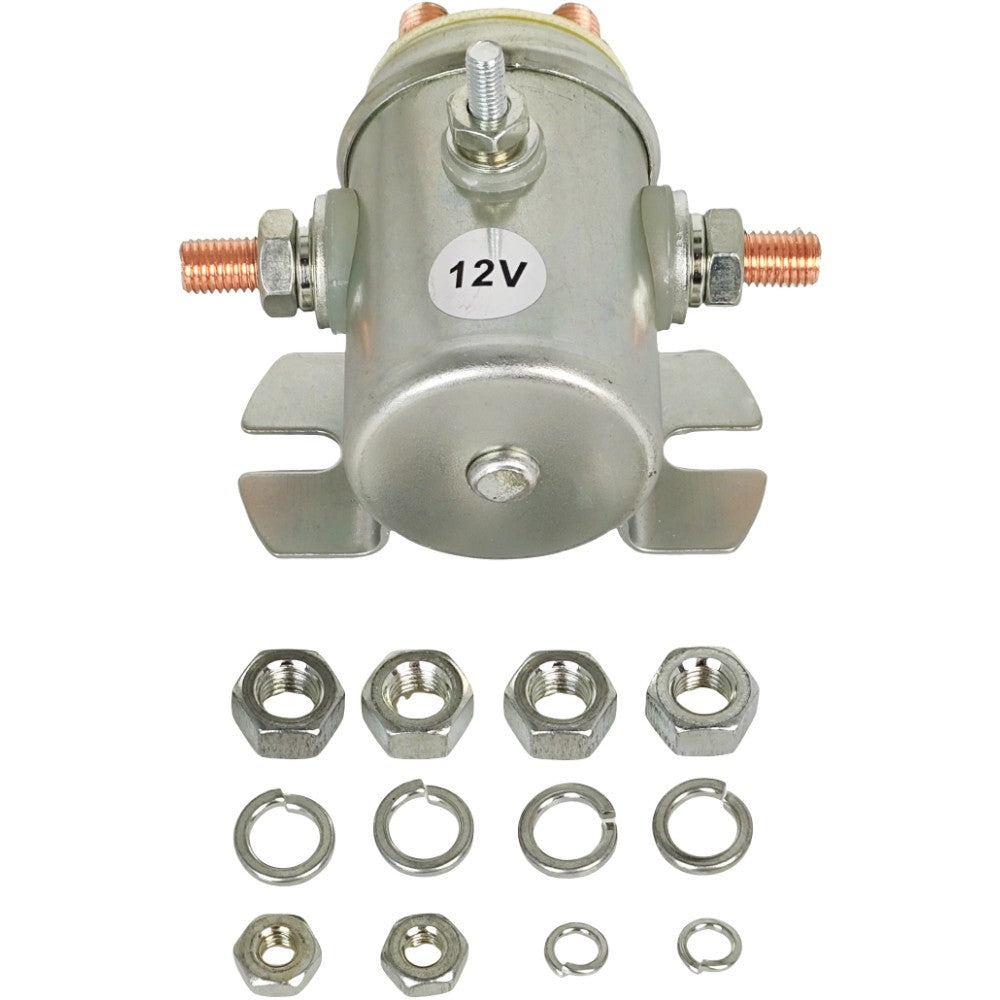

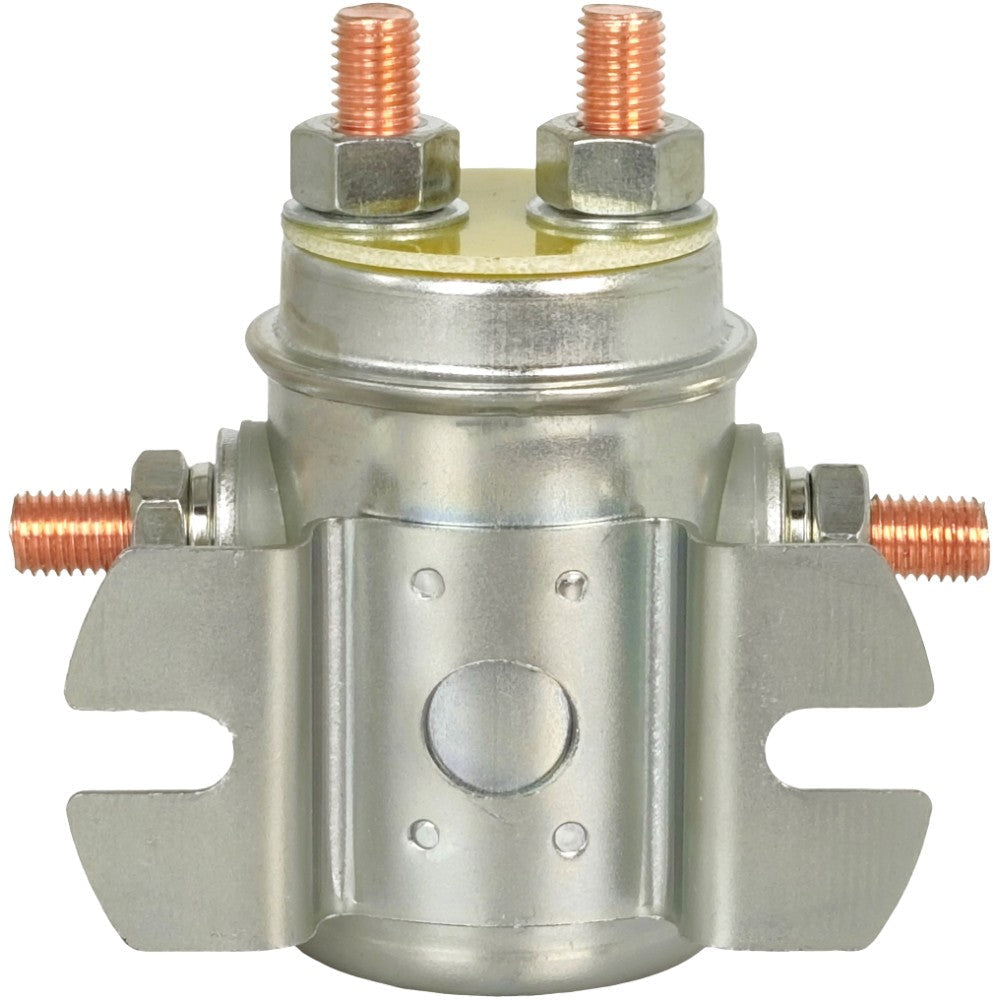

12V 5 Terminal Solenoid Relay Fit Arrowhead SPL6028 CH24401-01 PL15-301 PL15-341
$46.29
Sale price
$46.29
Regular price
Skip to product information
SKU:
ZZ3F03062
Same day shipping if ordered by 4PM CST.
12V 5 Terminal Solenoid Relay Fit Arrowhead SPL6028 CH24401-01 PL15-301 PL15-341
$46.29
In Stock
$46.29
Sale price
$46.29
Regular price
Voltage
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
12V 5 Terminal Solenoid Relay for Arrowhead
This 12V 5 terminal solenoid relay is a direct replacement for Arrowhead part numbers SPL6028, CH24401-01, PL15-301, and PL15-341, delivering reliable switching for DC electrical systems.
Overview
This 12V 5 terminal solenoid relay is designed to control high-current circuits with a low-current signal, ideal for winches, plows, and other heavy-duty equipment. It provides a robust, weather-resistant switching solution for vehicles and machinery. This 12V 5 terminal solenoid relay offers dependable performance in demanding applications.
Built For Performance
- 12V DC operating voltage for standard electrical systems
- 5 terminal configuration for versatile wiring options
- Continuous duty cycle for sustained operation
- High current capacity for demanding loads
- Sealed construction protects against moisture and debris
- Direct replacement for OEM-style fitment
Fits These Machines
- for Arrowhead SPL6028
- for Arrowhead CH24401-01
- for Arrowhead PL15-301
- for Arrowhead PL15-341
On-The-Job Use
- Winch motor control on trucks and trailers
- Snow plow lift and angle functions
- Hydraulic pump switching on utility vehicles
- General high-current relay applications in 12V systems
Specs At A Glance
| Voltage | 12V DC |
| Terminals | 5 |
| Part Number(s) | SPL6028, CH24401-01, PL15-301, PL15-341 |
Good To Know
Q: What is the main function of this solenoid relay? A: It uses a small control current to switch a much larger current, allowing a dash-mounted switch to safely operate heavy electrical loads like a winch motor.
Q: How do I know if this relay matches my original? A: Verify the part number on your old relay against the listed cross-references and confirm your system voltage is 12V before installing.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
