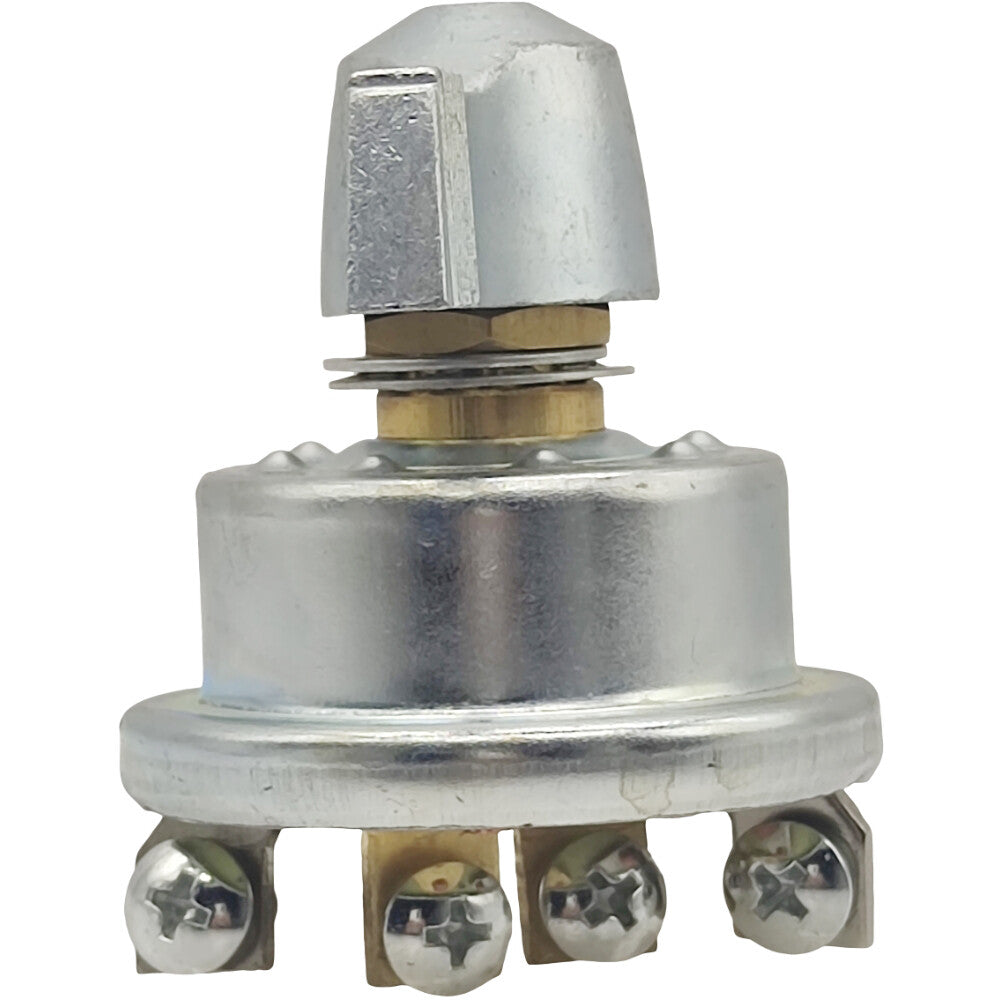

12V 50A Forward Reverse Levered Rotary Switch for 7571204 On-Off-On DPDT 3 Position
This 12V 50A Forward Reverse Levered Rotary Switch is a heavy-duty DPDT switch designed to control motor direction with a simple On-Off-On operation. It provides reliable forward and reverse control for various 12-volt applications, referencing cross number 7571204.
Overview
This 12V 50A Forward Reverse Levered Rotary Switch is a robust electrical component that manages high-current circuits for directional motor control. It offers a clear three-position operation—forward, off, and reverse—making it essential for equipment requiring reversible functions. This switch is built for demanding environments where dependable switching is critical.
Built For Performance
- Rated for 12V DC systems with a high 50A current capacity
- Double Pole Double Throw (DPDT) configuration for versatile circuit control

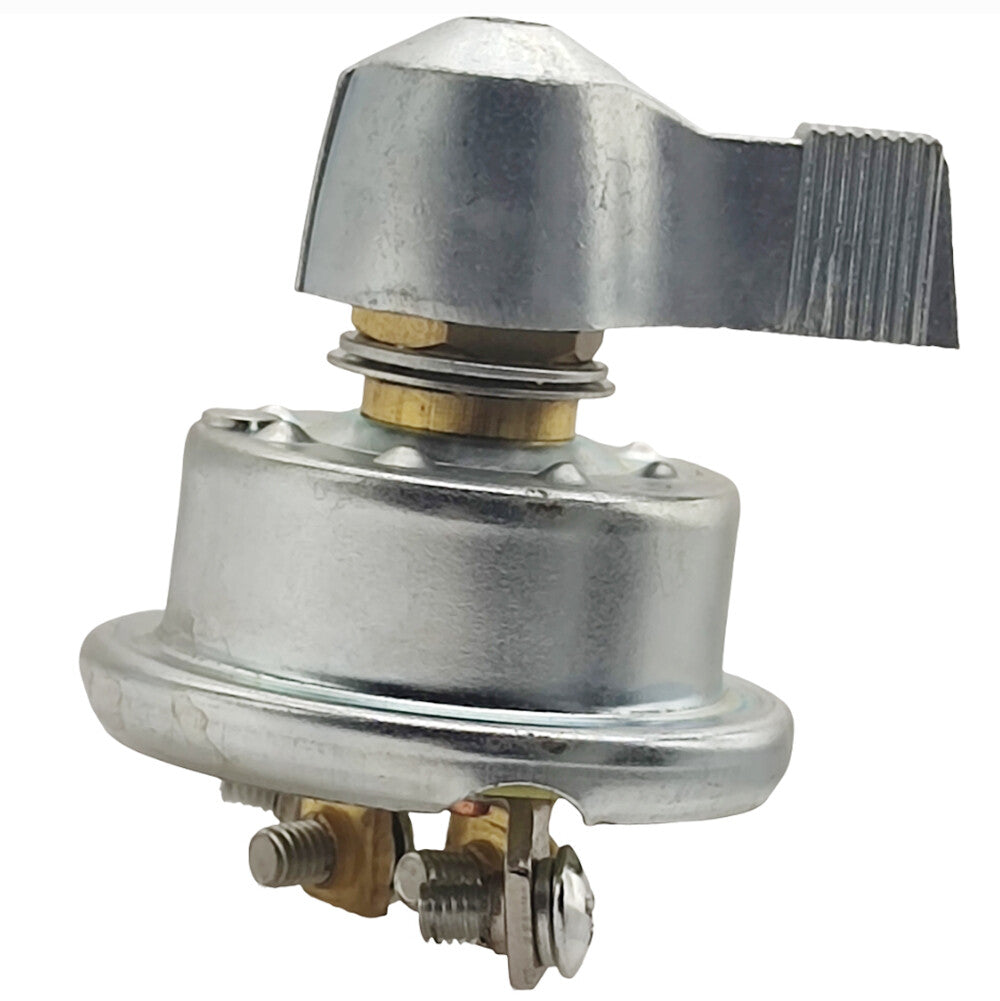

- Levered rotary actuator provides positive and tactile switching action
- On-Off-On 3-position design facilitates easy forward and reverse selection
- Durable construction suited for frequent use in industrial or mobile applications
Fits These Machines
- for equipment using cross-reference part 7571204
- for systems requiring a 3-position DPDT rotary switch
On-The-Job Use
- Managing direction of winch motors
- Controlling hydraulic pump motors
- Reversing conveyor belt drives
- Switching auxiliary equipment on utility vehicles
Specs At A Glance
| Voltage | 12V DC |
| Current Rating | 50A |
| Switch Type | DPDT, 3 Position |
| Action | On-Off-On |
| Actuator | Levered Rotary |
| Part Number(s) | 7571204 |
Good To Know
Q: What does the On-Off-On position do? A: The center 'Off' position breaks the circuit, while the two 'On' positions allow you to select between forward and reverse motor operation. This is achieved by swapping the polarity of the output connections.
Q: Can this switch handle continuous high current? A: This switch is rated for 50A, making it suitable for continuous duty in most 12V applications. Ensure your wiring and load do not exceed this rating to maintain safe and reliable performance.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
