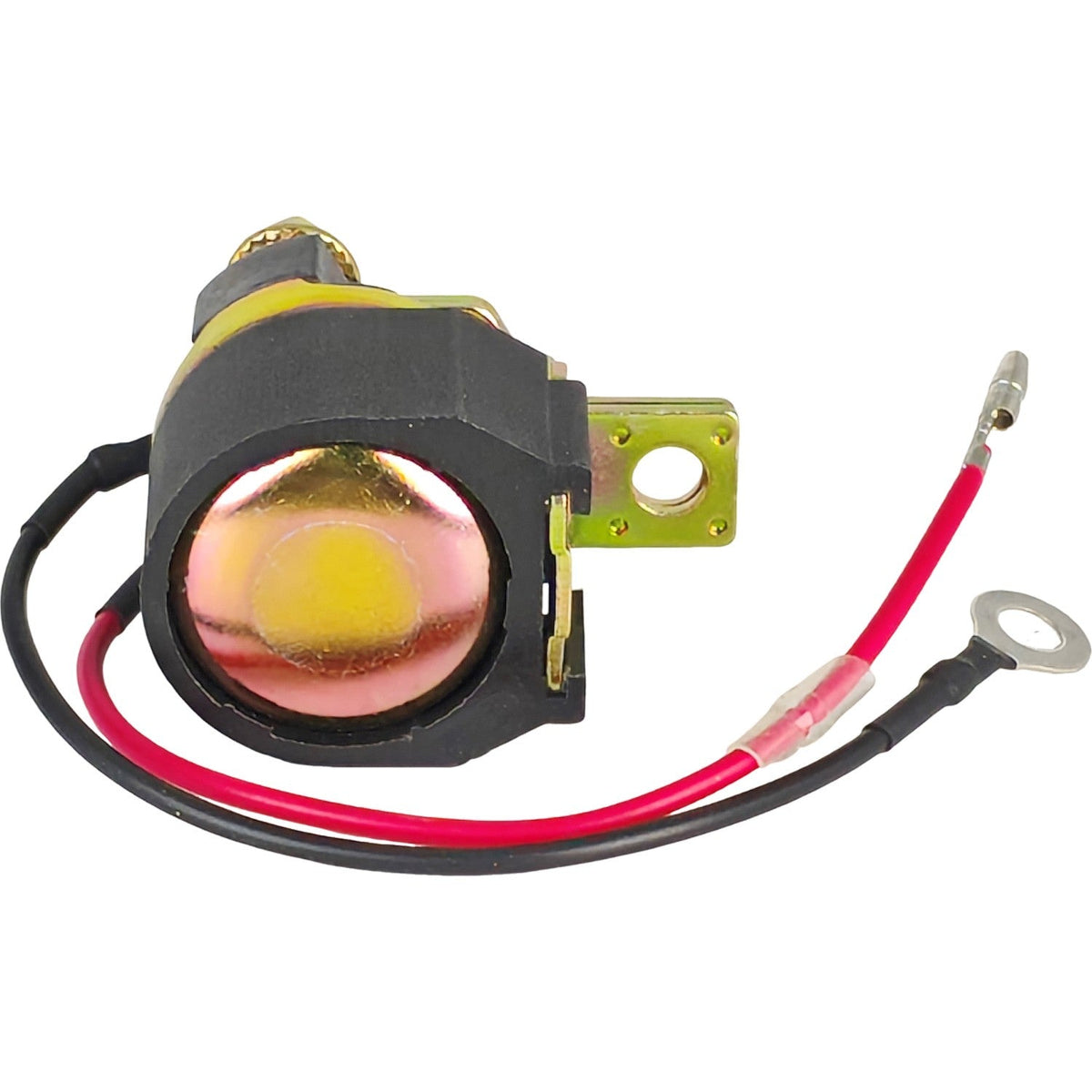

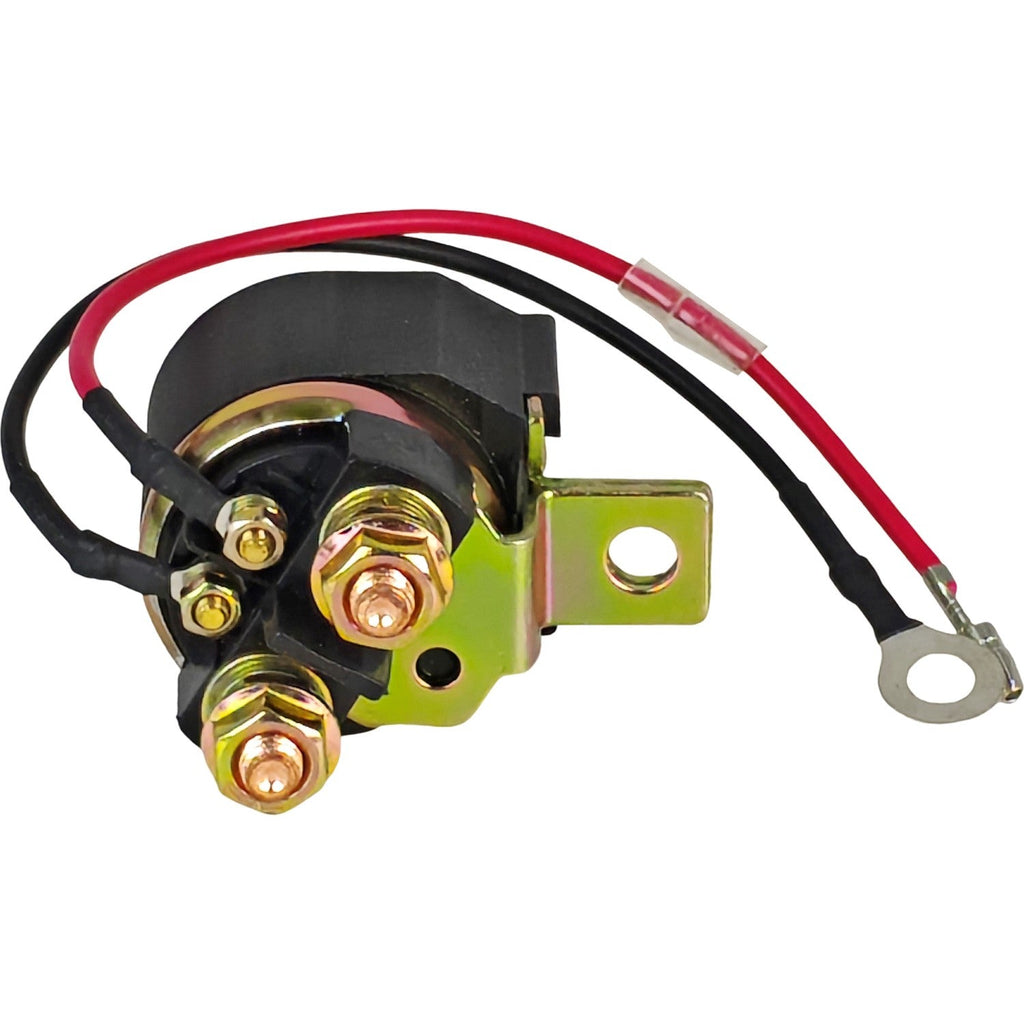

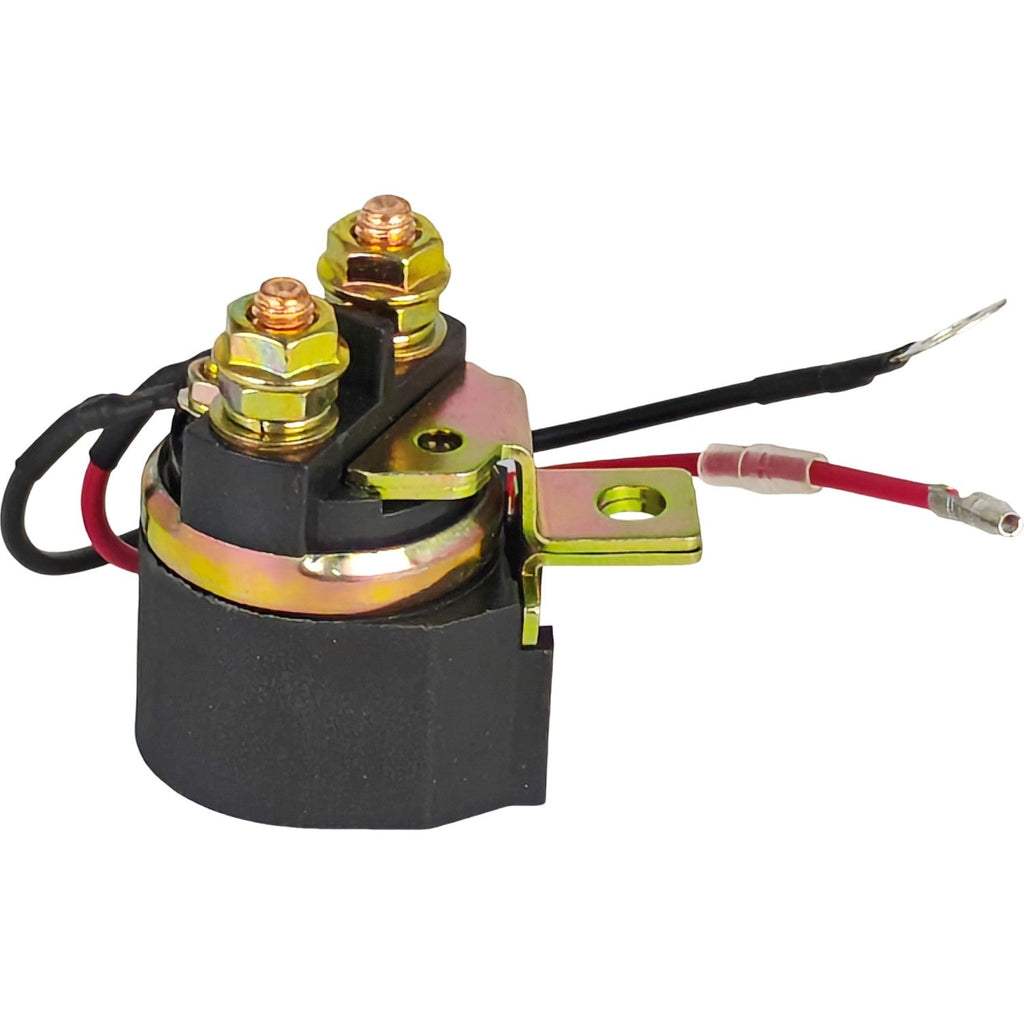

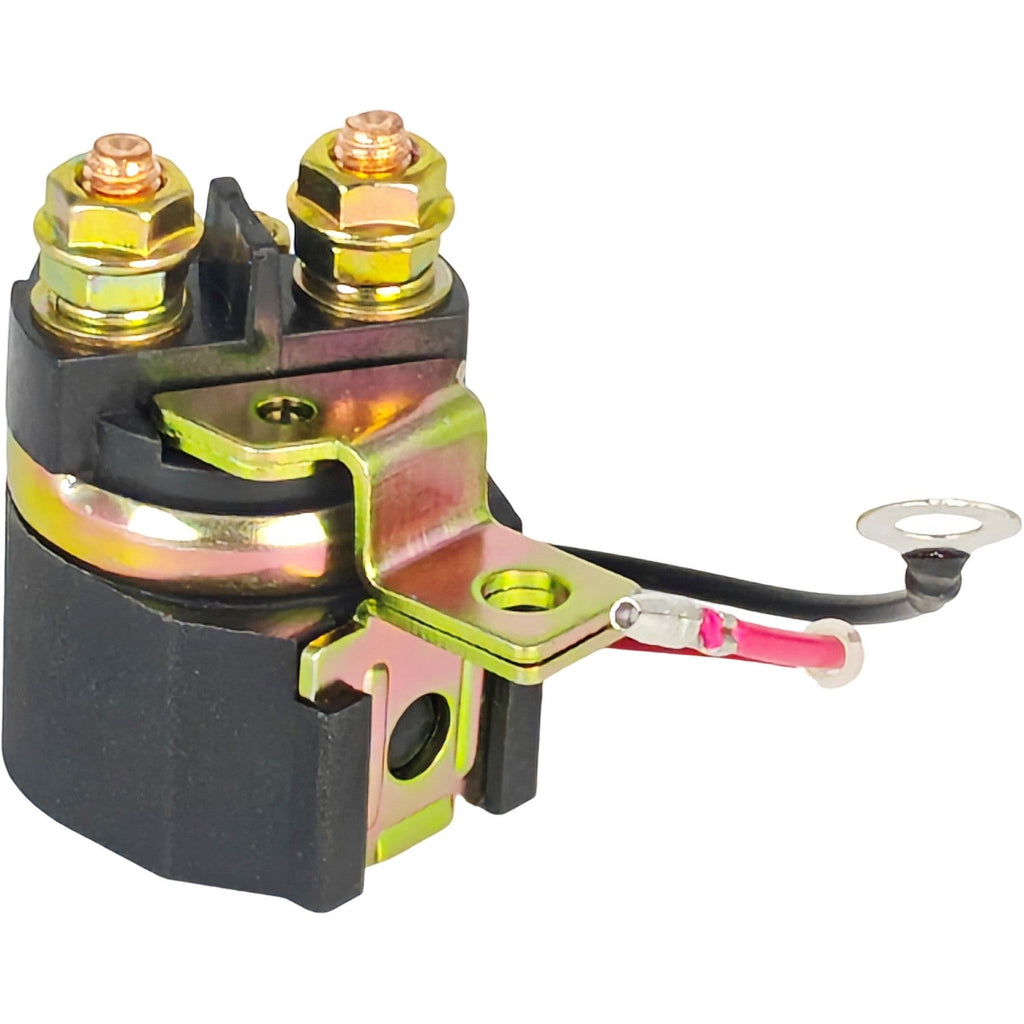

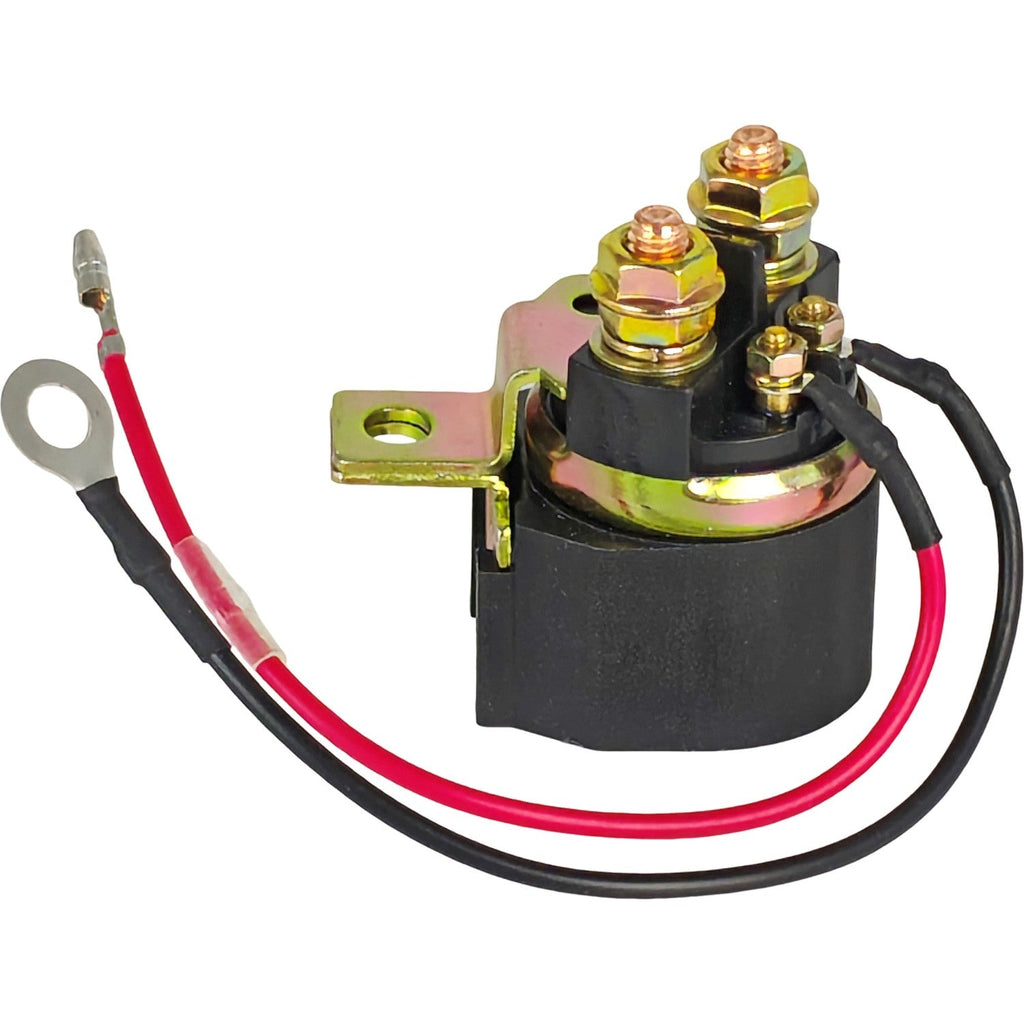

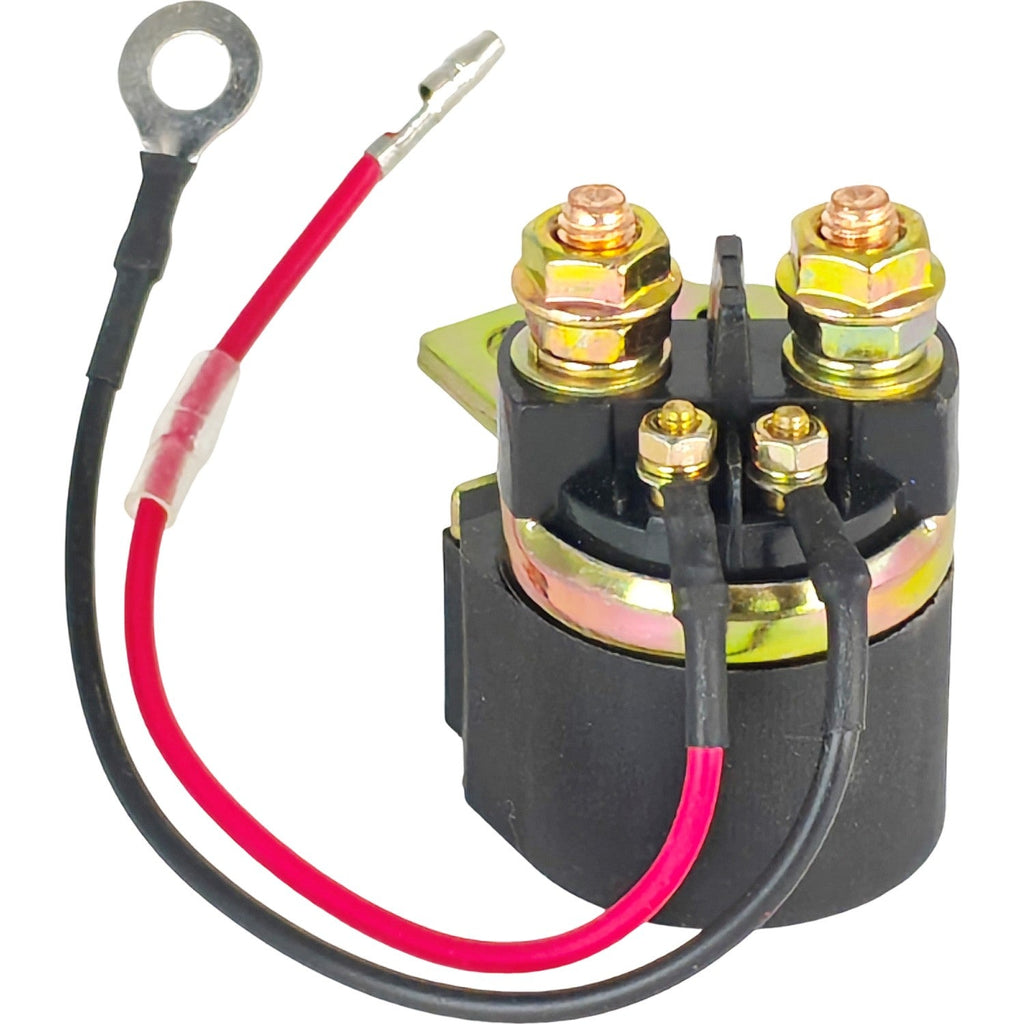

12V Electrical Solenoid Relay 688-81950-10-00 Fit for Yamaha 1986 50ESJ/50ELJ
$52.79
Sale price
$52.79
Regular price
Skip to product information
SKU:
ZZ3F04109
Same day shipping if ordered by 4PM CST.
12V Electrical Solenoid Relay 688-81950-10-00 Fit for Yamaha 1986 50ESJ/50ELJ
$52.79
In Stock
$52.79
Sale price
$52.79
Regular price
Voltage
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
12V Electrical Solenoid Relay for Yamaha
This 12V electrical solenoid relay, cross-referenced as 688-81950-10-00, is a direct-acting starter relay that routes battery power to the starter motor for reliable engine cranking. Designed for Yamaha outboard applications, this relay ensures a positive electrical connection every time you turn the key. It serves as a robust replacement for worn or failed relays on compatible Yamaha models.
Overview
This 12V electrical solenoid relay is a crucial component in the starting circuit of compatible Yamaha outboard motors, managing the high current flow needed to engage the starter. It operates by using a small control signal to close a heavy-duty internal contact, safely delivering full battery voltage to the starter. This relay is intended for boat owners and technicians maintaining specific Yamaha outboard models from the mid-1980s.
Built For Performance
- Rated for 12V DC electrical systems to match standard marine battery output
- Constructed with a sealed housing to resist moisture and corrosion in marine environments
- Features heavy-duty internal contacts for reliable current handling and long service life
- Utilizes standard blade or post terminals for straightforward wiring in the starting circuit
- Compact design allows for direct mounting in the original relay location
Fits These Machines
- for Yamaha 1986 50ESJ
- for Yamaha 1986 50ELJ
On-The-Job Use
- Replaces a faulty relay to restore reliable engine start-up on the water
- Provides consistent engagement for both cold starts and repeated starting cycles
- Ensures secure power delivery to the starter motor during ignition
Specs At A Glance
| Voltage | 12V DC |
| Type | Solenoid Relay |
| Part Number(s) | 688-81950-10-00 |
Good To Know
Q: How do I know this relay is faulty? A: Common signs include a clicking sound without the engine cranking or a completely silent starter when the key is turned, indicating the relay is not closing its internal contacts.
Q: Is this relay a direct replacement for my original part? A: Yes, it is designed as a direct replacement for the OEM part number 688-81950-10-00, matching its electrical specifications and mounting configuration.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
