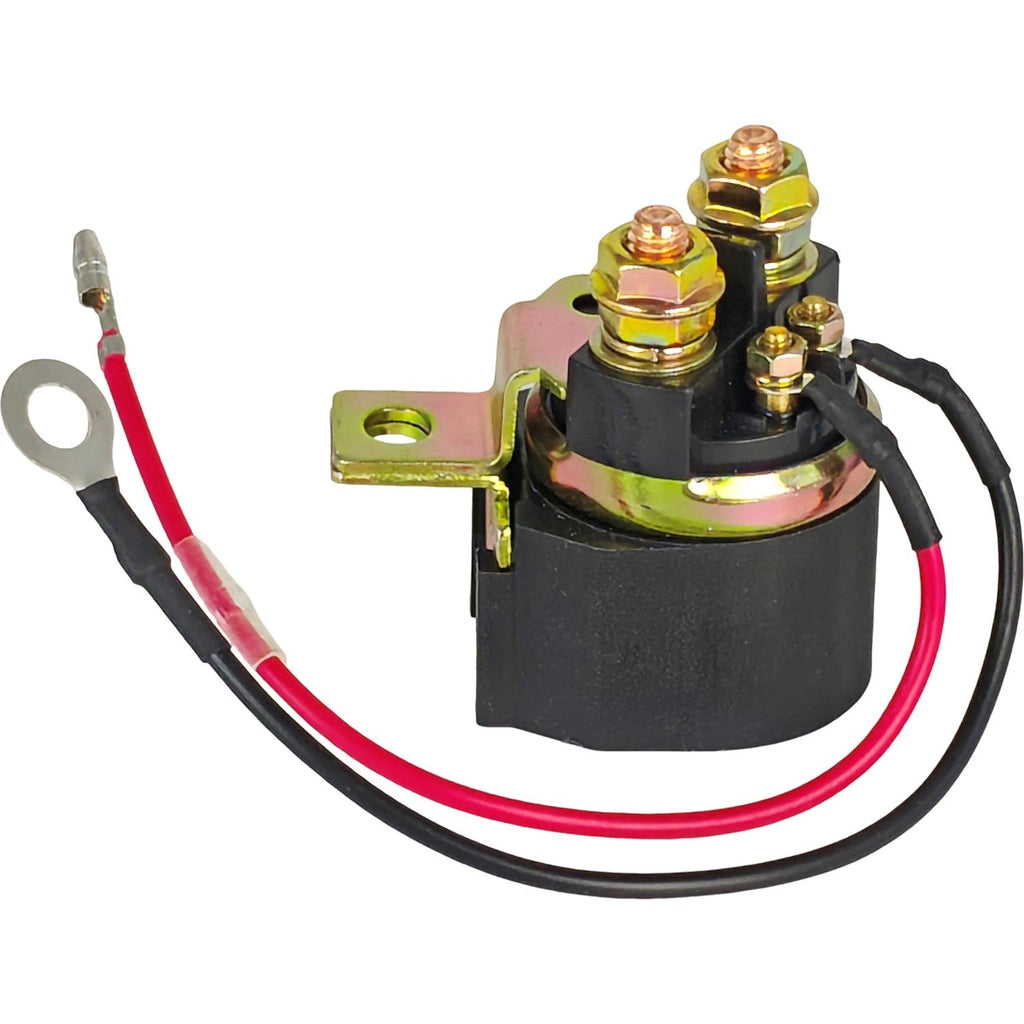

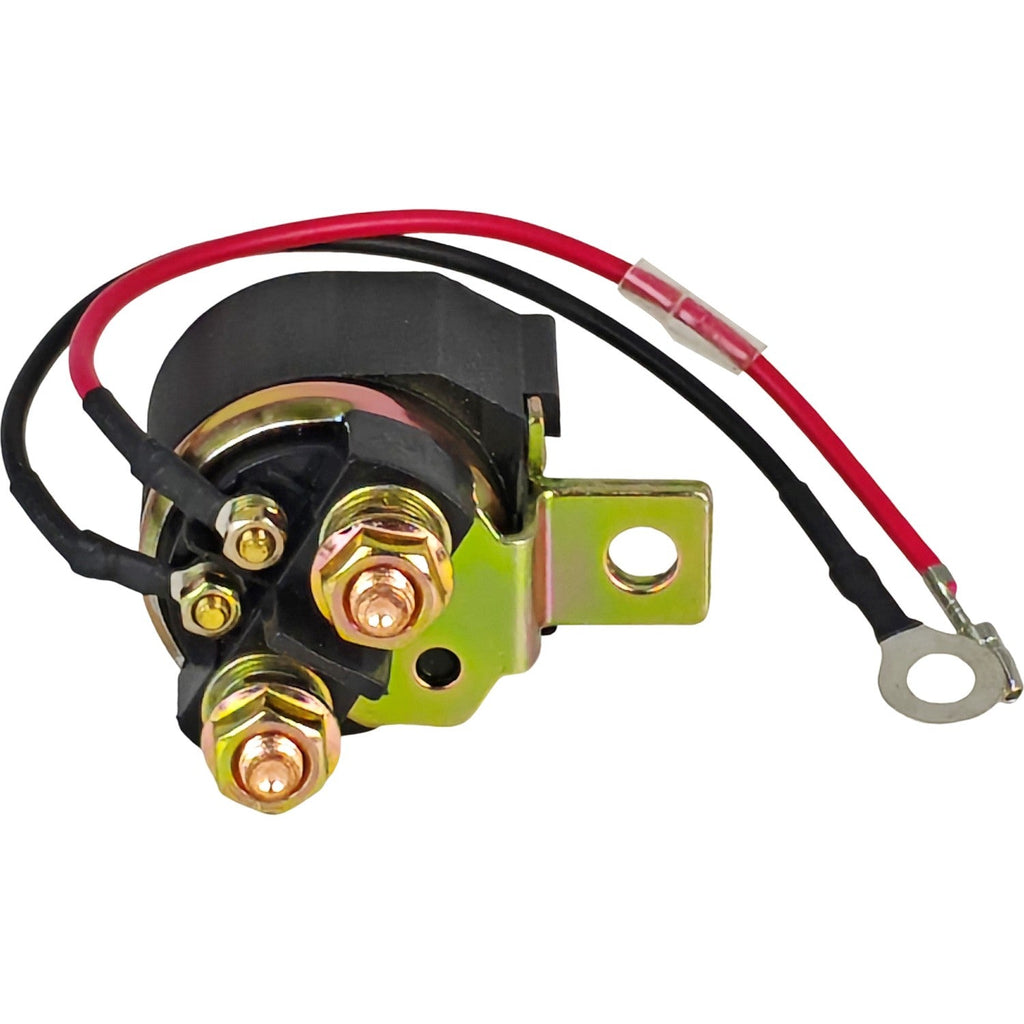

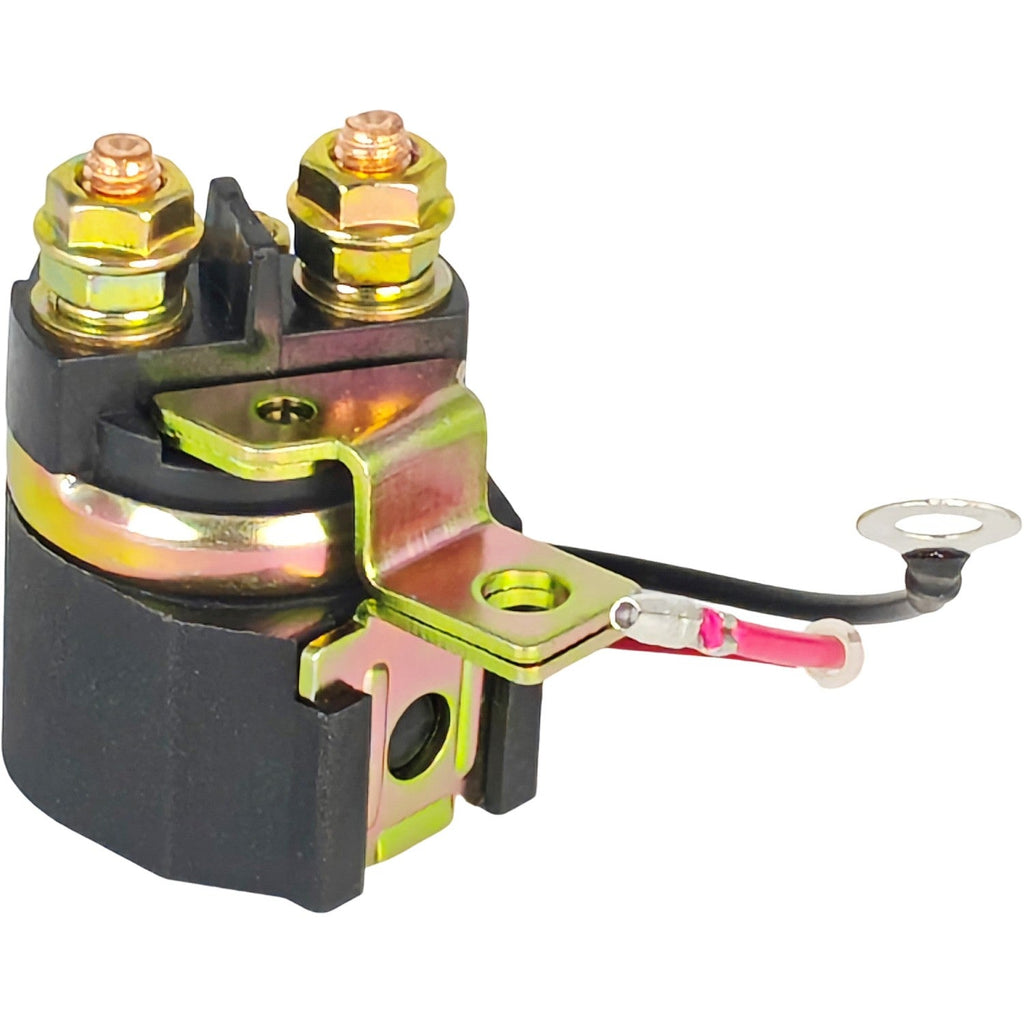

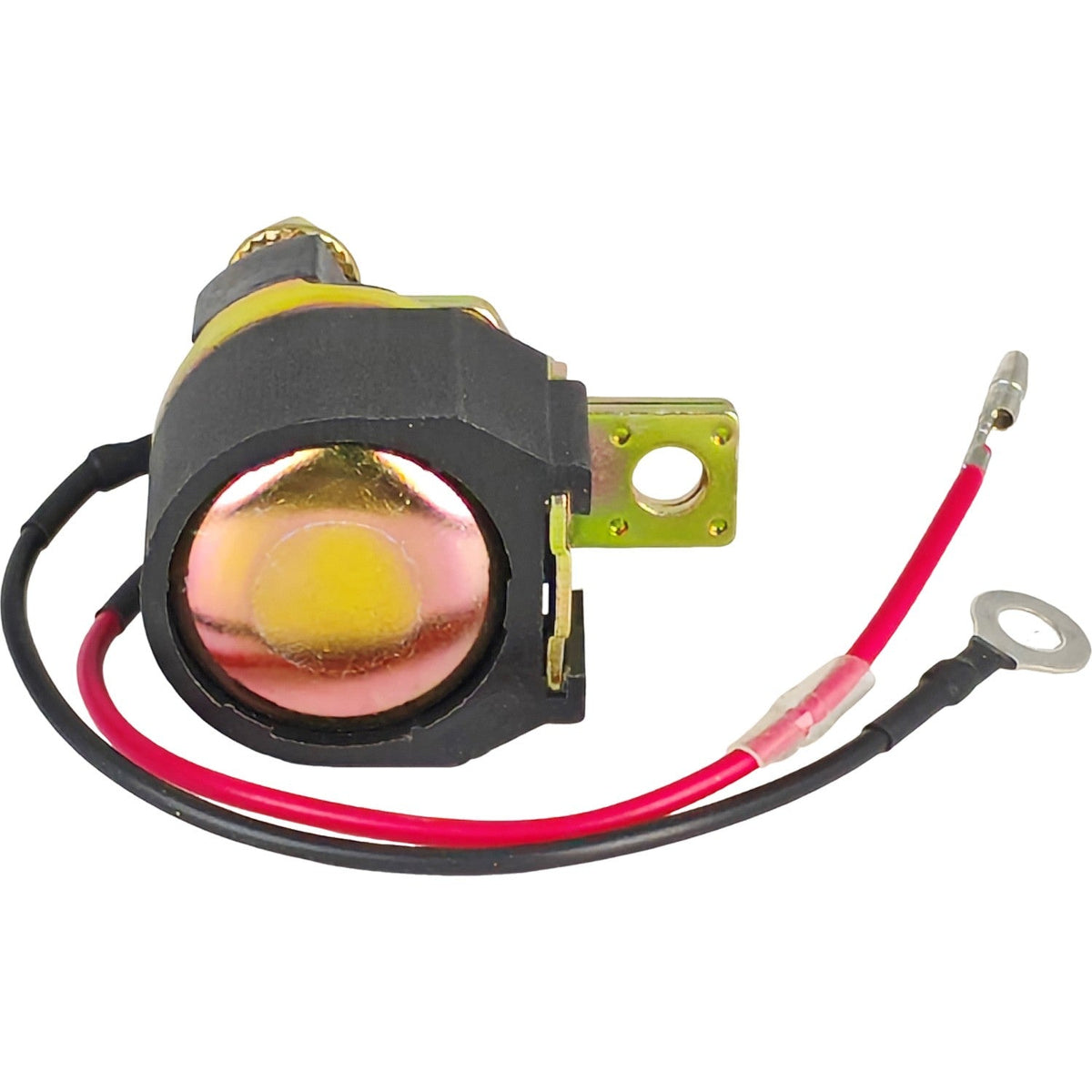

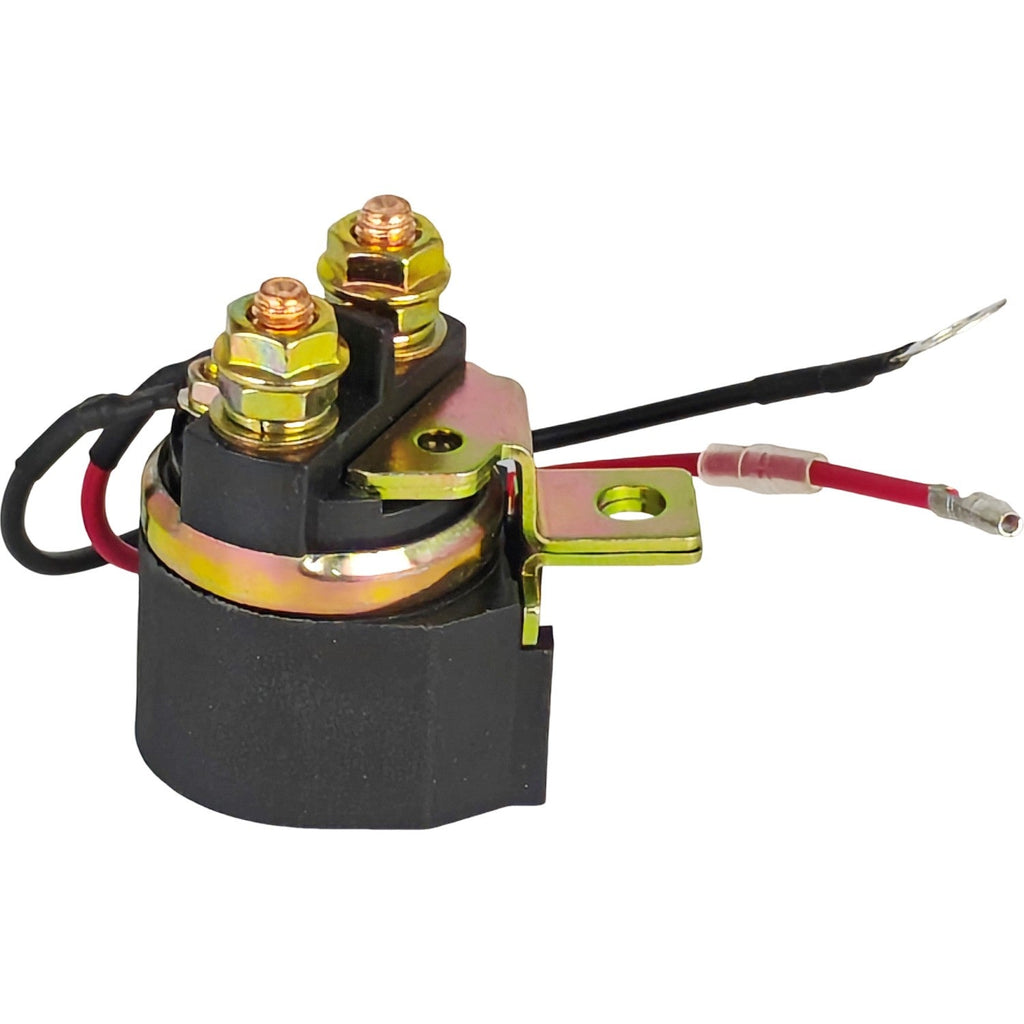

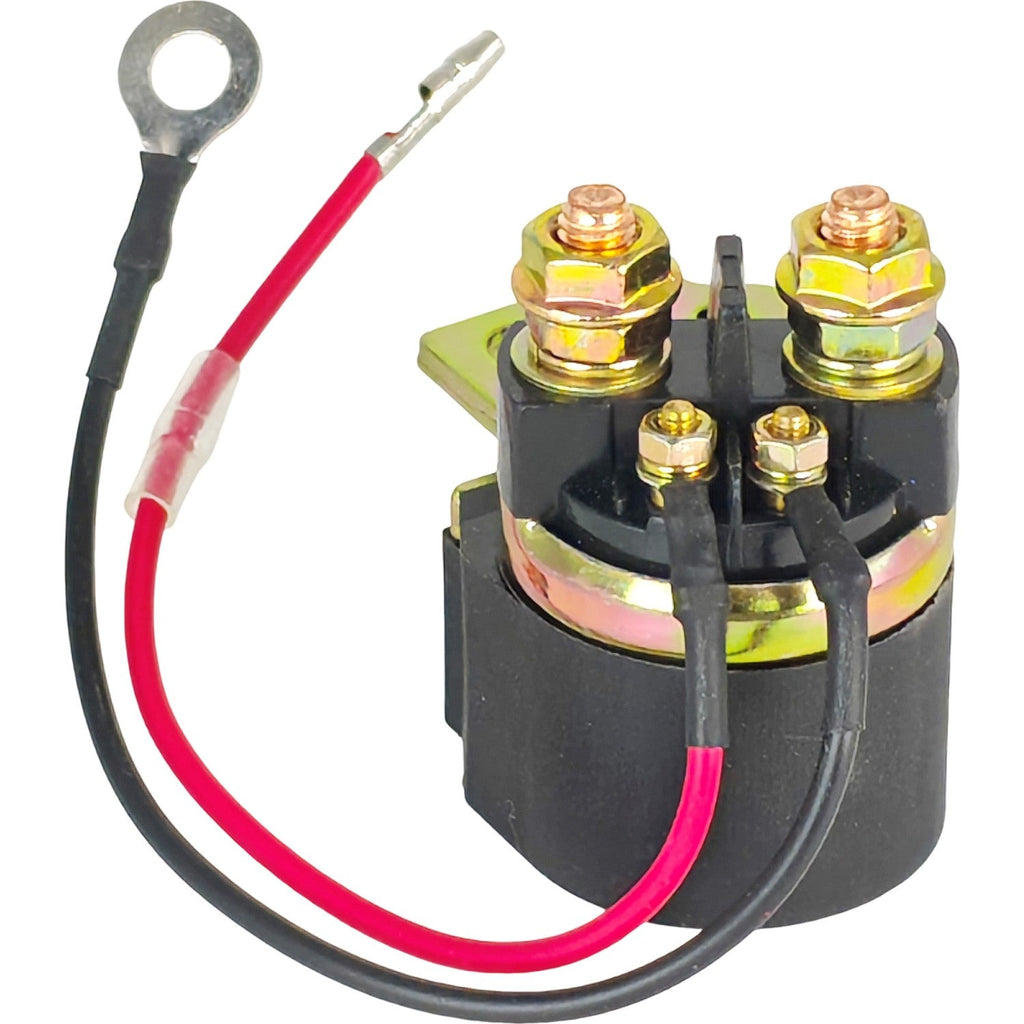

12V Electrical Solenoid Relay 688-81950-10-00 Fit Yamaha 1986 50ELJ JD/50ETLJ
$52.79
Sale price
$52.79
Regular price
Skip to product information
SKU:
ZZ3F04107
Same day shipping if ordered by 4PM CST.
12V Electrical Solenoid Relay 688-81950-10-00 Fit Yamaha 1986 50ELJ JD/50ETLJ
$52.79
In Stock
$52.79
Sale price
$52.79
Regular price
Type
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
12V Electrical Solenoid Relay for Yamaha
This 12V electrical solenoid relay is a direct replacement component designed to manage high-current circuits in Yamaha outboard motors, referencing OEM cross-reference numbers 688-81950-10-00. It ensures reliable switching for starting and auxiliary electrical systems.
Overview
This 12V electrical solenoid relay is a robust electromagnetic switch that controls the flow of battery power to critical circuits, including the starter motor. It is engineered for Yamaha outboard engines, specifically those from the 1986 model year, and its function is to provide dependable, repeated engagement without voltage drop. This relay is an essential part for maintaining a healthy electrical system on your marine engine.
Built For Performance
- Constructed with a sealed, corrosion-resistant housing to withstand harsh marine environments.
- Rated for 12V DC systems, ensuring compatibility with standard outboard electrical architecture.
- Utilizes a low-current coil to switch a high-current load, protecting your ignition switch and wiring.
- Designed to meet or exceed OEM specifications for reliable and consistent operation.
- Includes a mounting bracket for straightforward installation in the original location.
Fits These Machines
- for Yamaha 50ELJ JD
- for Yamaha 50ETLJ
On-The-Job Use
- Engages the starter motor when the ignition key is turned, providing a reliable start every time.
- Switches power to other high-amperage accessories, such as trim pumps or power tilt systems.
- Serves as a critical component in the engine's starting circuit, reducing strain on the ignition switch.
- Used during troubleshooting to isolate electrical faults in the starting system.
Specs At A Glance
| Type | Starter Solenoid Relay |
| Voltage | 12V DC |
| Part Number(s) | 688-81950-10-00 |
Good To Know
Q: What are common signs that this solenoid relay needs replacement? A: Common symptoms include a clicking sound when turning the key but no starter engagement, or intermittent starting issues. If the relay fails, the starter motor will not receive power.
Q: Is this solenoid relay a direct replacement for the original part? A: Yes, this relay is designed as a direct aftermarket replacement for the specified Yamaha part number, matching its form, fit, and function. It is built to the same specifications as the original component.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
