Relay Solenoid 3740150 for JLG
This 24V 100A relay solenoid, cross-referenced as 3740150, is a heavy-duty electrical switching component that controls high-current circuits in JLG scissor lifts and boom lifts. It engages the hydraulic pump or drive motor by delivering a reliable 100-amp connection when energized. This relay solenoid is for JLG models 1230ES, 2032ES, 1930ES, 2630ES, and 2030ES, ensuring dependable operation for electric-powered aerial work platforms.
Overview

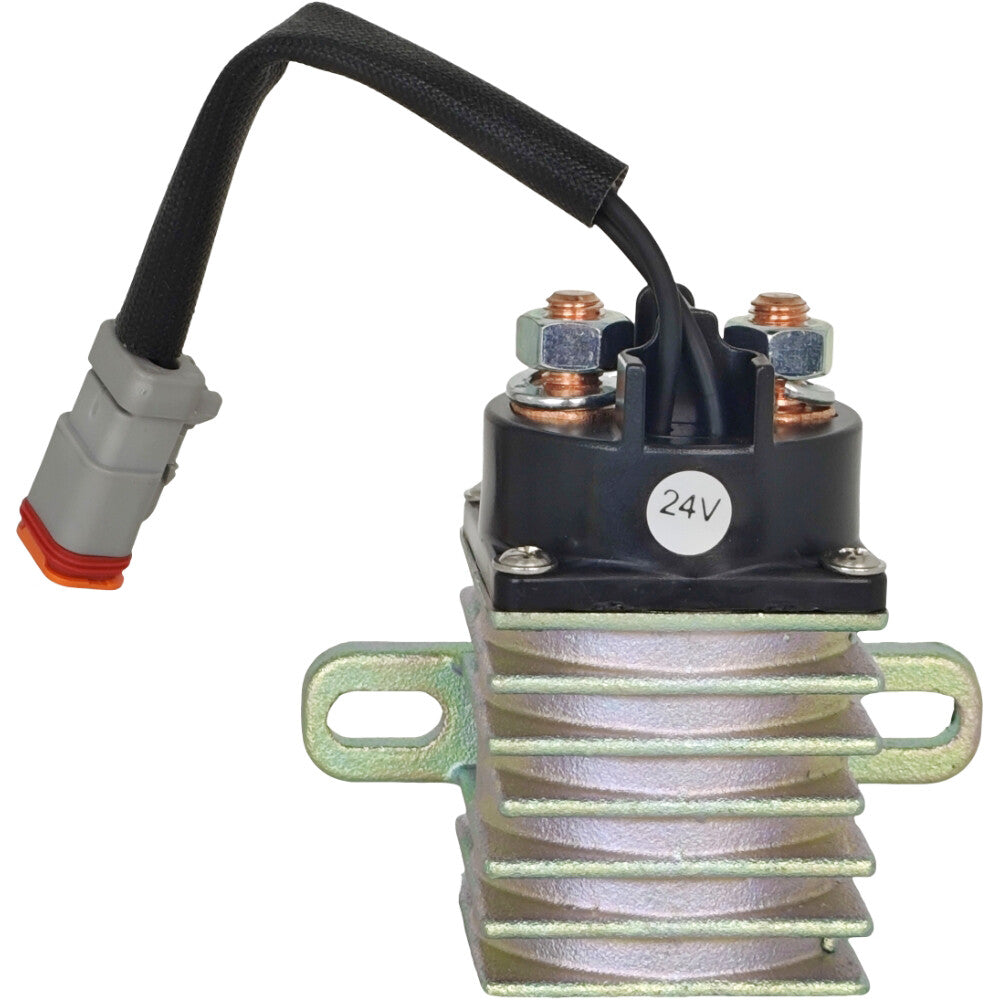

This 24V 100A relay solenoid is a direct-acting electromechanical switch designed for JLG electric scissor lifts. It manages high-current flows in the lift's control system, enabling precise movement of the platform. Its robust construction and 24-volt coil make it a critical component for maintaining consistent performance in daily aerial work.
Built For Performance
- Rated for 100 amps at 24 volts DC, handling high inrush currents typical of lift motors
- Continuous duty coil rated for 24V ensures reliable engagement over extended periods

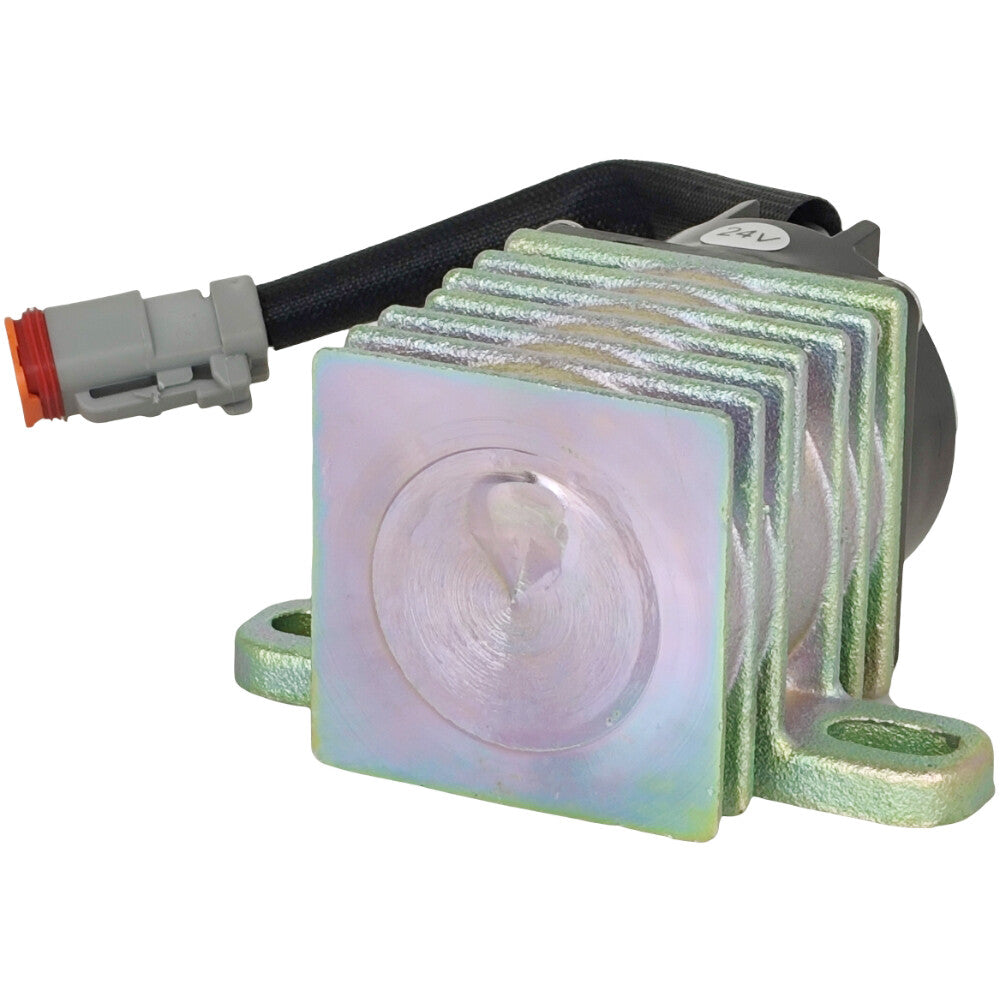

- Sealed housing resists moisture, dust, and debris common on construction sites

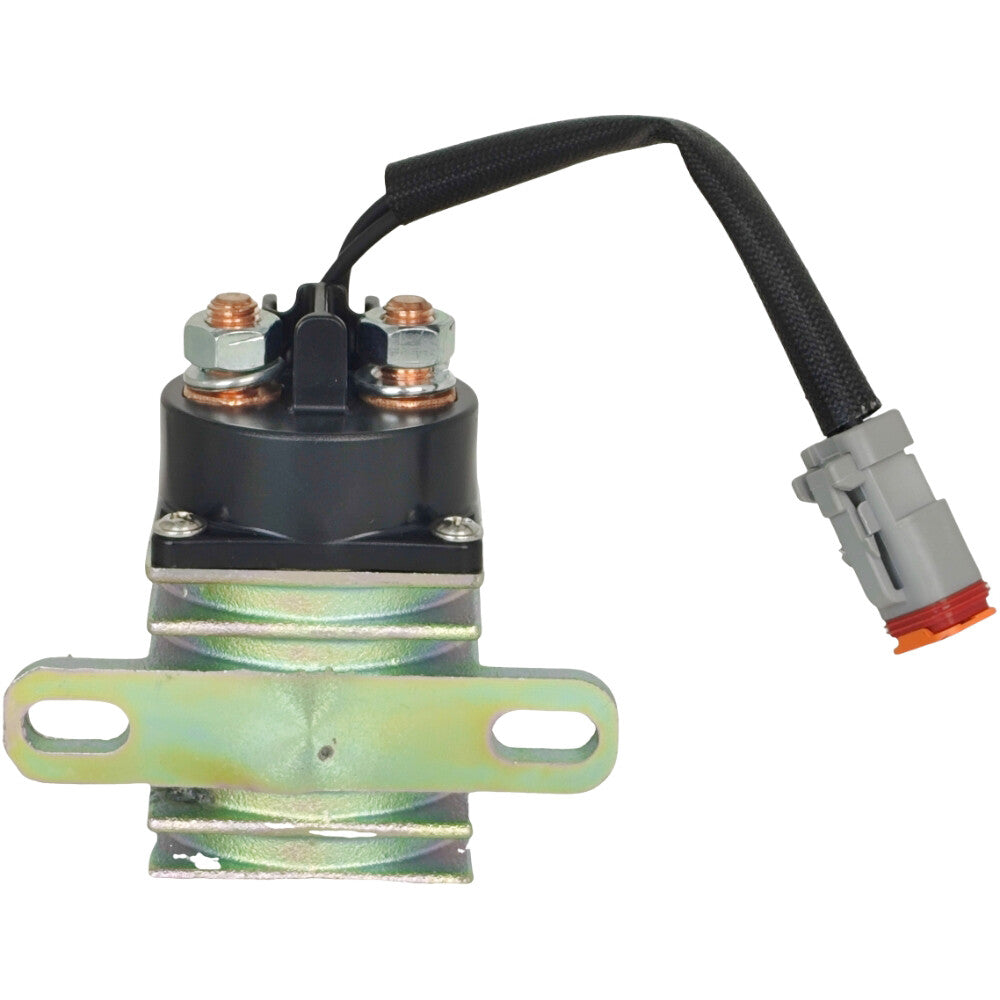

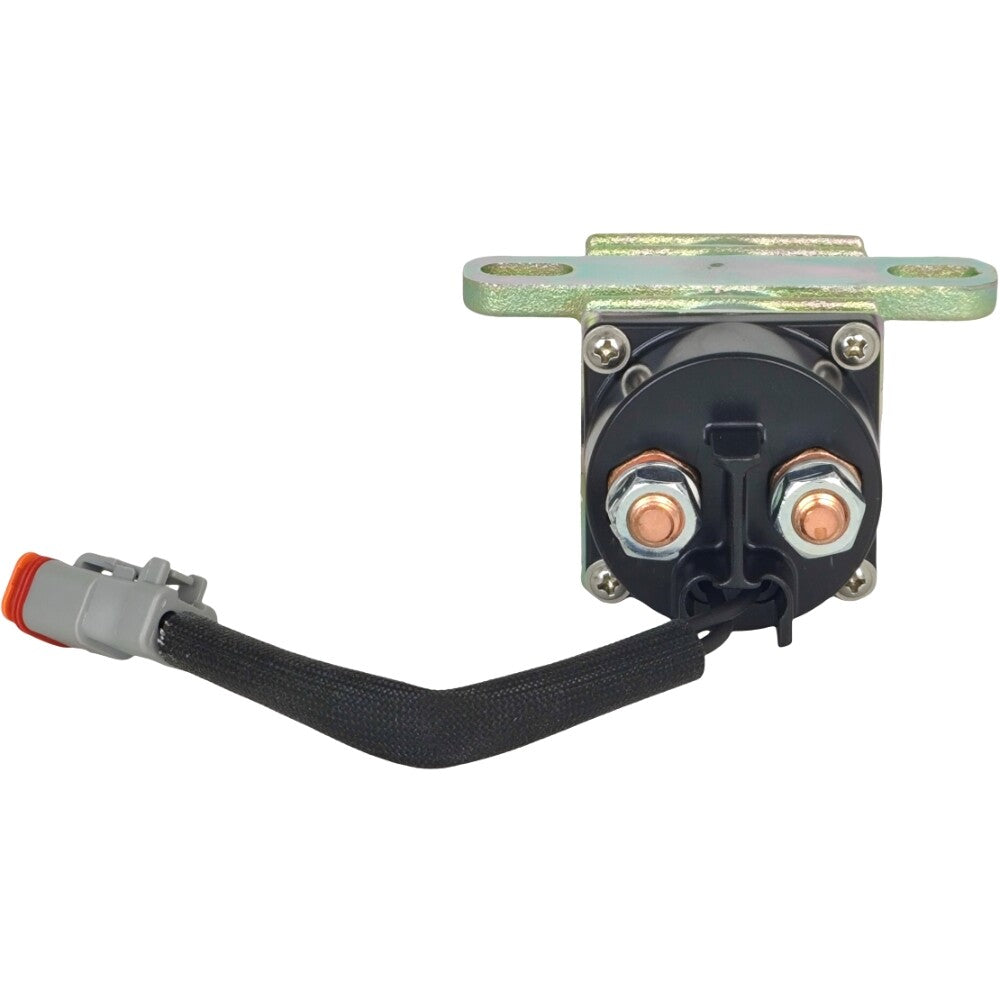

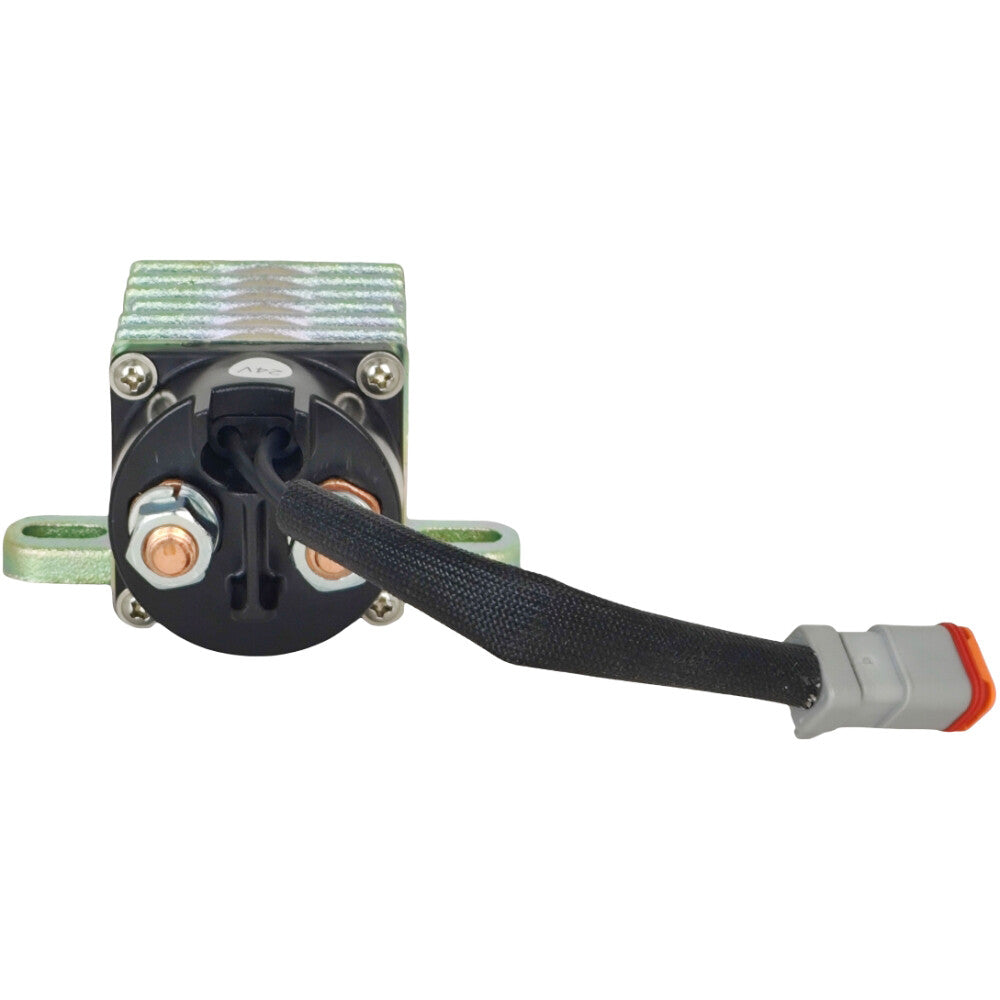

- Metal mounting bracket and threaded studs provide secure, vibration-resistant installation
- Interchangeable with OEM part number 3740150 for JLG lift systems
Fits These Machines
- for JLG 1230ES
- for JLG 2032ES
- for JLG 1930ES
- for JLG 2630ES
- for JLG 2030ES
On-The-Job Use
- Used to switch power to the hydraulic pump motor in electric scissor lifts
- Activates drive and lift functions in indoor maintenance and warehousing applications
- Controls power distribution in aerial work platforms during loading and positioning tasks
Specs At A Glance
| Voltage | 24V DC |
| Current Rating | 100A |
| Part Number(s) | 3740150 |
Good To Know
Q: How does this relay solenoid respond to a 24V control signal? A: When 24V is applied to the coil, the internal contacts close, allowing 100A of current to pass through to the connected load, such as a motor or pump.
Q: Can this solenoid be used as a direct replacement for the factory JLG part? A: Yes, it matches the form, fit, and function of the OEM 3740150 part number, making it a straightforward swap in compatible JLG models.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
