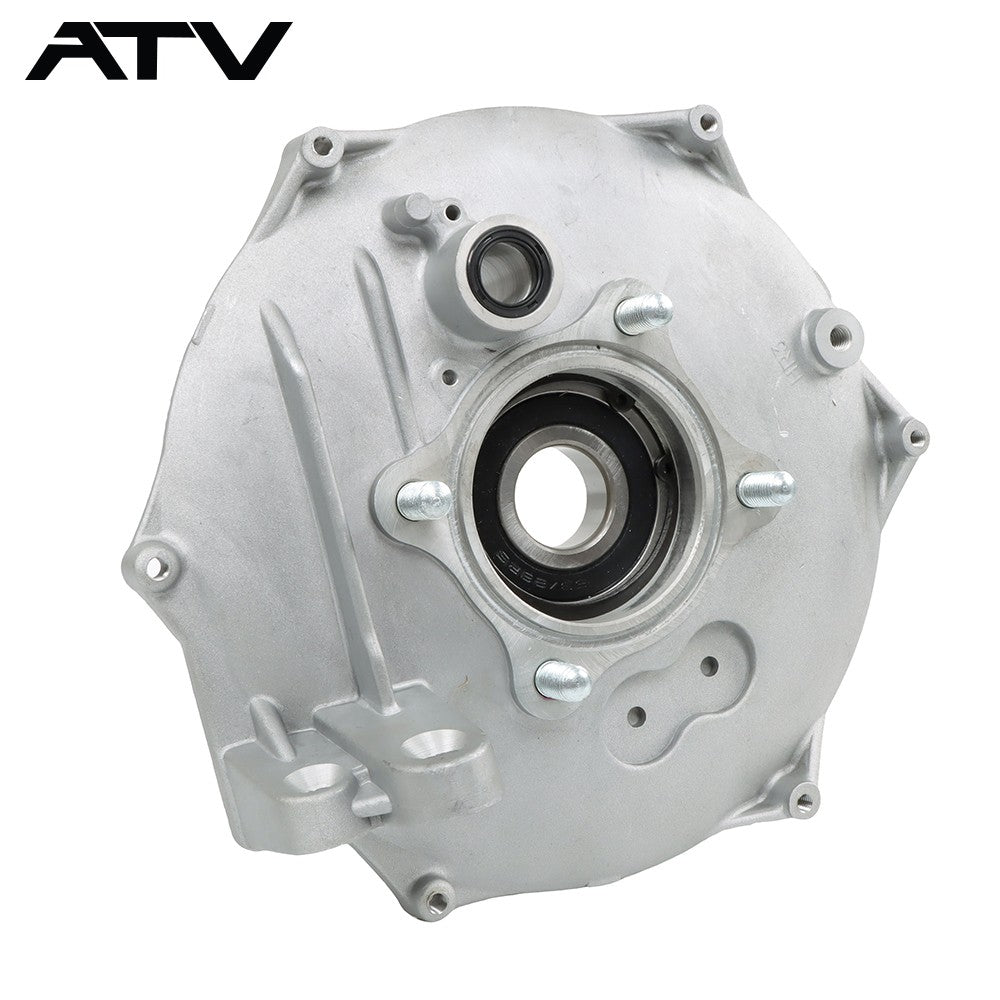

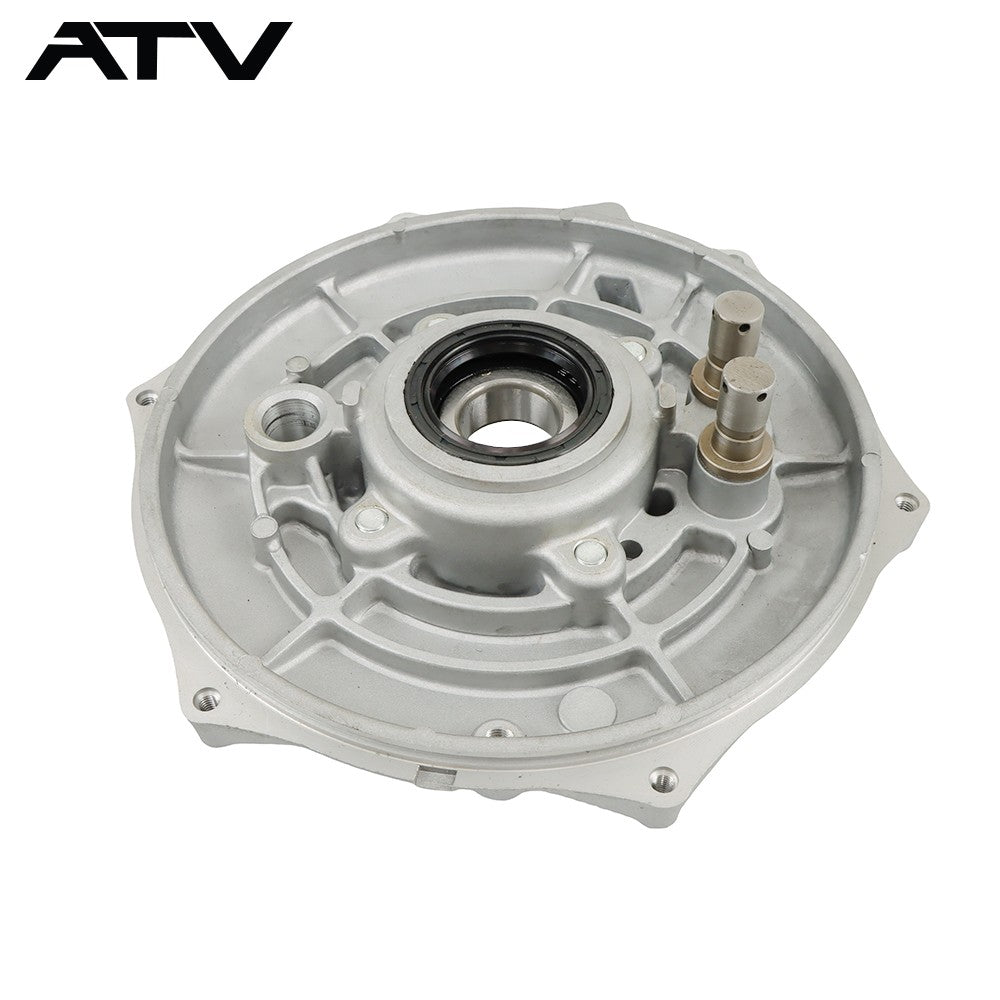

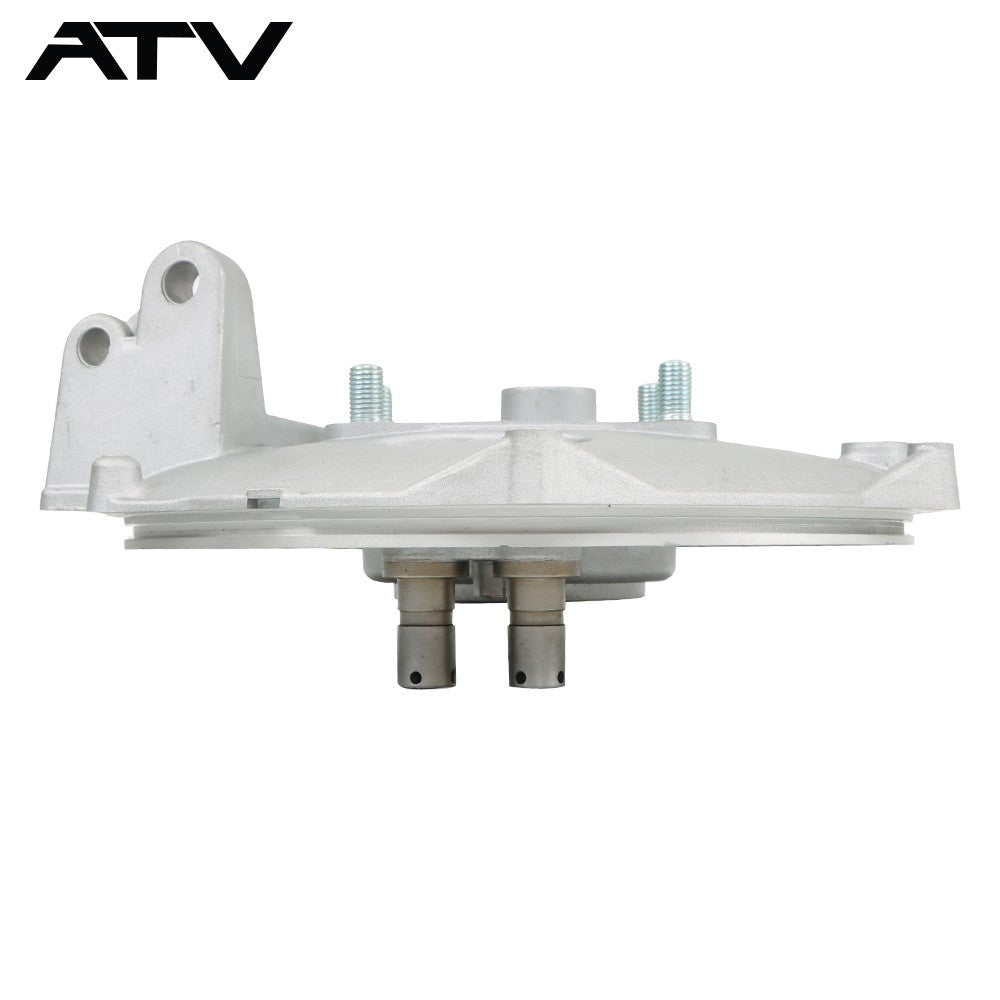

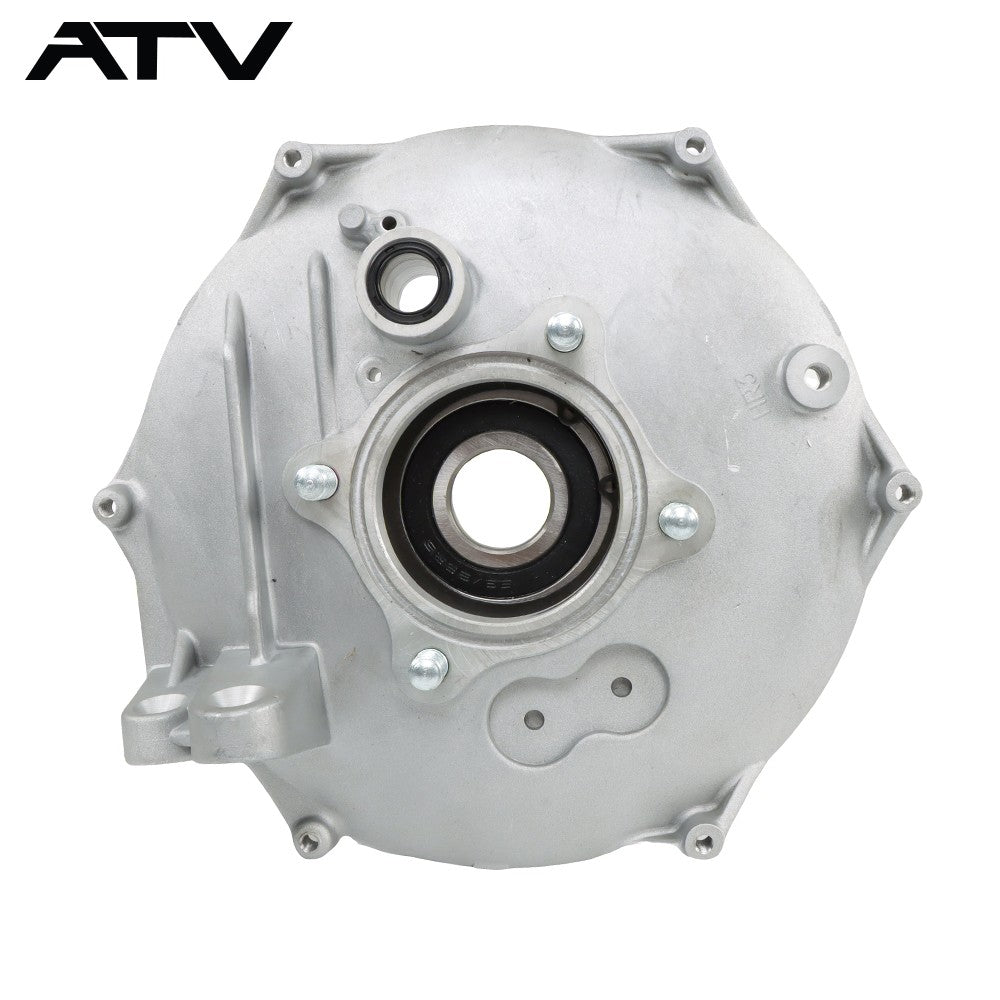

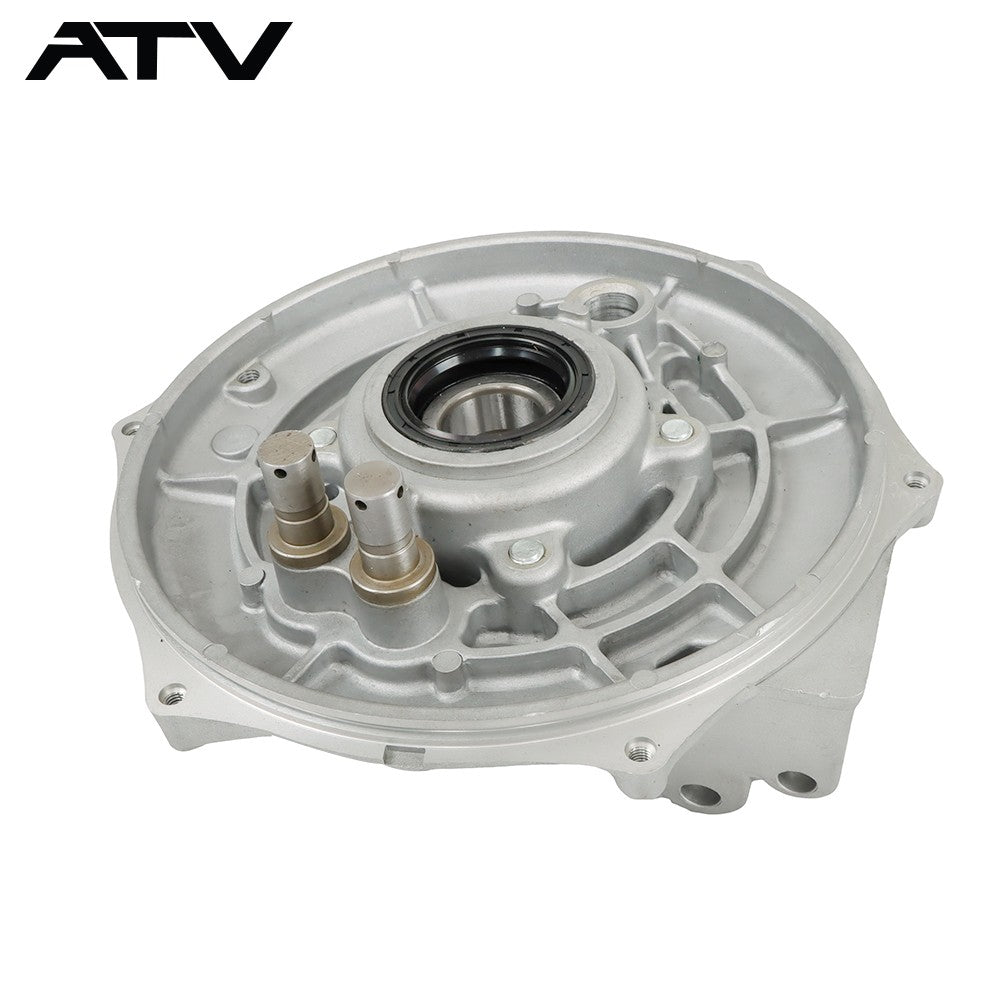

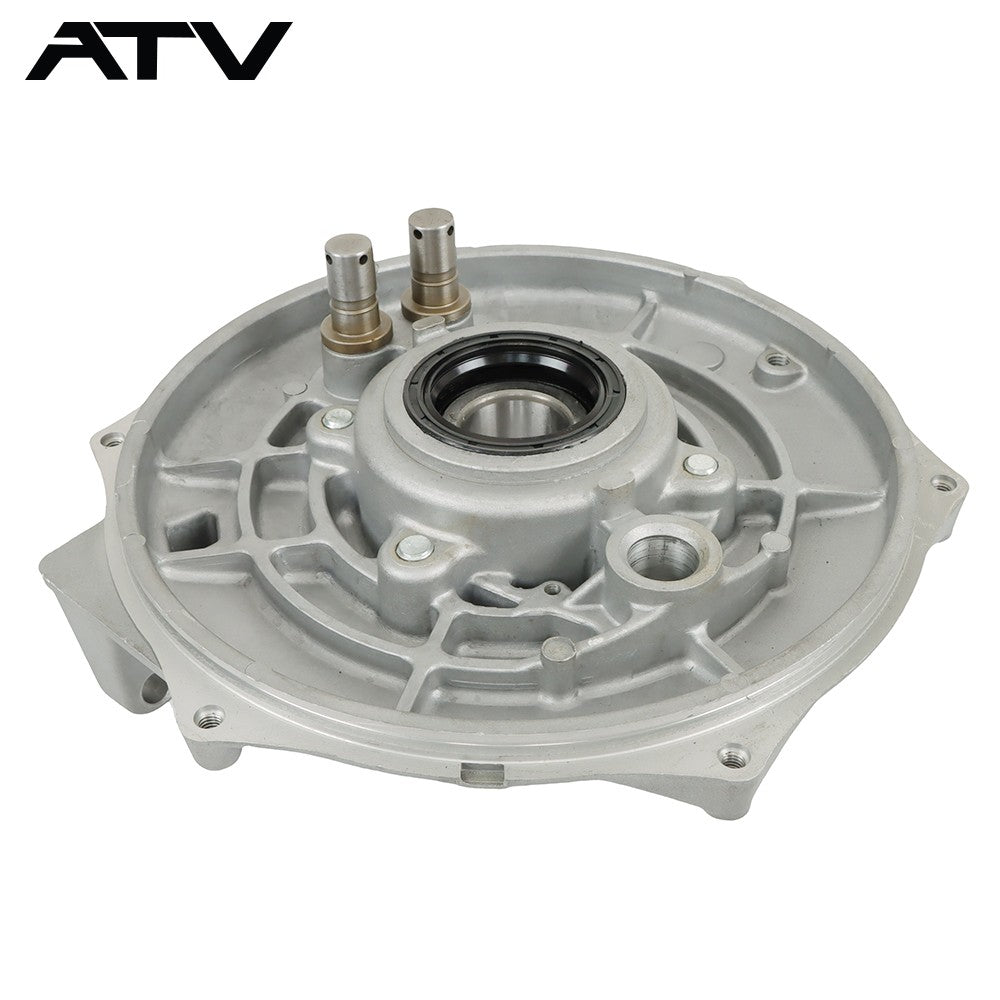

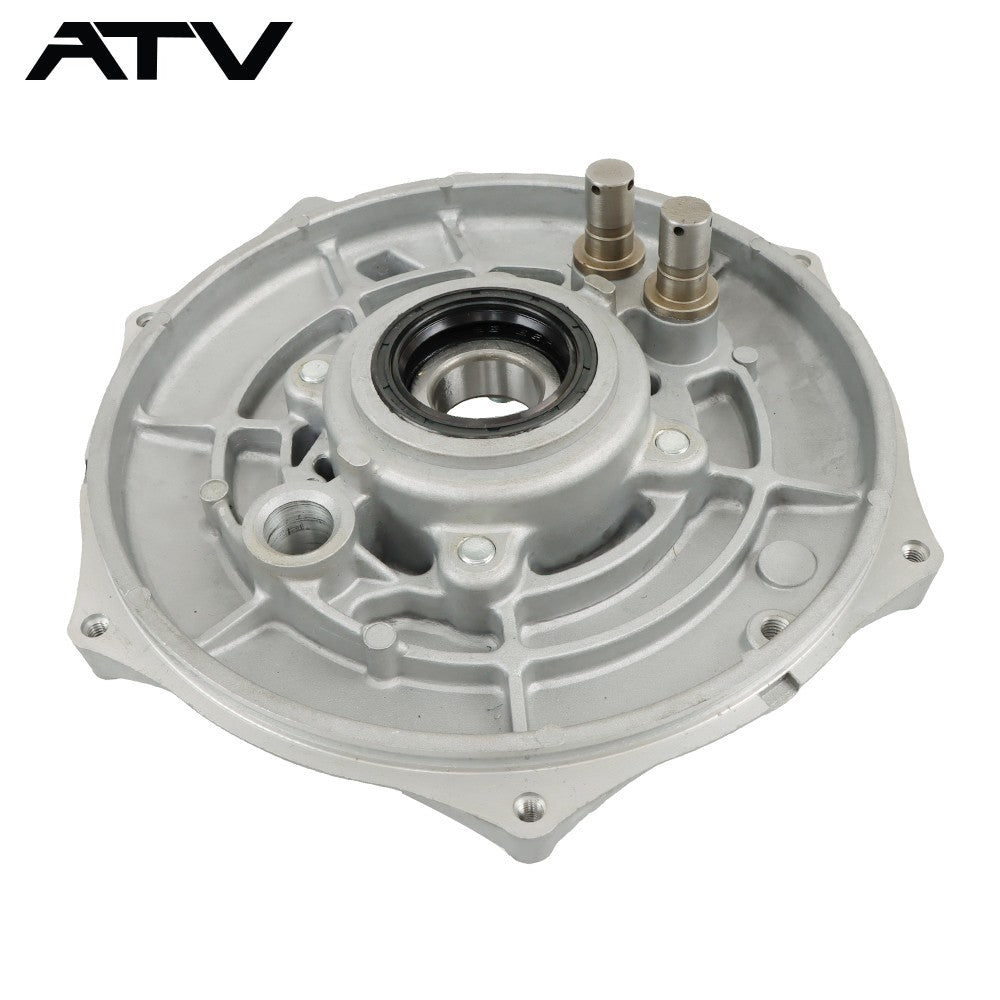

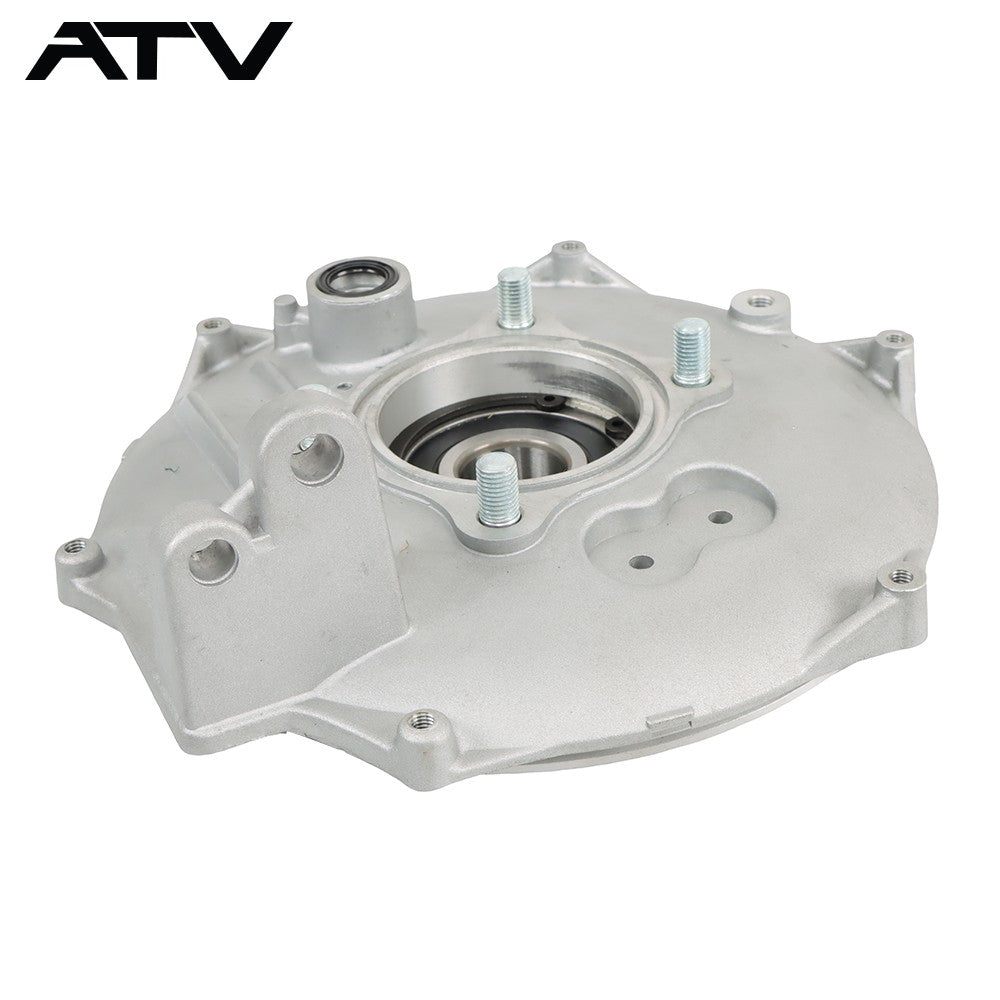

For Honda TRX500 TRX520 TRX420 2014-2021 Rear Brake Panel Set 43010-HR3-A20
$90.09
In Stock
$90.09
Sale price
$90.09
Regular price
Estimated delivery between
Let us Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I needed a replacement starter for my mower and wasn’t completely sure which one would fit. I sent them a message and they got back to me quickly, asked for my model information, and helped confirm the right part before I ordered. Everything was handled professionally and the communication was great. Very happy with the service.
Kevin C. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
Rear Brake Panel Set for Honda
This rear brake panel set for Honda TRX500, TRX520, and TRX420 is a direct replacement with OEM cross-reference number 43010-HR3-A20.
Overview
This is a rear brake panel set for Honda TRX500, TRX520, and TRX420 models, offering a direct replacement for worn or damaged rear brake panels. The rear brake panel set is designed to shield the brake shoe and supporting structure within the rear axle, and it is essential for maintaining the brake geometry. This rear brake panel set for the Honda TRX range keeps the braking assembly protected and properly aligned.
Built For Performance
- Direct replacement with OEM cross-reference 43010-HR3-A20
- Designed for a stable mount to the rear axle
- Constructed to handle the heat and stress of rear braking
- Keeps the rear brake shoes aligned within the drum
Fits These Machines
- for Honda TRX500 (2014-2021)
- for Honda TRX520 (2014-2021)
- for Honda TRX420 (2014-2021)
On-The-Job Use
- Used when rebuilding the rear brake system during ATV maintenance
- Works when replacing worn brake shoes or inspecting the drum surface
- Used while servicing the rear axle or brake backing on a Honda ATV
Specs At A Glance
| Part Number(s) | 43010-HR3-A20 |
| Product Type | Rear Brake Panel Set |
| Fitment | Honda TRX500, TRX520, TRX420 (2014-2021) |
Good To Know
Q: Is this brake panel set the same size as the original? A: It matches the original brake panel dimensions for Honda TRX500, TRX520, and TRX420 models from 2014-2021.
Q: What should I check before replacing the rear brake panel? A: Always inspect the brake shoes and mounting hardware, and confirm the OEM part number 43010-HR3-A20 to ensure matching fitment.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
