Timing Pin Injector Height Tool Barring Socket Steel Set for Cat 3406E C-15 C-16
  • Timing Pin Injector Height Tool Barring Socket Steel Set for Cat 3406E C-15 C-16
  • Timing Pin Injector Height Tool Barring Socket Steel Set for Cat 3406E C-15 C-16
  • Timing Pin Injector Height Tool Barring Socket Steel Set for Cat 3406E C-15 C-16
  • Timing Pin Injector Height Tool Barring Socket Steel Set for Cat 3406E C-15 C-16
  • Timing Pin Injector Height Tool Barring Socket Steel Set for Cat 3406E C-15 C-16
  • Timing Pin Injector Height Tool Barring Socket Steel Set for Cat 3406E C-15 C-16
  • Timing Pin Injector Height Tool Barring Socket Steel Set for Cat 3406E C-15 C-16
Timing Pin Injector Height Tool Barring Socket Steel Set for Cat 3406E C-15 C-16

Timing Pin Injector Height Tool Barring Socket Steel Set for Cat 3406E C-15 C-16

SKU: ZZ3H00885
$107.69 In Stock
$107.69
$107.69
Same day shipping if ordered by 4PM CST.
Material
Estimated delivery between
Industrial Retailer parts support representative

Let Northline Parts Do the Heavy Lifting for You!

Not sure which part you need? Our team can help you find the right replacement.

Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT

Live Chat: Available 24/7

Call 314-403-0109

I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks

Edward H. — Verified customer

Compatible Models

We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.

Compatible equipment / model

Timing Pin Injector Height Tool Barring Socket Steel Set for Cat

This timing pin, injector height tool, and barring socket steel set is a multi-piece kit used for engine service on Cat 3406E, C-15, and C-16 engines.

Overview

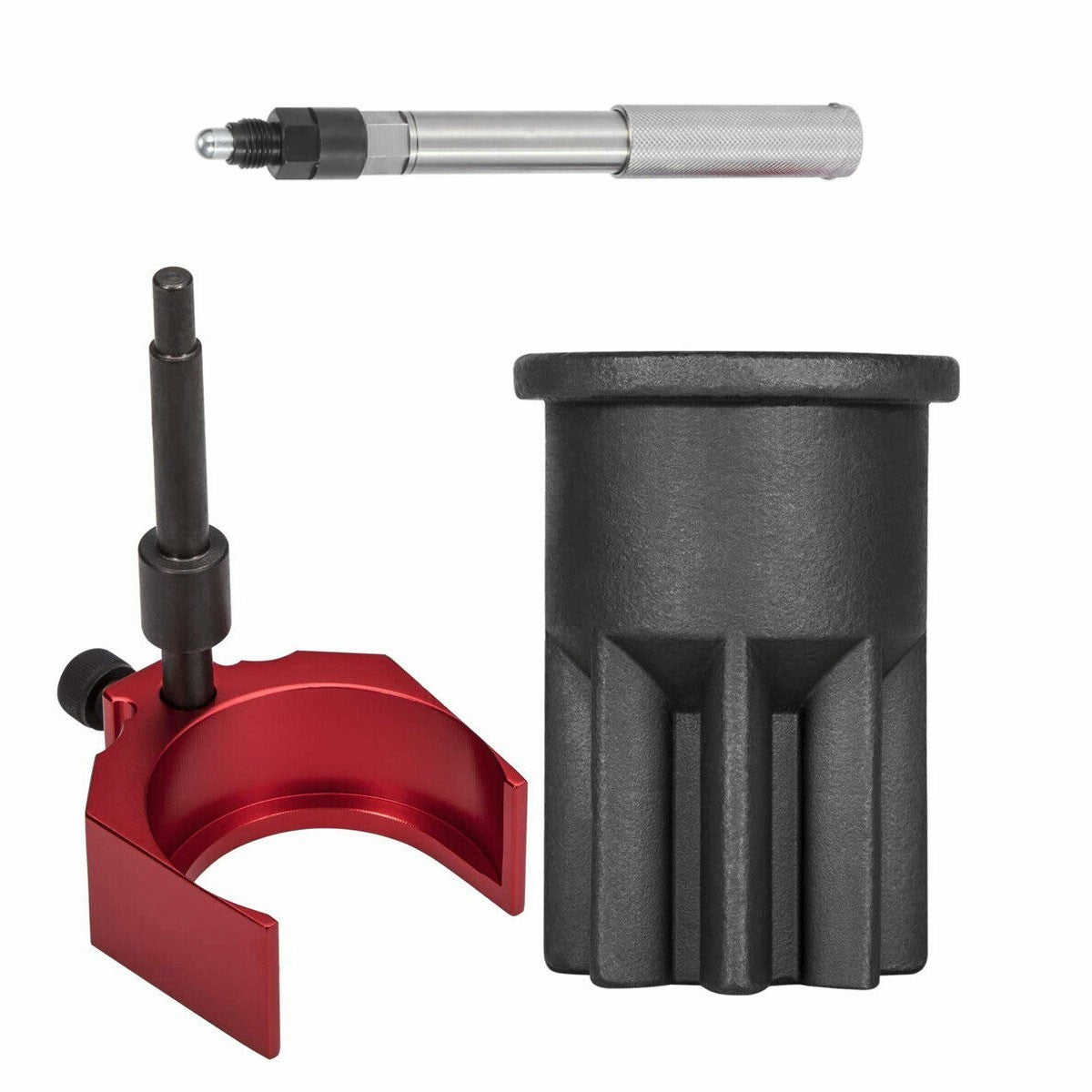

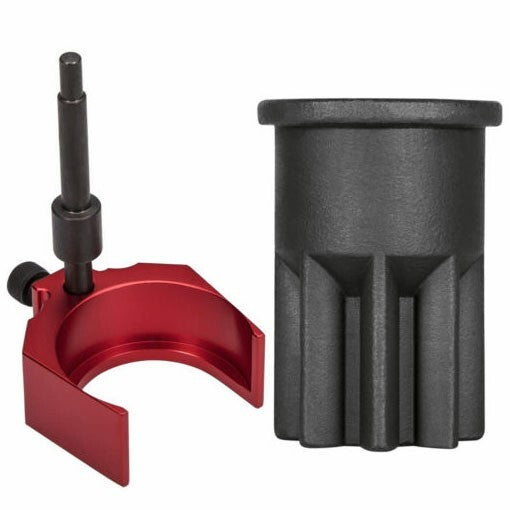

This timing pin injector height tool and barring socket steel set provides the essential tools for setting injection timing and checking injector height on Cat 3406E, C-15, and C-16 diesel engines. The set includes a steel timing pin, barring socket, and injector height gauge to assist with precise adjustments during maintenance or rebuild work. Designed for Cat engines, this kit simplifies the process of aligning the crankshaft and verifying injector protrusion heights.

Built For Performance

  • Steel construction for strength and durability during repeated use
  • Includes timing pin for precise crankshaft positioning
  • Includes barring socket for rotating the engine by hand
  • Includes injector height tool for accurate protrusion measurement
  • Compatible with Cat 3406E, C-15, and C-16 engine families

Fits These Machines

  • for Cat 3406E Engines
  • for Cat C-15 Engines
  • for Cat C-16 Engines

On-The-Job Use

  • Setting static injection timing during engine rebuilds or top-end overhauls
  • Measuring injector height to ensure proper protrusion before installing injectors
  • Barring the engine over manually for compression checks or valve adjustments

Specs At A Glance

Material Steel
Application Timing pin, injector height tool, barring socket
Compatible Engines for Cat 3406E, C-15, C-16

Good To Know

Q: Is this tool set specific to Cat engines? A: Yes, the timing pin, barring socket, and injector height tool are designed to fit the specific bolt patterns and measurements used on Cat 3406E, C-15, and C-16 engines.

Q: Can I use this set for other engine brands? A: No, the tolerances and mounting points are specific to Cat engines, so using it on other brands could lead to incorrect timing or height readings.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
